Disassembly
2 - 10 Removing the Optical Device
2.Disassembly
Removing the Optical Device
1. Turn off the computer, remove the battery (page 2 - 5) and turn it over.
2. Locate the hard disk bay cover and remove screws - , and remove the bay cover .
3. Remove screw
and use the screwdriver to push the optical device(s) out of the computer at point .
1 4 5
6 8 7
1
4 3
a.
b.
2
c.
d.
8
5
6
7
5. Socket Cover
8. Optical Device
•4 Screws

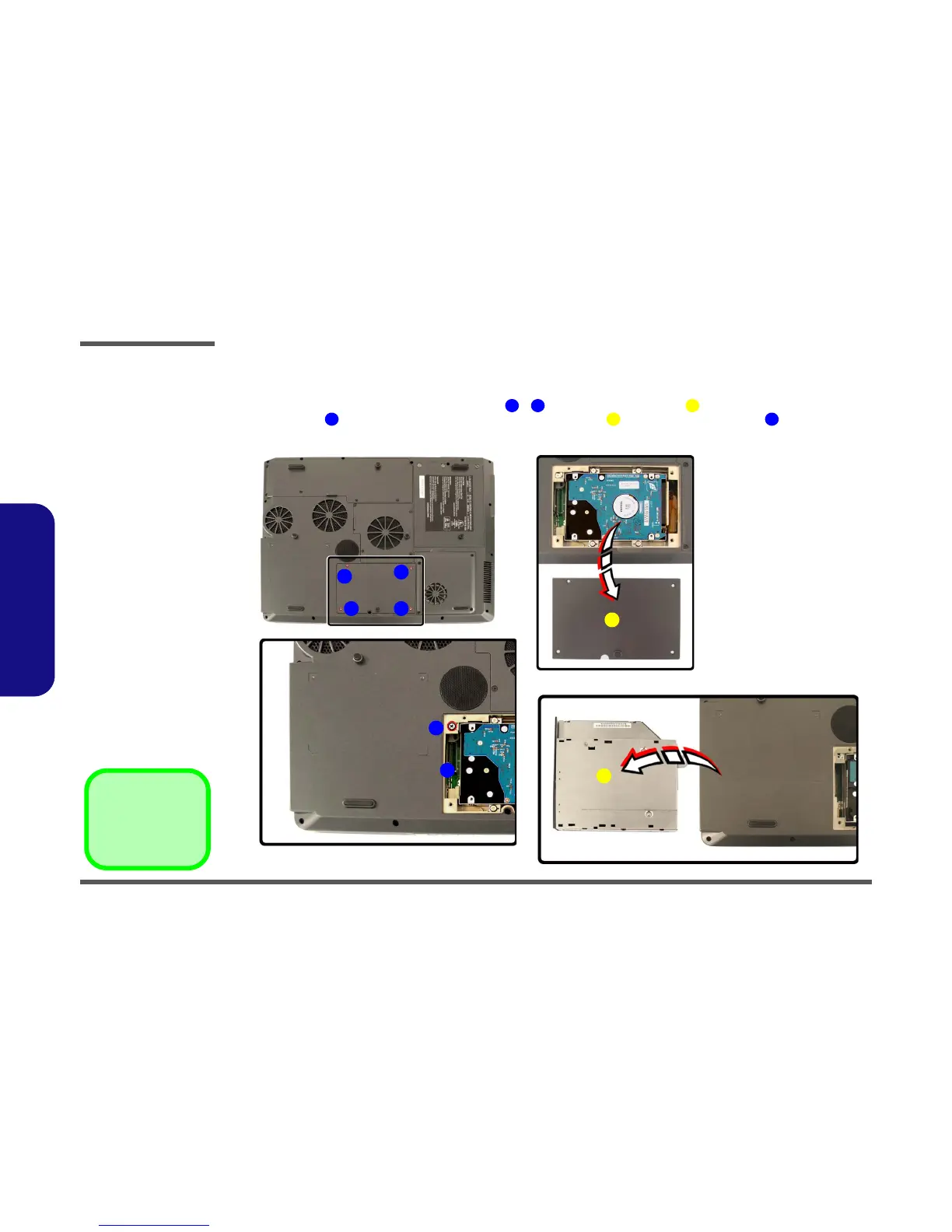

Figure 2 - 6
Optical Device
Removal
a. Remove the 4 screws.
b. Remove the cover.
c. Remove the screw.
d. Push the optical de-
vice(s) out.
To Next Page
