Disassembly
2 - 16 Removing the Wireless LAN/WLAN & Bluetooth Combo Module
2.Disassembly
Removing the Wireless LAN/WLAN & Bluetooth Combo Module
1. Turn off the computer, remove the battery (page 2 - 5) and the keyboard and shielding plate (page 2 - 13).
2. Carefully disconnect the antenna cable at point .
3. Gently pull the two release latches & on the sides of the socket in the direction indicated by the arrows.
4. The module will pop-up, and you can remove it.
1
2 3
4

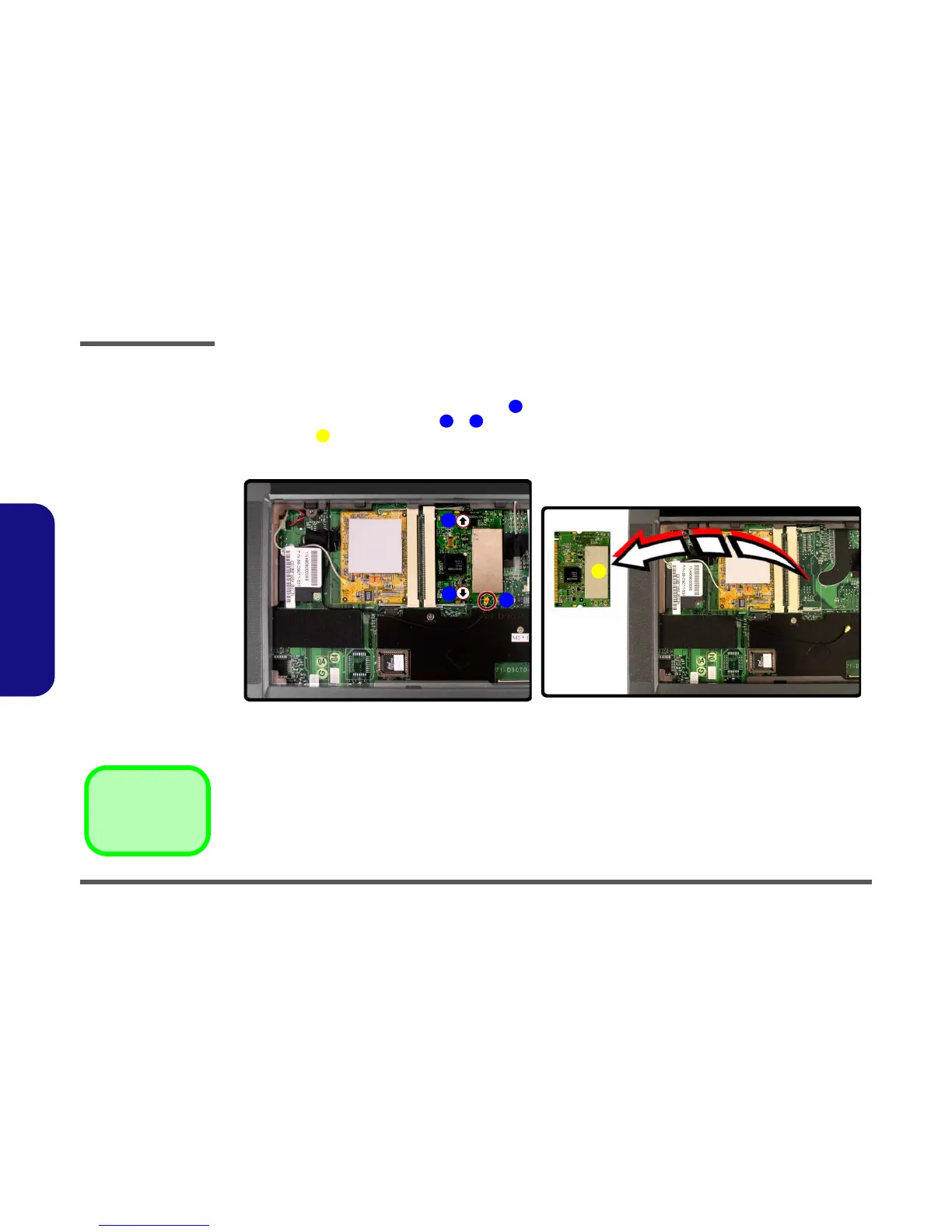

Figure 2 - 12
Wireless LAN/WLAN
& Bluetooth Combo
Module Removal
a. Disconnect the cable and
pull the release latches.
b. Remove the module.
a.
4
2
1
3
b.
4. WLAN or WLAN &
Bluetooth Combo
Module
To Next Page
