Clevo D900T - Mainboard Overview - Top (Connectors)

Introduction
Mainboard Overview - Top (Connectors) 1 - 11
1.Introduction
Mainboard Overview - Top (Connectors)

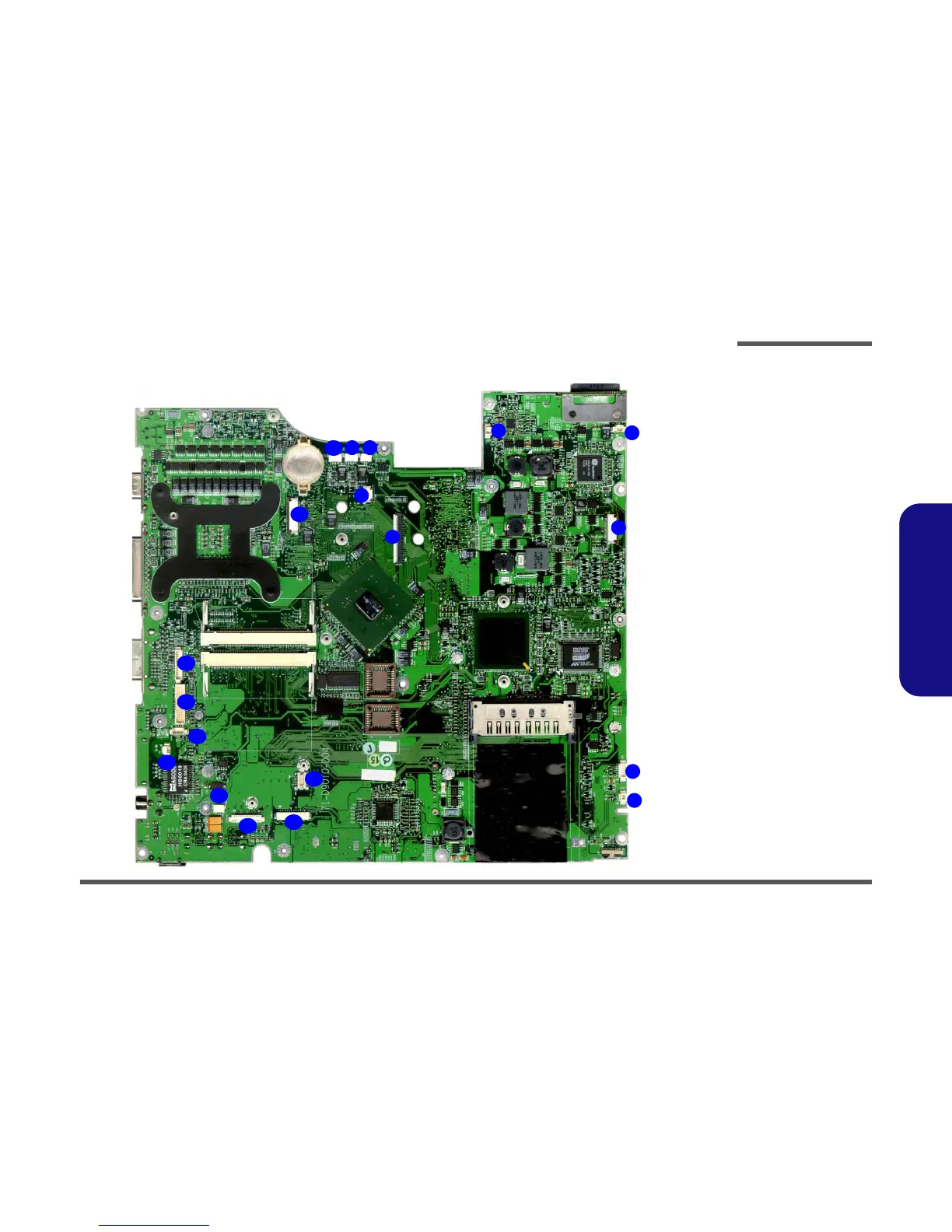

Figure 1 - 7
Mainboard Top
Connectors
1. Speaker (JSPK5)
2. Card
Reader(JCR1)
3. Audio DJ (J3)
4. Speaker (JSPK4)
5. Speaker (JSPK3)
6. Keyboard
(JINTKB1)
7. Touchpad (JTP1)
8. Speaker (JSPK2)
9. Fan (JFAN2)
10.Fan (JFAN1)
11. Swiitchboard &
Hot Keys(JSW1)
12.LED (JLED1)
13.LCD & Inverter
(JLCD1)
14.PC Camera
(JCCD1)
15.Modem Cable
(CN1)
16.Speaker (JSPK1)
17.IEEE1394
(J1394AB1)
18.Audio Board
(JAUDIO1)
19.Modem (JMDC1)
1
2
3
4
5
6
7
89
10
11
12
13
14
15
16
17
18
19
