Clevo N240BU - Mainboard Overview - Top (Connectors)

Introduction
1 - 10 Mainboard Overview - Top (Connectors)
1.Introduction

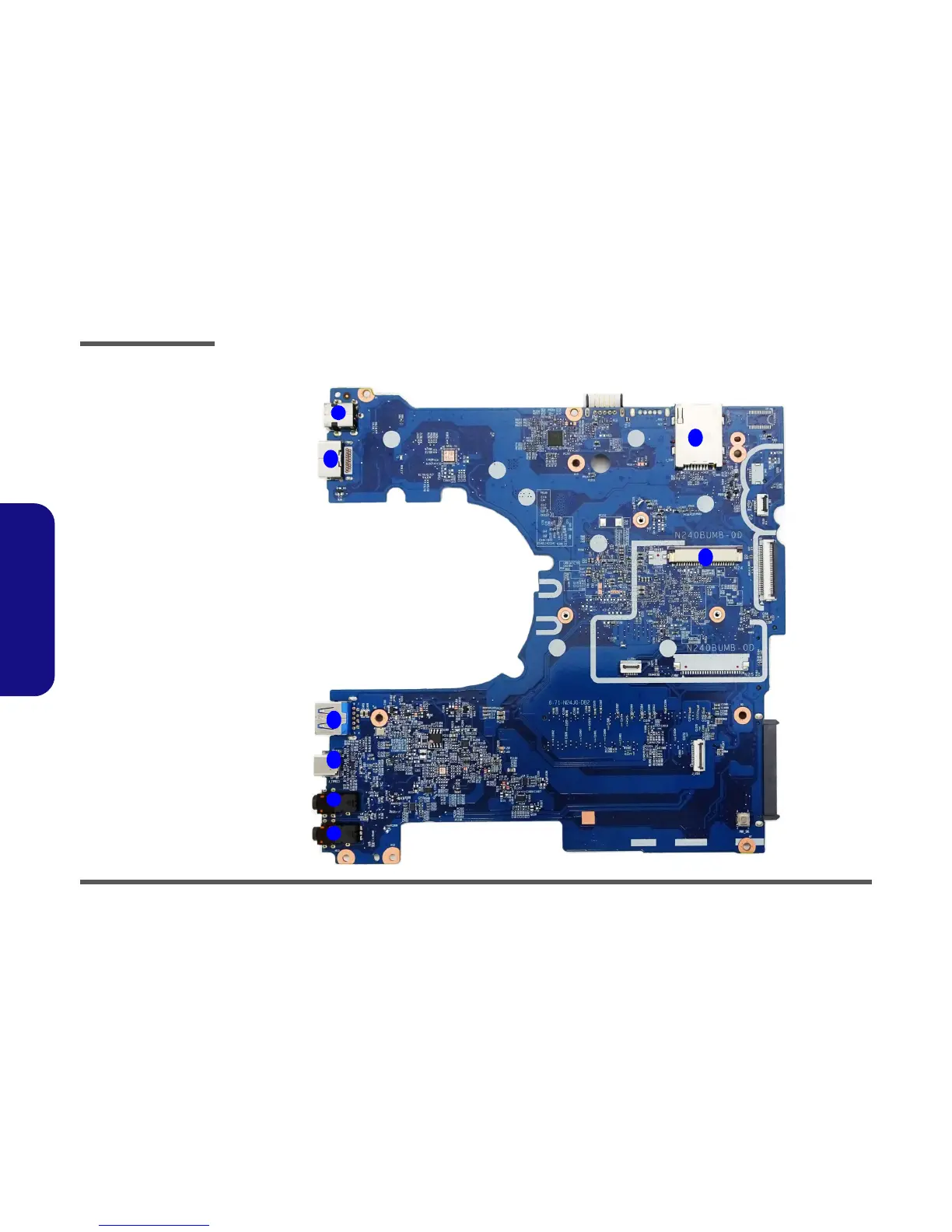

Mainboard Overview - Top (Connectors)
Figure 9
Mainboard Top
Connectors
1. DC-In Jack
2. HDMI-Out Port
3. USB Port 3.0/3.1
Port
4. USB Port 3.0/3.1
Type C Port
5. Microphone-In
Jack
6. Headphone-Out
Jack
7. SIM Card Reader
8. Keyboard Cable
Connector
11
1
2
5
3
8
6
4
7
