Clevo N240BU - Mainboard Overview - Bottom (Connectors)

Introduction
Mainboard Overview - Bottom (Connectors) 1 - 11
1.Introduction

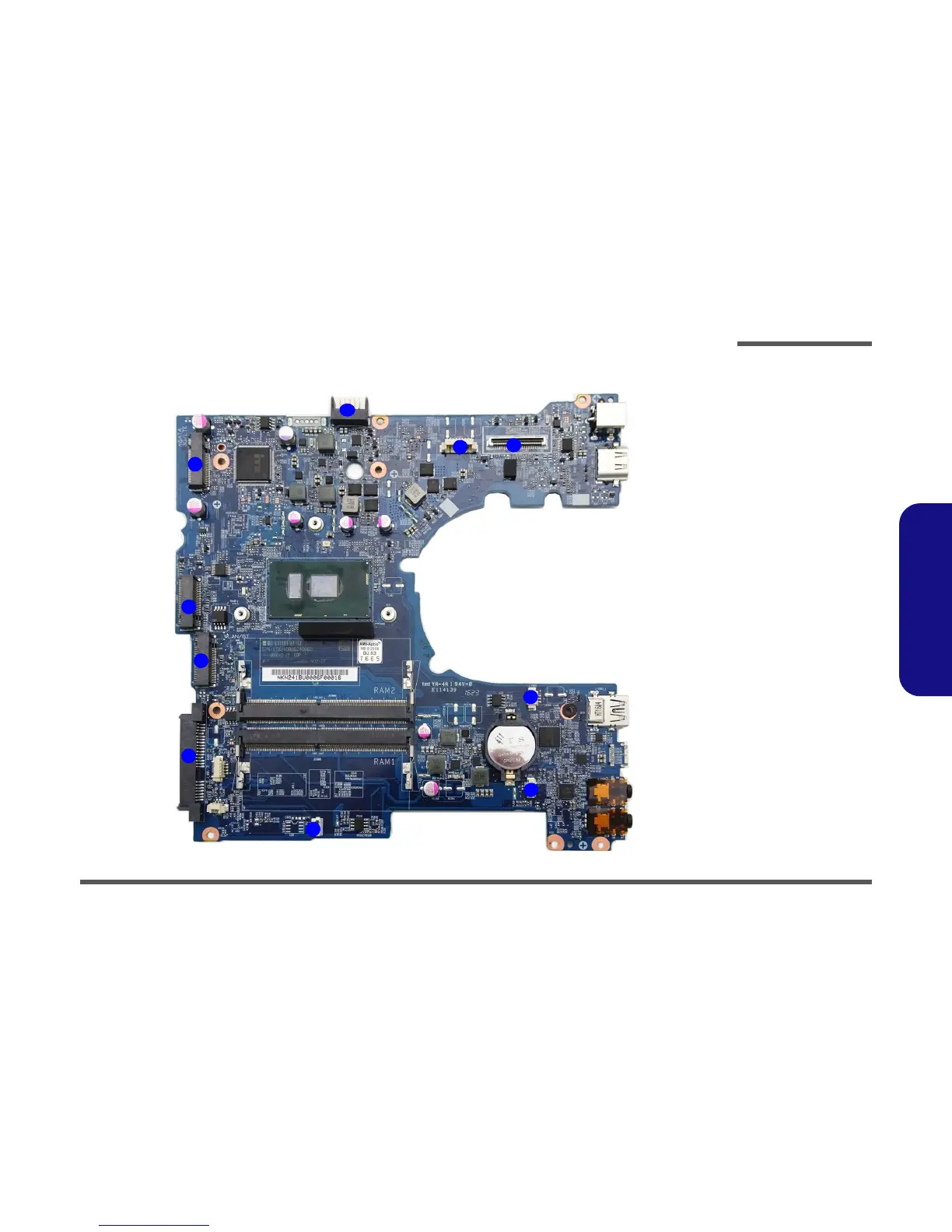

Mainboard Overview - Bottom (Connectors)
Figure 10
Mainboard Bottom
Connectors
1. 3G/4G Card
Connector
2. M.2 Card
Connectort
3. WLAN Connector
4. HDD Connector
5. Touchpad
Connector
6. Speaker Connector
7. Fan Connector
8. LCD Cable
Connector
9. CCD Connector
10.Battery Connector
10
1
2
4
6
7
3
5
8
9
