Disassembly
Removing the CCD 2 - 17
2.Disassembly
6. Remove the LCD front cover (Figure 11e).
7. Disconnect the cable (Figure 11f).
8. Remove the CCD module (Figure 11g).
9. Reverse the process to install a new CCD module.
13
14
15
e.
13
g.
f.
15
14

15. CCD Module

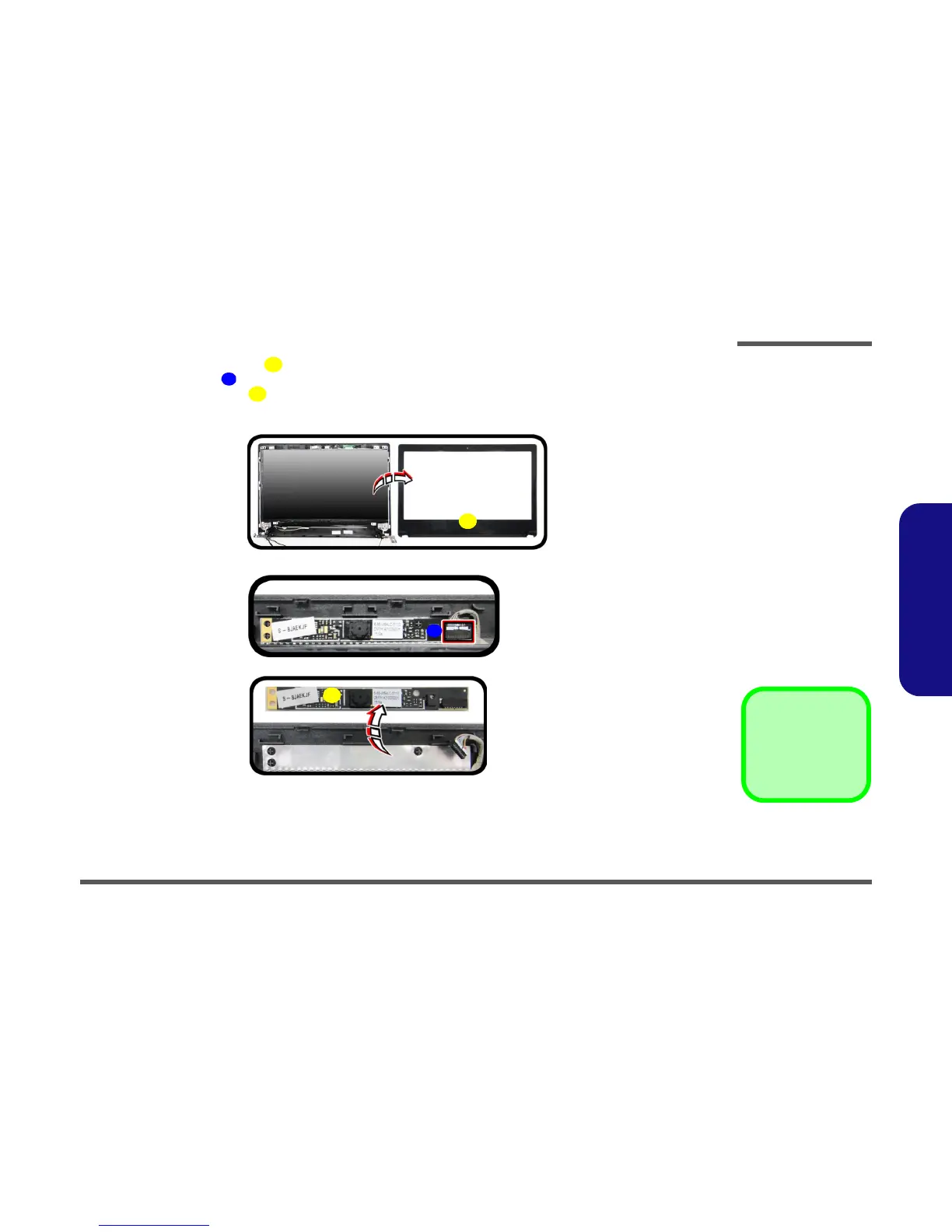

Figure 11
CCD Removal
(cont’d.)
e. Remove the LCD front
cover.
f. Disconnect the cable.
g. Remove the CCD mod-
ule.
