Disassembly
Removing the Wireless LAN Module 2 - 11
2.Disassembly
Removing the Wireless LAN Module
1. Turn off the computer, turn it over to remove the battery (page 2 - 5).
2. The Wireless LAN module will be visible at point on the mainboard (Figure 6a).
3. Carefully disconnect the cables & , and then remove the screw (Figure 6b)
4. The Wireless LAN module (Figure 6c) will pop-up, and you can remove it from the computer.
5. Reverse the process to install a new module (do not forget to replace all the screws and bottom cover).
5.Wireless LAN Module
•1 Screw

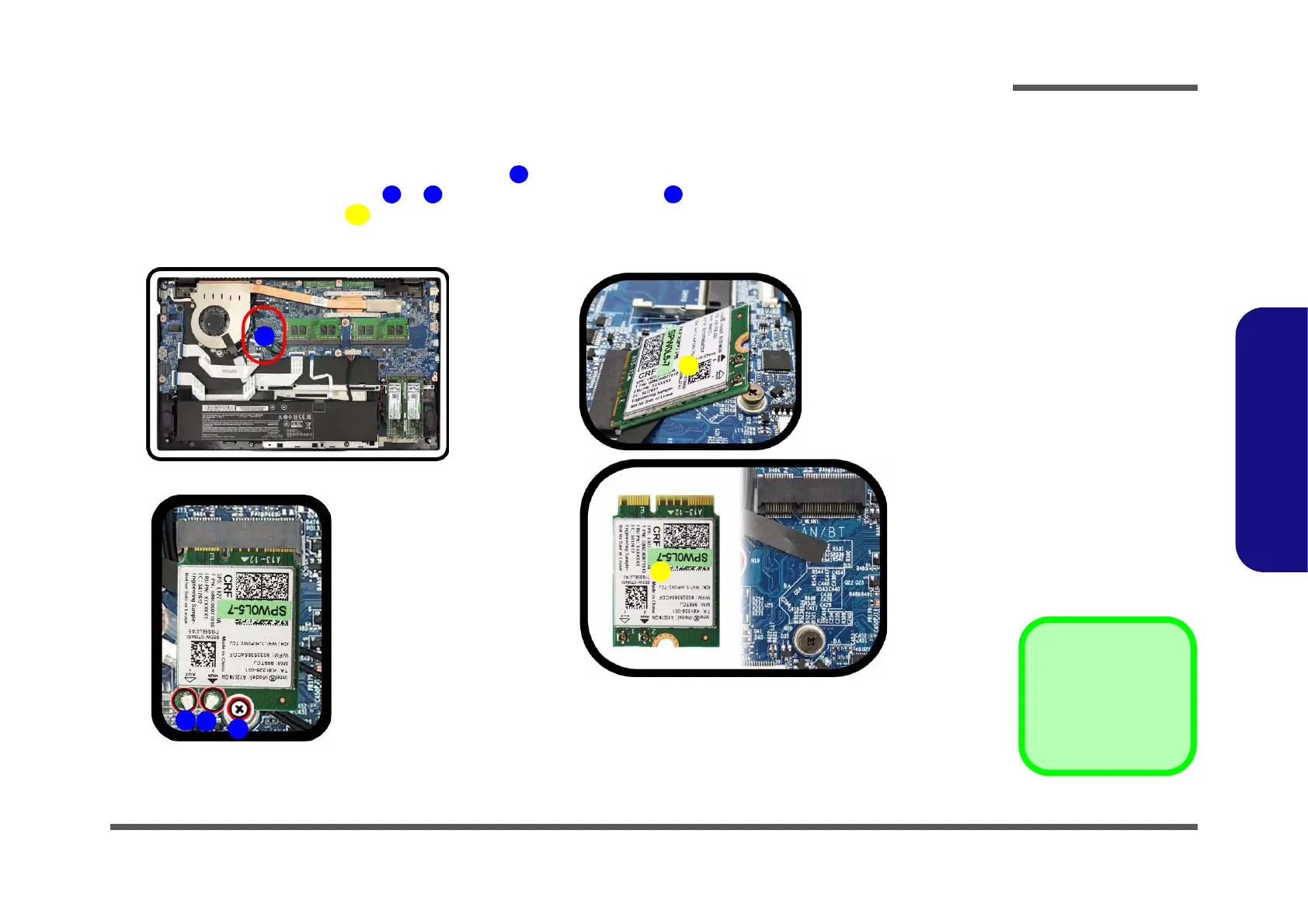

Figure 6
Wireless LAN
Module Removal
a. Locate the WLAN.
b. Disconnect the cable
and remove the screw.
c. The WLAN module will
pop up and lift it out of
the computer.
Note: Make sure you
reconnect the antenna
cable to the “1 + 2”
socket (Figure 6b).
To Next Page
