Clevo NS50MU Series User Manual

Disassembly
2 - 16 Removing the CCD
2.Disassembly
5. Disconnect the cable from the locking collar socket by using a flat-head screwdriver to pry the locking collar
pins
away from the base (Figure 10c).
6. Remove the CCD module (Figure 10d).
7. Reverse the process to install a new CCD module.
6
7
8
d.
c.
8
6
7

8. CCD Module
Figure 10
CCD Removal
(cont’d)

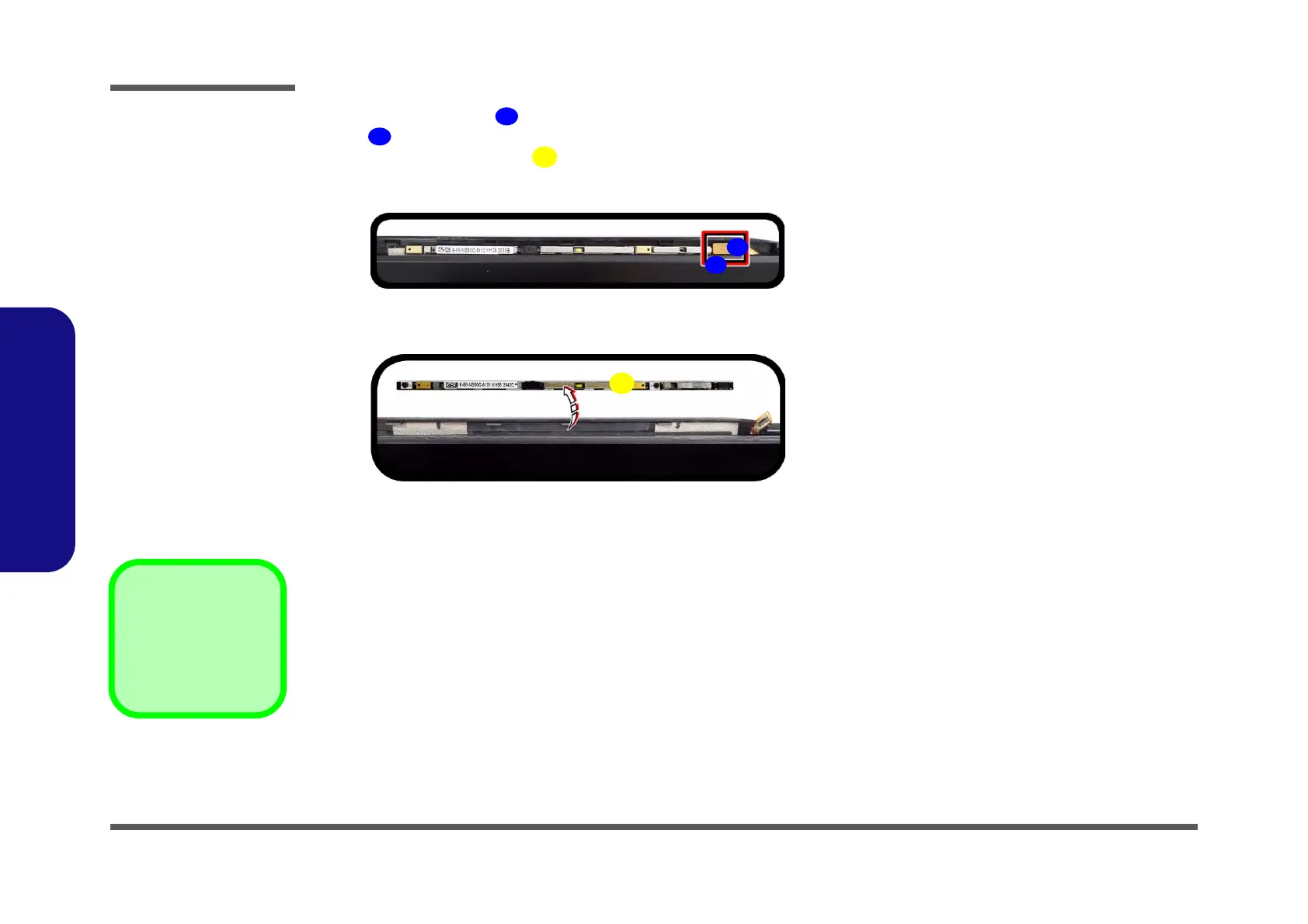

c. Disconnect the cable
from the locking collar
socket.
d. Remove the CCD mod-
ule.
