Removing the CCD
1. Turn off the computer, turn it over to remove the battery (page 2 - 5).
2. Lay the computer down on a flat surface with the top case up forming a 90 degree angle.
3. Carefully run your fingers around the inner frame of the LCD panel to lift at points - as indicated by the
arrows (Figure 9a).
4. Remove the LCD front cover (Figure 9b).

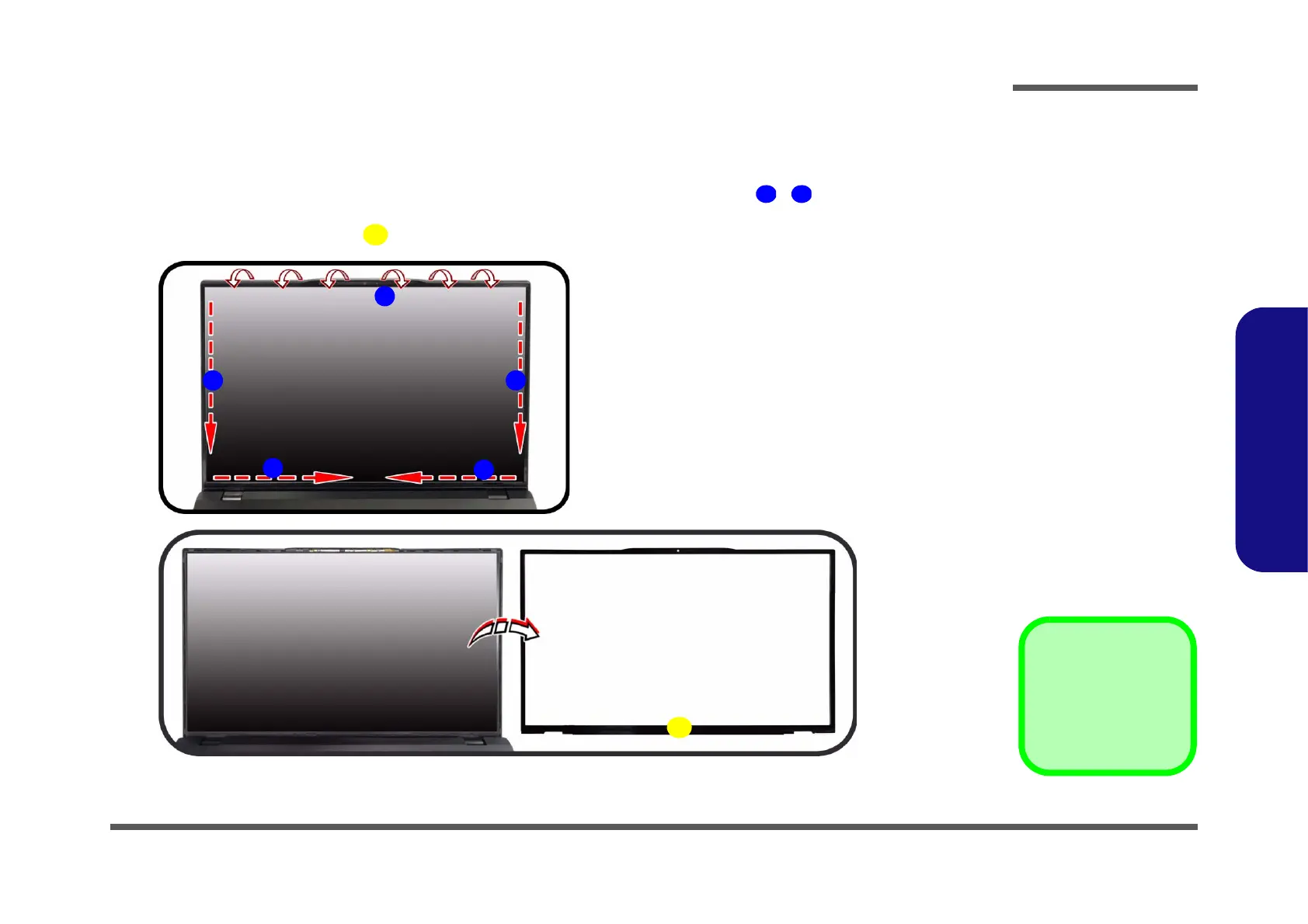

Figure 9
CCD Removal
a. Carefully release the in-
ner frame of the LCD
panel at the points indi-
cated by the arrows.
b. Remove the LCD front
cover.
