Disassembly
2 - 14 Removing the M.2 SSD Module
2.Disassembly
M.2 SSD-2 Removal Procedure
1. Turn off the computer, turn it over to remove the battery (page 2 - 5).
2. The M.2 SSD module will be visible at point on the mainboard (Figure 8a).
3. Remove the screw
(Figure 8b)
4. The M.2 SSD module (Figure 8c) will pop-up, and you can remove it from the computer.
5. Reverse the process to install a new module (do not forget to replace the thermal pad, screws and bottom cover).
3.M2 PCIE Module only
•1 Screw

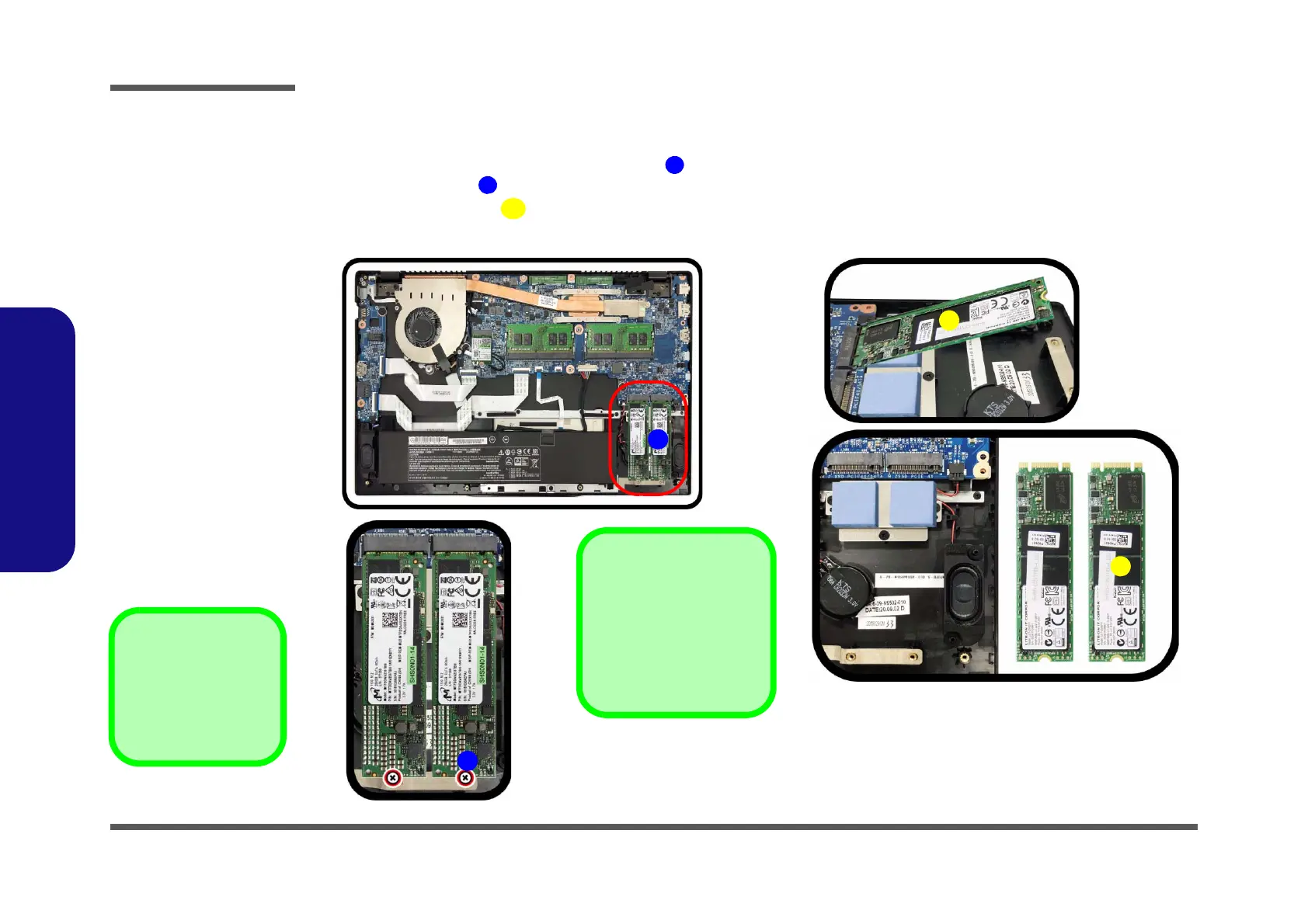

Figure 8
M.2 SSD-2 Module
Removal
a. Locate the M.2 SSD.
b. Remove the screw.
c. The M.2 SSD module
will pop up.
b.
c.
a.
2
3
1
3
Thermal Pad
Make sure to place the
thermal pad’s adhesive
side down on the main-
board’s surface as illus-
trated.
To Next Page
