D03A_Alex
D03A_Alex
ADD C695 to slove figh-frequency
Stanley 5/25
ADD PQ20.1 to VIN
5/8 Stanley
MXM 3.0
3VRUN(1A)--3.3V
PWR_SRC(10A)--7-20V
5VRUN(2.5A)--5V
CLOSE TO MXM CONN.CLOSE TO MXM PIN E1 CLOSE TO MXM PIN E2 CLOSE TO MXM CONN.
3A
2A2A
3A
nVidia Recommend,12/22
14A
8A
Battery
mode®É,ÁקK±a¹q´¡©ÞLCD
cable and VGA card§@·~,
®e©ö¿NÃaMXM VGA ¥d.
Max: 0.5inch
12/1
To slove OFF-MODE leaka ge
2/29 Stanley
PQ20
MEP4435Q8
4
62
5
73
1
8
¦@¥ÎBAT SMBUS
¥ÑBATºÝVDD3 PULL-UP
2/29 Stanley
nVidia Recommend,12/22
PEG_TXP15
PEG_RXN15
PEG_TXP14
PEG_TXN13
PEG_RXP15
PEG_TXN15
PEG_TXP12
PEG_RXP12
PEG_RXN14
PEG_RXN10
PEG_RXN9
PEG_RXP10
PEG_RXP9
TH_ALERT#2
PEG_RXN8
PEG_TXN9
PEG_TXP9
PEG_TXN8
PEG_TXN10
PEG_TXP10
SMC_VGA_THERM_R2
SMD_VGA_THERM_R2
PEG_TXP8
MXM2_RST#
PEG_RXP8
MXM2_RST#
VGA_PWRGD2
SMD_VGA_THERM_R2
SMC_VGA_THERM_R2
PEG_TXP13
PEX_STD_SW#2
PEG_RXN13
PEG_RXN12
PEG_RXP14
PEG_RXP13
TH_O VERT#2
PEG_TXN11
PEG_TXP11
PEG_TXN14
PEG_RXN11
PEG_RXP11
PEG_TXN12
PJ24
OPEN-3mm
1 2
S
D
G
Q21A
MTDN7002ZHS6R
2
61
H8
H8_0D4_3
C539
4.7U_25V_X5R_08
S
D
G
Q43A
MTDN7002ZHS6R
2
61
R303 20K_04
S
D
G
Q21B
MTDN7002ZHS6R
5
34
R644 10K_04
C282
4.7U_25V_X5R_08
C283
4.7U_25V_X5R_08
H5
H8_0D4_3
R634*2.2K_04
R297
100K_04
R645 *0_04
C295
4.7U_25V_X5R_08
R643 10K_04
R633*2.2K_04
R583 0_04
12/1
R635 *2.2K_04
R299
100K_04

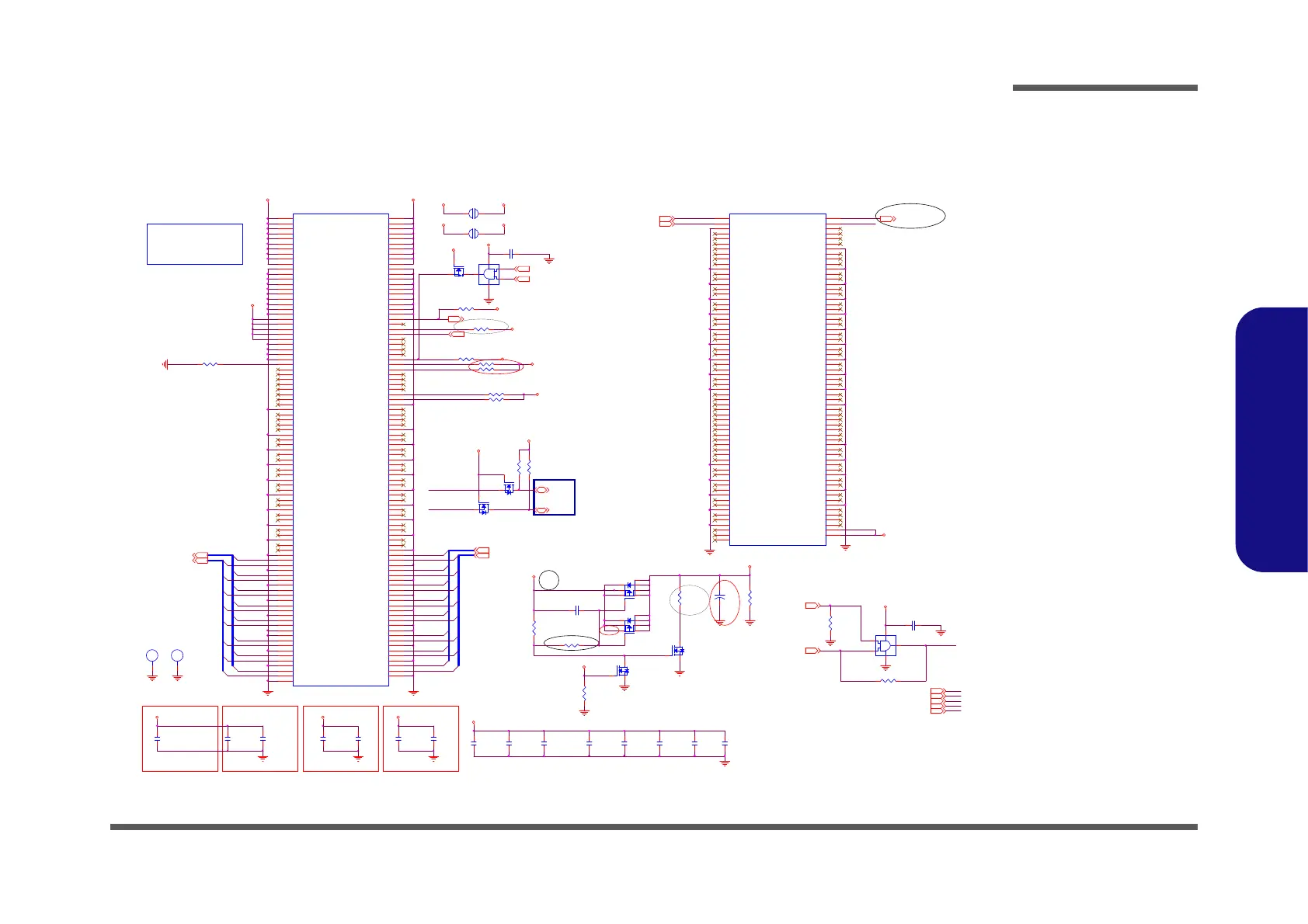

MXM 3.0 MODULE BOARD CONNECTOR
J_MXM2A
91782-3140M-NV-01
GND
E3-10
5V
1
5V
3
5V
5
5V
7
5V
9
GND
11
GND
13
GND
15
GND
17
PEX_STD_SW#
19
VGA_DI SABLE#
21
PNL_PWR_EN
23
PNL_BL_EN
25
PNL_BL_PWM
27
HDMI_CEC
29
DVI_HPD
31
LVDS_DDC_DAT
33
LVDS_DDC_CLK
35
GND
37
OEM
39
OEM
41
OEM
43
OEM
45
GND
47
PEX_RX15#
49
PEX_RX15
51
GND
53
PEX_RX14#
55
PEX_RX14
57
GND
59
PEX_RX13#
61
PEX_RX13
63
GND
65
PEX_RX12#
67
PEX_RX12
69
GND
71
PEX_RX11#
73
PEX_RX11
75
GND
77
PEX_RX10#
79
PEX_RX10
81
GND
83
PEX_RX9#
85
PEX_RX9
87
GND
89
PEX_RX8#
91
PEX_RX8
93
GND
95
PEX_RX7#
97
PEX_RX7
99
GND
101
PEX_RX6#
103
PEX_RX6
105
GND
107
PEX_RX5#
109
PEX_RX5
111
GND
113
PEX_RX4#
115
PEX_RX4
117
GND
119
PEX_RX3#
121
PEX_RX3
123
GND
125
PWR_SRC
E2-5
GN D
E4-10
PRSNT_R#
2
WAKE#
4
PWR_GOOD
6
PWR_EN
8
RSVD
10
RSVD
12
RSVD
14
RSVD
16
PWR_LEVEL
18
TH_OVERT#
20
TH_ALERT#
22
TH_PWM
24
GPIO0
26
GPIO1
28
GPIO2
30
SMB_DAT
32
SMB_CLK
34
GN D
36
OEM
38
OEM
40
OEM
42
OEM
44
GN D
46
PEX_TX15#
48
PEX_TX15
50
GN D
52
PEX_TX14#
54
PEX_TX14
56
GN D
58
PEX_TX13#
60
PEX_TX13
62
GN D
64
PEX_TX12#
66
PEX_TX12
68
GN D
70
PEX_TX11#
72
PEX_TX11
74
GN D
76
PEX_TX10#
78
PEX_TX10
80
GN D
82
PEX_TX9#
84
PEX_TX9
86
GN D
88
PEX_TX8#
90
PEX_TX8
92
GN D
94
PEX_TX7#
96
PEX_TX7
98
GN D
100
PEX_TX6#
102
PEX_TX6
104
GN D
106
PEX_TX5#
108
PEX_TX5
110
GN D
112
PEX_TX4#
114
PEX_TX4
116
GN D
118
PEX_TX3#
120
PEX_TX3
122
GN D
124
GND
133
PEX_RX2#
135
PEX_RX2
137
GND
139
PEX_RX1#
141
PEX_RX1
143
GND
145
PEX_RX0#
147
PEX_RX0
149
GN D
134
PEX_TX2#
136
PEX_TX2
138
GN D
140
PEX_TX1#
142
PEX_TX1
144
GN D
146
PEX_TX0#
148
PEX_TX0
150
GN D
152
GND
151
PWR_SRC
E2-1
PWR_SRC
E2-2
PWR_SRC
E2-3
PWR_SRC
E2-4
PWR_SRC
E2-6
PWR_SRC
E2-7
PWR_SRC
E2-8
PWR_SRC
E2-9
PWR_SRC
E2-10
GN D
E4-1
GN D
E4-2
GN D
E4-3
GN D
E4-4
GN D
E4-5
GN D
E4-6
GN D
E4-7
GN D
E4-8
GN D
E4-9
PWR _SRC
E1-1
PWR _SRC
E1-2
PWR _SRC
E1-3
PWR _SRC
E1-4
PWR _SRC
E1-5
PWR _SRC
E1-6
PWR _SRC
E1-7
PWR _SRC
E1-8
PWR _SRC
E1-9
PWR _SRC
E1-10
GND
E3-1
GND
E3-2
GND
E3-3
GND
E3-4
GND
E3-5
GND
E3-6
GND
E3-7
GND
E3-8
GND
E3-9
R640 2.2K_04
C321
0.01u_50V_X7R_04
C676
*4.7U_25V_08
U34
*74AHC1G08GW
1
2
5
4
3
R292
*100K_04
R639 2.2K_04
C528
*4.7U_25V_08
R577
*100K_04
C276
*0.01u_50V_X7R_04
U38
MC74VHC1G08DFT2G
1
2
5
4
3
R636 *2.2K_04
C300
4.7U_25V_X5R_08
C298
4.7U_25V_X5R_08
MXM 3.0 MODULE BOARD CONNECTOR
J_MXM2B
91782-3140M-NV-01
PEX_REFCLK#
153
PEX_REFCLK
155
GND
157
RSVD
159
RSVD
161
RSVD
163
RSVD
165
RSVD
167
LVDS_UCLK#
169
LVDS_UCLK
171
GND
173
LVDS_UTX3#
175
LVDS_UTX3
177
GND
179
LVDS_UTX2#
181
LVDS_UTX2
183
GND
185
LVDS_UTX1#
187
LVDS_UTX1
189
GND
191
LVDS_UTX0#
193
LVDS_UTX0
195
GND
197
DP_C_L0#
199
DP_C_L0
201
GND
203
DP_C_L1#
205
DP_C_L1
207
GND
209
DP_C_L2#
211
DP_C_L2
213
GND
215
DP_C_L3#
217
DP_C_L3
219
GND
221
DP_C_AUX#
223
DP_C_AUX
225
RSVD
227
RSVD
229
RSVD
231
RSVD
233
RSVD
235
RSVD
237
RSVD
239
RSVD
241
RSVD
243
RSVD
245
RSVD
247
RSVD
249
GND
251
DP_A_L0#
253
DP_A_L0
255
GND
257
DP_A_L1#
259
DP_A_L1
261
GND
263
DP_A_L2#
265
DP_A_L2
267
GND
269
DP_A_L3#
271
DP_A_L3
273
GND
275
DP_A_AUX#
277
DP_A_AUX
279
PRSNT_L#
281
CLK_REQ#
154
PEX_RST#
156
VGA_DDC_D AT
158
VGA_DDC_C LK
160
VGA_VSYNC
162
VGA_HSY NC
164
GND
166
VGA_RED
168
VGA_GREEN
170
VGA_BLUE
172
GND
174
LVDS_LCLK#
176
LVDS_LCLK
178
GND
180
LVDS_LTX3#
182
LVDS_LTX3
184
GND
186
LVDS_LTX2#
188
LVDS_LTX2
190
GND
192
LVDS_LTX1#
194
LVDS_LTX1
196
GND
198
LVDS_LTX0#
200
LVDS_LTX0
202
GND
204
DP_D_L0#
206
DP_D_L0
208
GND
210
DP_D_L1#
212
DP_D_L1
214
GND
216
DP_D_L2#
218
DP_D_L2
220
GND
222
DP_D_L3#
224
DP_D_L3
226
GND
228
DP_D_AUX#
230
DP_D_AUX
232
DP_C_HPD
234
DP_D_HPD
236
RSVD
238
RSVD
240
RSVD
242
GND
244
DP_B_L0#
246
DP_B_L0
248
GND
250
DP_B_L1#
252
DP_B_L1
254
GND
256
DP_B_L2#
258
DP_B_L2
260
GND
262
DP_B_L3#
264
DP_B_L3
266
GND
268
DP_B_AUX#
270
DP_B_AUX
272
DP_B_HPD
274
DP_A_HPD
276
3V3
278
3V3
280
PQ23
MEP4435Q8
4
62
5
73
1
8
C659 *0.1u_16V_Y5V_04
PJ17
OPEN-2mm
1 2
C299
*4.7U_25V_08
C603 *0.1u_16V_04
C675
4.7U_25V_X5R_08
R653 47K_04
Q44
MTN7002ZHS3
G
DS
S
D
G
Q43B
MTDN7002ZHS6R
5
34
PWR_SRC2
3VRUN2
3VRUN2
3.3VS
5VRUN2
PWR_SRC2 5VRUN2
3VRUN23.3VS
3.3VS
PWR_SRC2PWR_SRC2
5VS 5VRUN2
3VRUN2
3.3VS
3.3V
VIN
5V
3.3VS
5VS
3.3VS
PWR_SRC2
5VRUN2
3.3VS
GNDGND
MXM2_CLKREQ# 19
CLK_PCIE_MXM219
CLK_PCIE_MXM2#19
PEG_TXP[8..15] 2
PEG_RXN[8..15]2
PEG_RXP[8..15]2
5VS13,15,16,17,18,24,25,28,30,31,32,34,35,38,42,43,44
MXM2_PRSNT# 19,33
ALL_SYS_PWRGD 13,15,20,33,42
PEG_TXN[8..15] 2
3.3V2,3,6,13,15,18,19,20,22,23,24,25,29,31,34,38,39,40,41
3.3VS3,9,10,11,12,13,15,16,17,18,19,20,22,23,24,25,27,28,29,30,31,32,33,34,35,38,42,44,54
VIN13,15,37,38,39,40,42,43,44,47
SMC_BAT 33,47
5V13,25,27,29,31,36,38,39,40,41,44
DGPU_RST#13,22,33
VGA_TH ROTTLE 13,33
AC/BATL# 13,47
PLT_R ST#3,13,22,54
SMD_BAT 33,47
C320
0.01u_50V_X7R_04
R298
20K_04
+
C695
*330uF_25V
C315
0.1u_50V_Y5V_06
C322
0.1u_50V_Y5V_06
C314
0.1u_50V_Y5V_06
To Next Page
