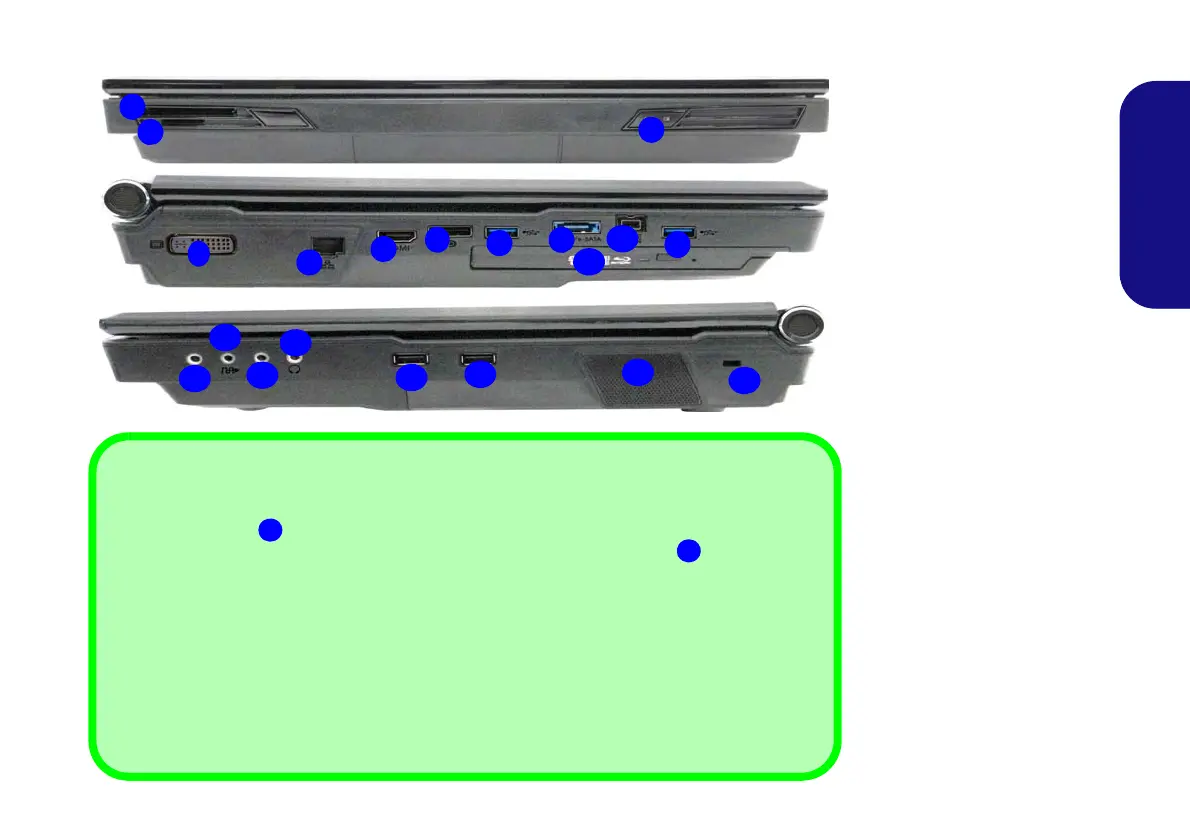

Figure 9
Front, Left & Right Views
1. LED Power Indicators
2. ExpressCard Slot (54/34)
3. Multi-In-1 Card Reader
4. DVI-Out Port
5. RJ-45 LAN Jack
6. HDMI-Out Port
7. DisplayPort
8. USB 3.0 Ports
9. Combined eSATA/Powered
USB 3.0 Port (See Below)
10. Mini-IEEE 1394b Port
11. Optical Device Drive Bay
12. Line-In Jack
13. S/PDIF-Out Jack
14. Microphone-In Jack
15. Headphone-In Jack
16. USB 2.0 Ports
17. Sub Woofer
18. Security Lock Slot
3
6
4
5
7
2
1
Front
Left
Right
12
17
16
15
14
10
18
11
USB
The USB 3.0 ports
are colored blue. USB 3.0 will transfer data much faster than USB 2.0,
and is backwards-compatible with USB 2.0. When the powered USB 3.0 port
is on it will sup-
ply power (for charging devices only, not for operating devices) when the system is off but
still powered by the AC/DC adapter plugged into a working outlet, or powered by the battery with
a capacity level above 20% (this may not work with certain devices - see page 35). Toggle power
to this port by using Fn + power button.
Display Devices
Besides the built-in LCD, you can also use an external VGA monitor (CRT)/external Flat Panel
Display or TV (connected to the DVI-Out port/HDMI-Out port/DisplayPort) as your display de-
vice.
