Removing the Hard Disk Drive 2 - 7
2.Disassembly
Removing the Hard Disk Drive
The hard disk drive is mounted in a removable case and can be taken out to accommodate other 2.5" SATA hard disk
drives with a height of 9.5mm (h). Follow your operating system’s installation instructions, and install all necessary driv-
ers and utilities (as outlined in Chapter 4 of the User’s Manual) when setting up a new hard disk.
Hard Disk Upgrade Process
1. Turn off the computer, and turn it over and remove the battery (
page 2 - 5).
2. Locate the Hard disk bay cover and remove screws & .
3. Remove the bay cover .

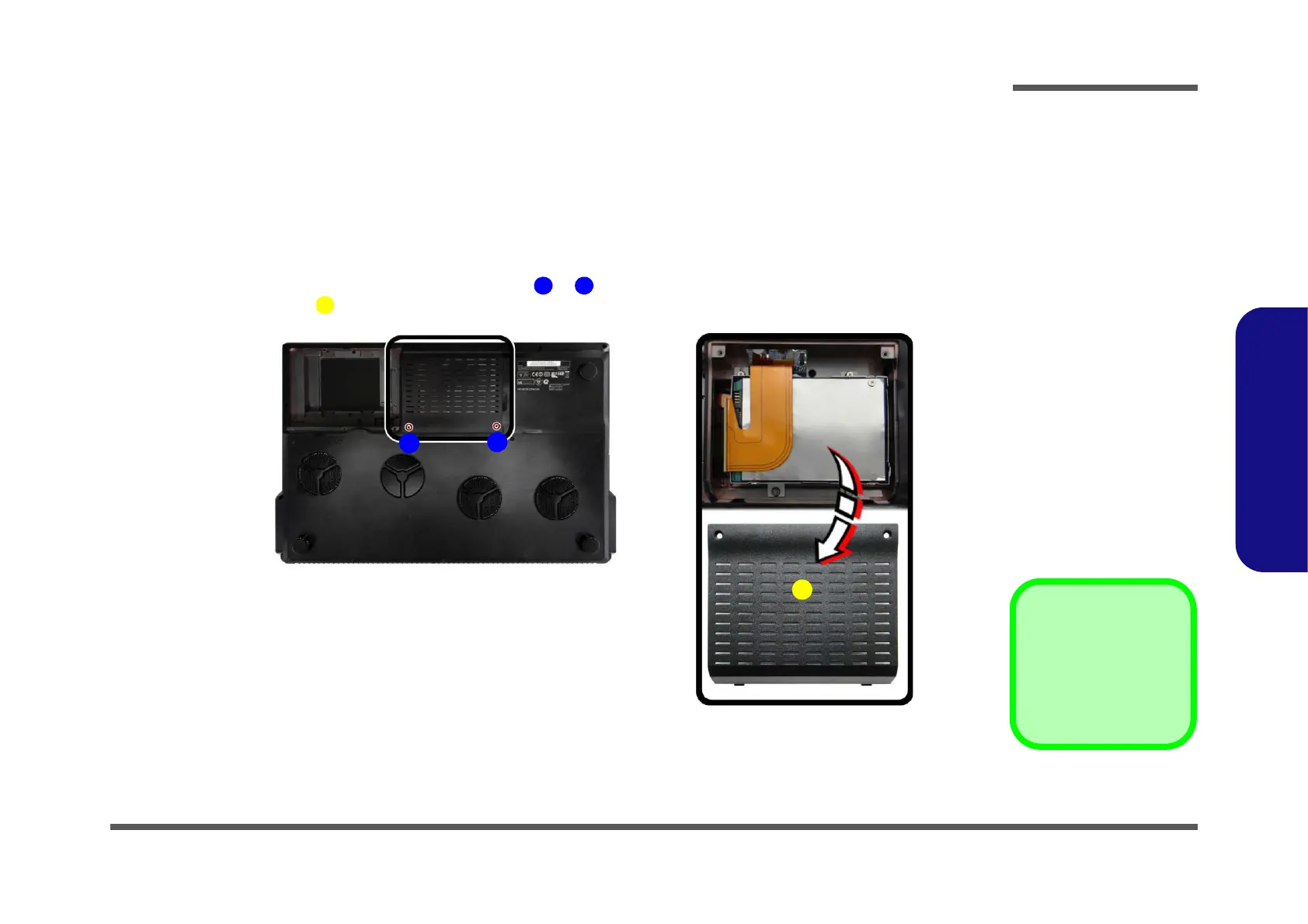

Figure 3
HDD Assembly
Removal
a. Remove the screws.
b. Remove the cover
4. Hard disk Bay Cov-
er
•3 Screws
