Clevo P870KM

Disassembly
2 - 24 Removing the M.2 SSD Module
2.Disassembly
Removing the M.2 SSD-2 Module
1. Turn off the computer, and turn it over, remove the battery (page 2 - 5).
2. Locate the module; it is visible at point
(Figure 18a).
3. Remove the screw from the SSD (Figure 18a
).
4. The M.2 SSD module will pop-up (Figure 18b
).
5. Lift the M.2 SSD module up and off the computer (Figure 18c
).
6. Reverse the process to install a new module (make sure that the hexagonal screw
is in the correct location
depending upon the size of the module).

3. M.2 SSD Module
•1 Screw

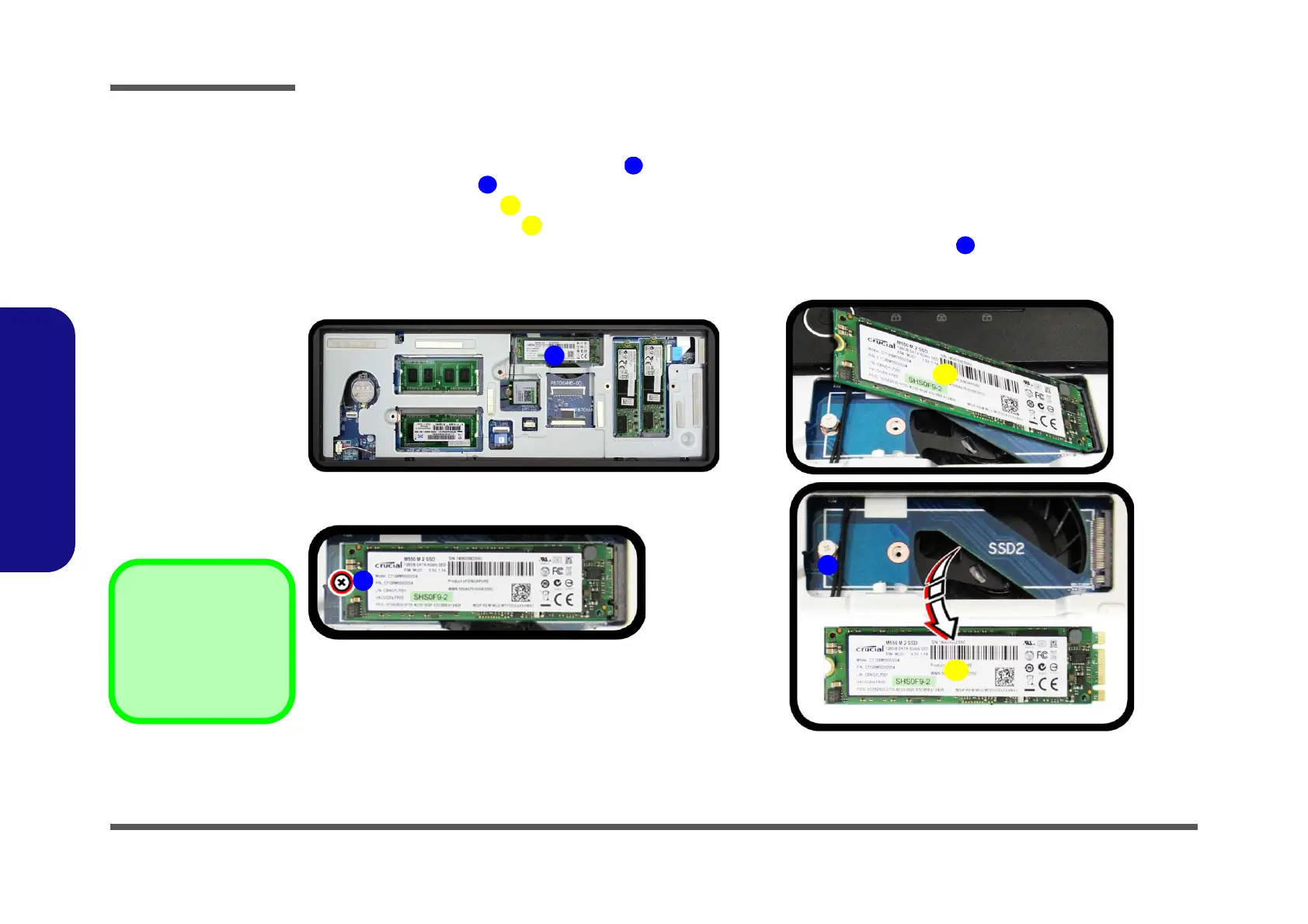

Figure 18
M.2 SSD-2 Module
Removal
a. Locate the module.
b. Remove the screws.
c. The module will pop up.
d. Lift the module out.
1
2
6
3
6
3
3
a. c.
3
3
d.
2
4
b.
1
