Disassembly
Removing the M.2 SSD Module 2 - 25
2.Disassembly
M.2 SSD Installation Procedure
1. Insert the module in the computer (Figure 19a).
2. Tighten the screw to secure it in place (Figure 19b).
3. Only place the thermal pad
on the module’s chip edge as shown when using specific module (Figure 19c).
a.
b.
1
c.
1
2
2
3
3
SDD-2SDD-1
SDD-2
SDD-1
1. M.2 SSD Module
3. Thermal Pad
•1 Screw

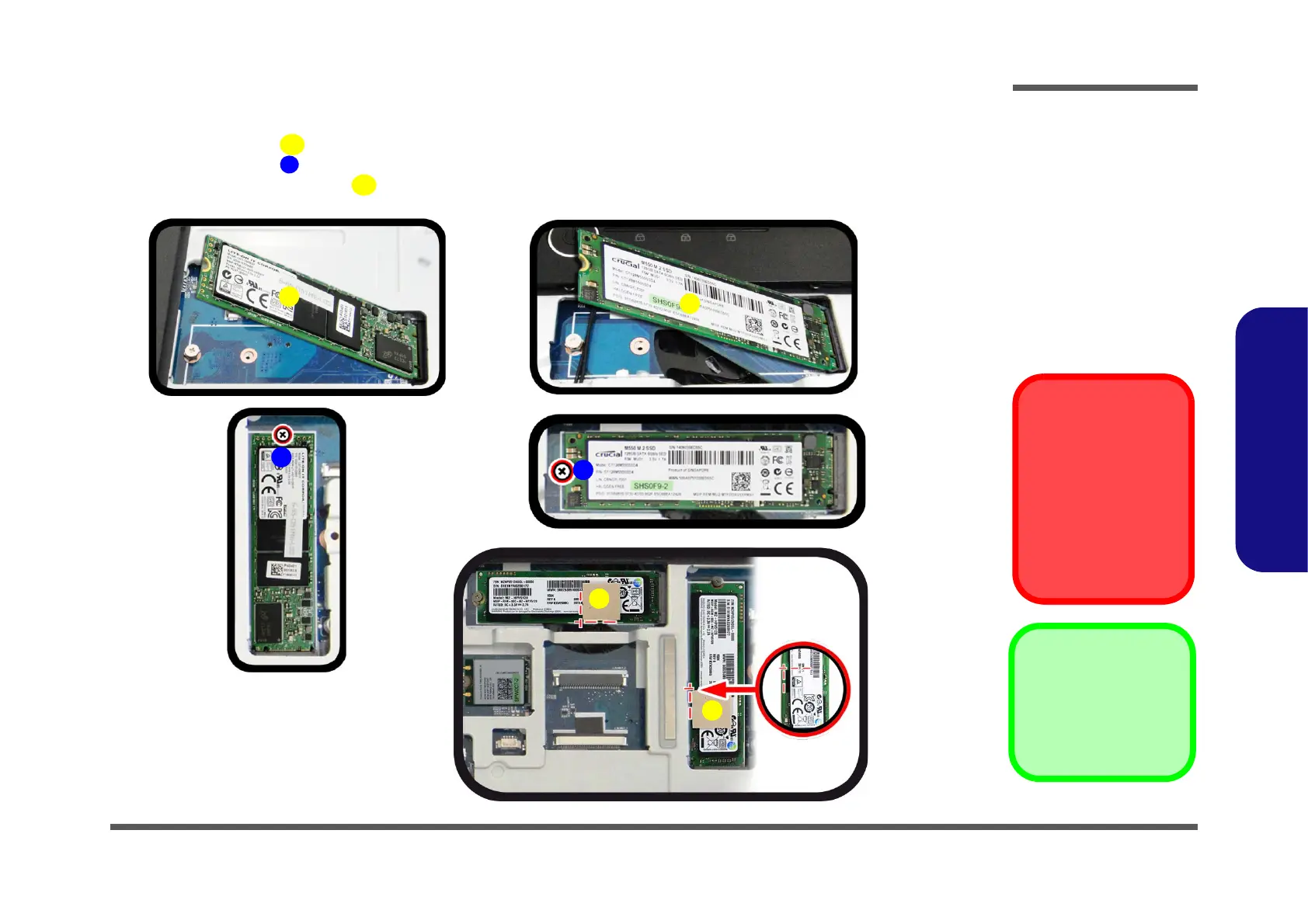

Figure 19
M.2 SSD Module
Installation
a. Insert the module.
b. Tighten the screw.
c. Place the thermal pad
as shown.
Caution
The thermal pad is only
required when using
Samsung SM951 M.2
SSD module. Make sure
you place the thermal
pad’s adhesive side
down on the module
surface as illustrated.
To Next Page
