Clevo W150HRM - Removing and Installing a Processor

Disassembly
Removing and Installing a Processor 2 - 11
2.Disassembly
Removing and Installing a Processor
Processor Removal Procedure
1. Turn off the computer, remove the battery (page 2 - 5) and the component bay cover (page 2 - 9).

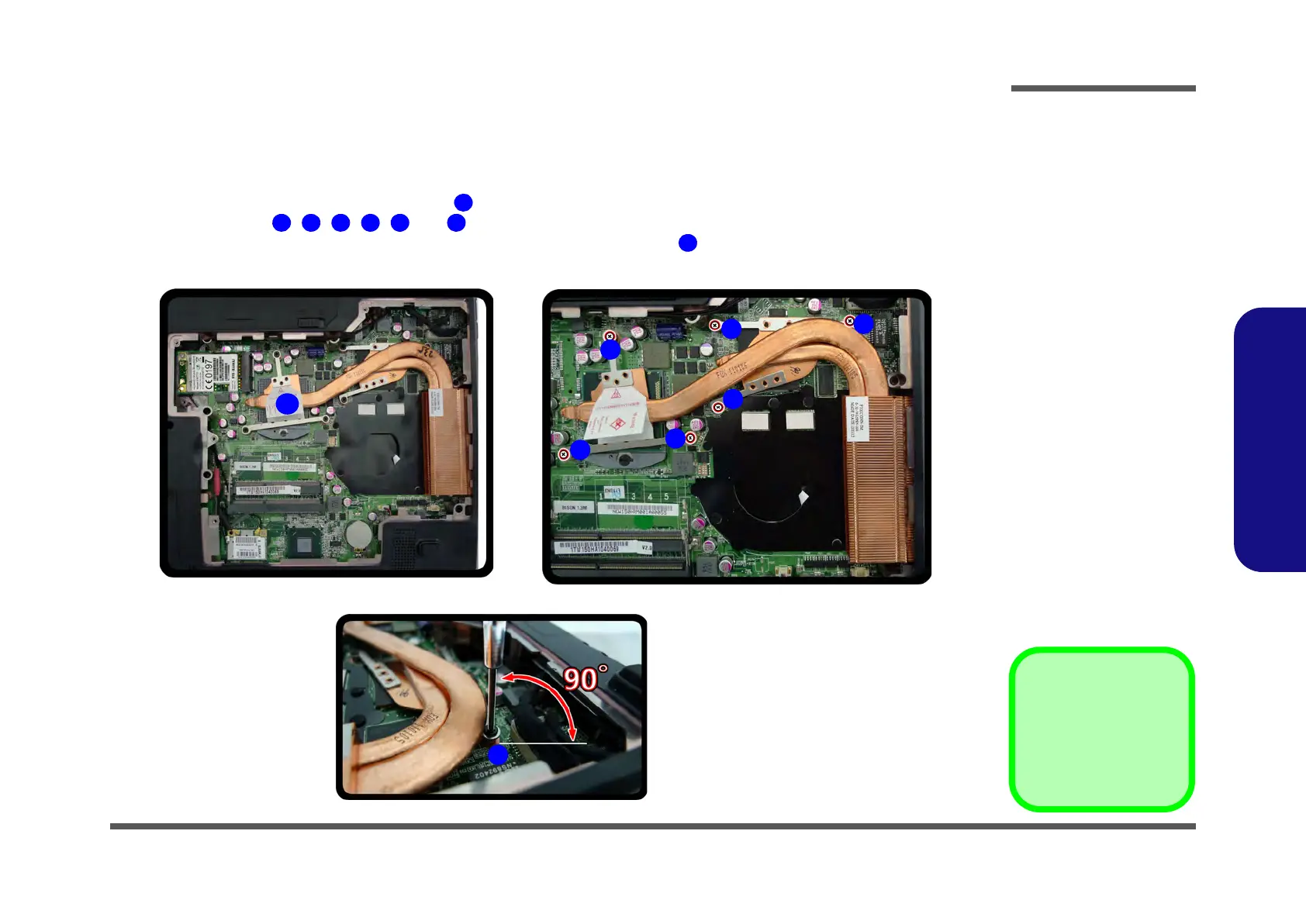

2. The CPU heat sink will be visible at point (Figure 6a) on the mainboard.
3. Remove screws
, , , , and , the reverse order indicated on the label. *Note: Make sure that the
size of the screwdriver is below 4mm. when removing or tighting screw , and its position should be at a 90
degree angle from the mainboard.(Figure 6c)
A
6
5
4
3
2
1
5
Figure 7
Processor Removal
a. Remove the cover and
Iocate the heat sink.
b. Remove the screws in
the order indicated.

• 6 Screws
a.
1
2
3
A
b.
5
4
6
c.
5
