Clevo W170HN - Removing and Installing a Processor

Disassembly
Removing and Installing a Processor 2 - 11
2.Disassembly
Removing and Installing a Processor
Processor Removal Procedure
1. Turn off the computer, remove the battery (page 2 - 5) and the component bay cover (page 2 - 9).
2. The CPU heat sink will be visible at point (Figure 7a) on the mainboard.
3. Remove screws
, , , the reverse order indicated on the label (Figure 7b).
A
3
2
1

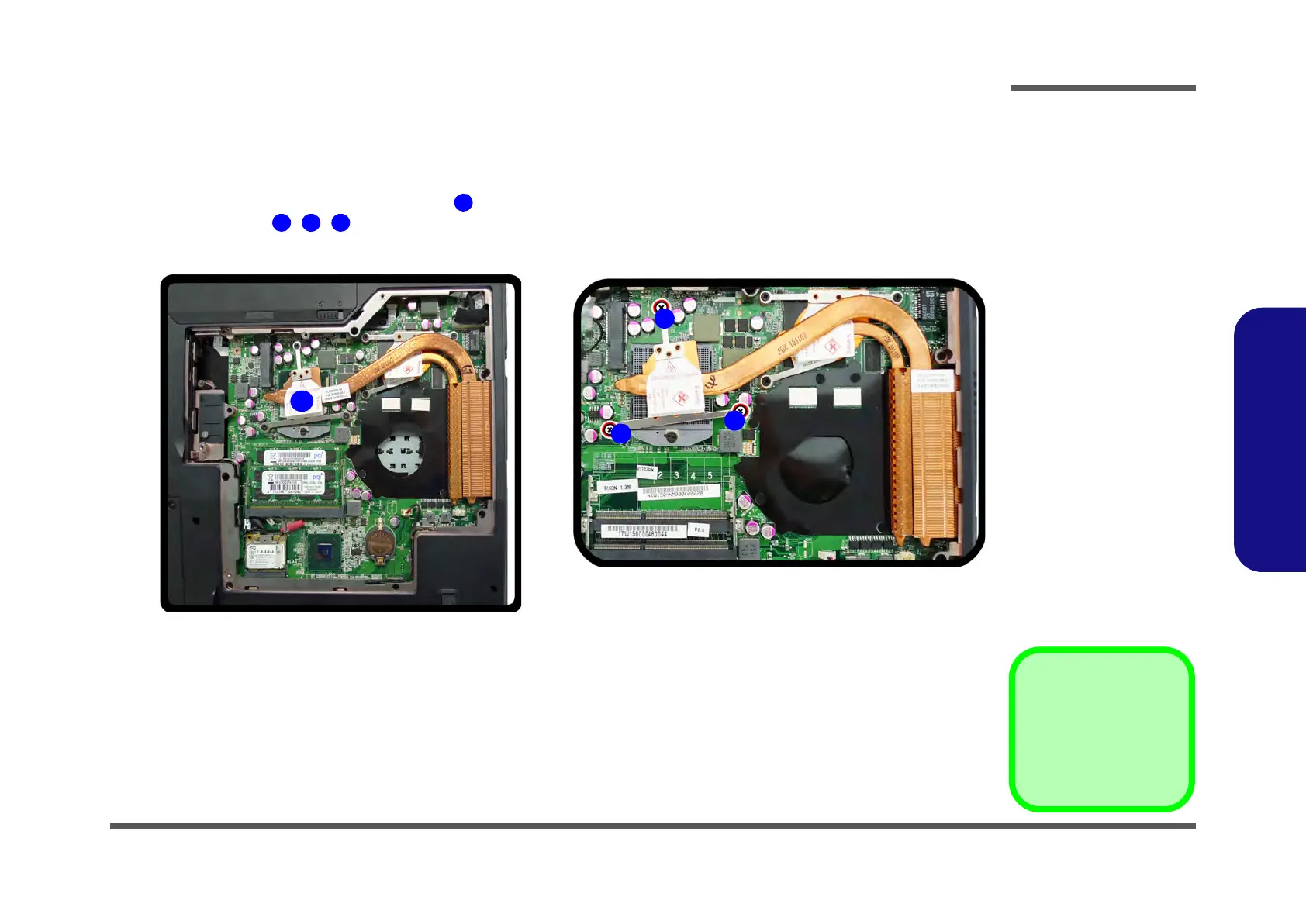

Figure 7
Processor Removal
a. Remove the cover and
Iocate the heat sink.
b. Remove the screws in
the order indicated.

• 3 Screws
a.
1
2
3
b.
A
