Mainboard Overview - Top (Connectors)

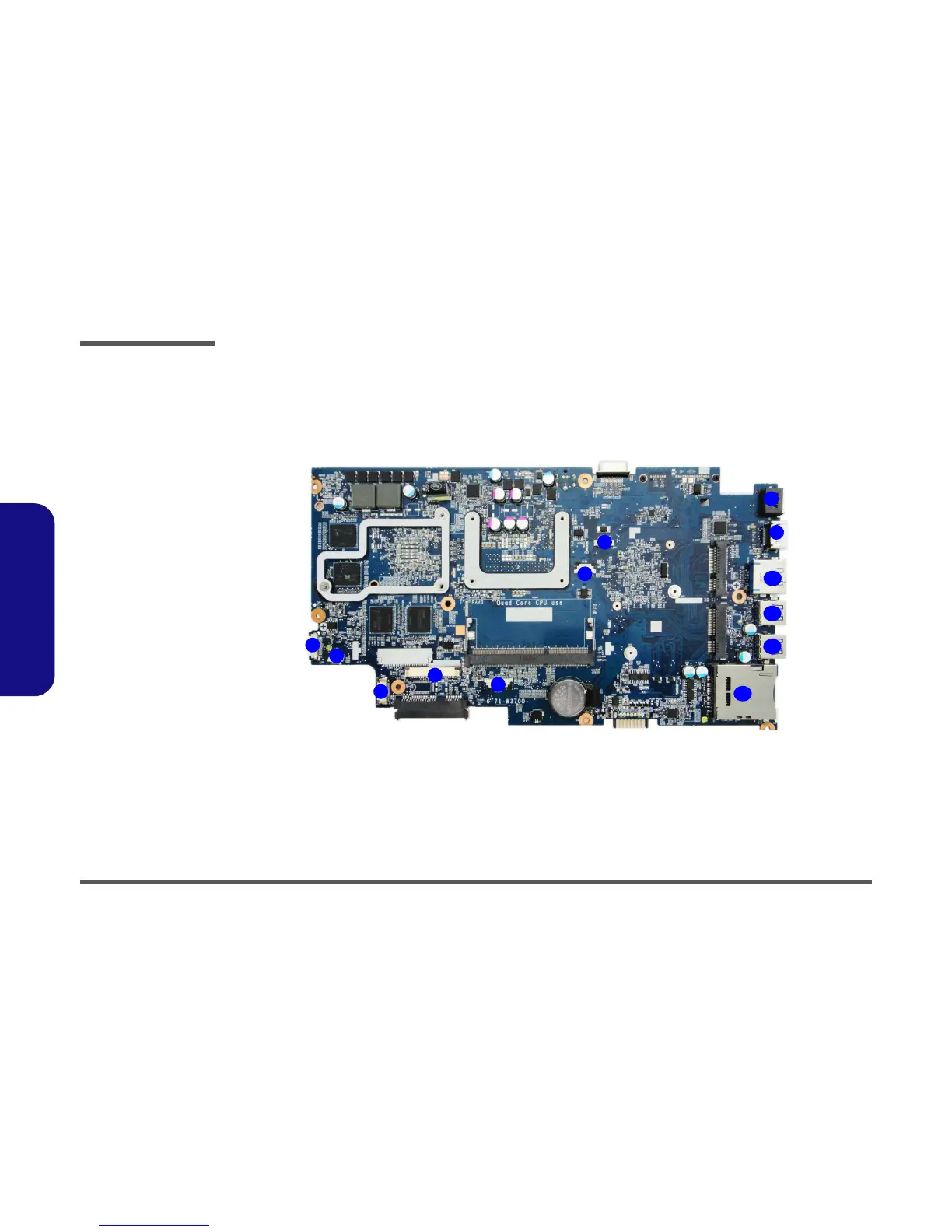

Figure 9
Mainboard Top
Connectors
1. Audio Cable
Connector
2. Power Switch Cable
Connector
3. ODD Cable Connector
4. Keyboard Cable
Connector
5. Click Board Cable
Connector
6. VGA SW Cable
Connector
7. Speaker Cable
Connector
8. RJ-45 LAN Jack
9. HDMI-Out Port
10. eSATA Connector
11. USB 3.0 Ports
12. Multi-in-1 Card Reader
1
10
3
2
5
7
6
8
9
11
12
4
11
