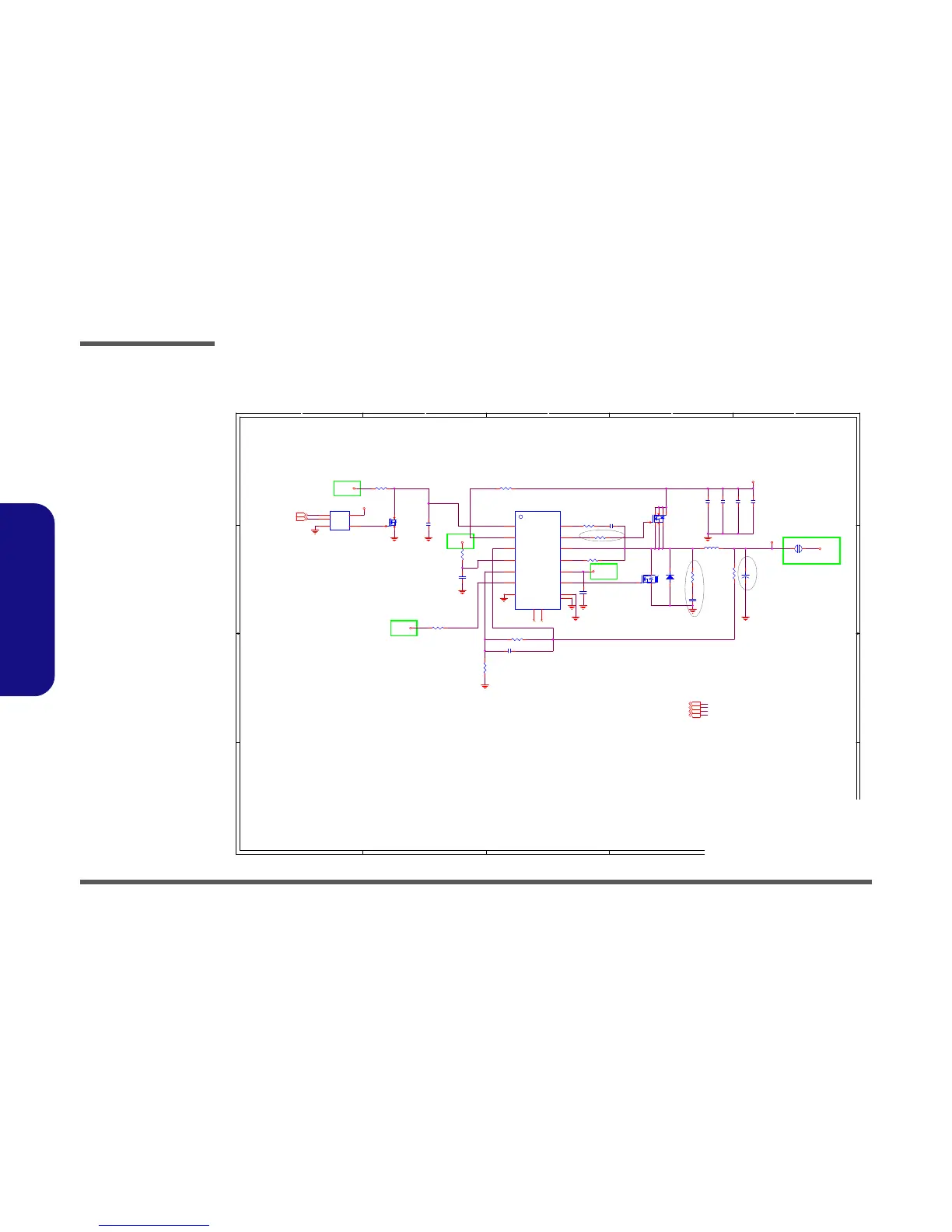

Clevo W370ST User Manual

Schematic Diagrams
B - 46 FBVDDQ
B.Schematic Diagrams
FBVDDQ
Sheet 45 of 55
FBVDDQ
5
5
4
4
3
3
2
2
1
1
D D
C C
B B
A A
Short
18A
P/N 6-06-05822-061
Stanley 3/14
1.35VS
IMAX:18A
FOR GDDR3 1.35VS
D03
D03
FBVDDQ
FBVDDQ_S
5V
5V
VIN
3.3V
3.3V
3.3V
GPIO_FB_CLAMP15,20,38
dGPU_PWR_EN#25,38,44
5V31,32,33,39,41
3.3V2,3,13,20,22,26,27,28,29,30,31,32,33,37,39,41,44
VIN13,39,40,41,42,43,44,46
FBVDDQ15,16,17,18,19
Title
Size Document Number Rev
Date: S heet
of
6-71-W35S0-D03
1.0
[45]FBVDDQ
A3
45 54Wednesday, January 16, 2013
ᙔ!Ϻ!ႝ!တ!!DMFWP!DP/
Title
Size Document Number Rev
Date: S heet
of
6-71-W35S0-D03
1.0
[45]FBVDDQ
A3
45 54Wednesday, January 16, 2013
ᙔ!Ϻ!ႝ!တ!!DMFWP!DP/
Title
Size Document Number Rev
Date: S heet
of
6-71-W35S0-D03
1.0
[45]FBVDDQ
A3
45 54Wednesday, January 16, 2013
ᙔ!Ϻ!ႝ!တ!!DMFWP!DP/
PR237
3.6K_1%_04
PR238
100K_1%_04
PL16 BCIHP1040-1R0M
1 2
PR239
0_04
PC210
0.1u_10V_X7R_04
PR240 820K_1%_06
PC211 *15p_50V_NPO_04
PC202
0.1u_50V_Y5V_06
PD21
FM5822
A C
PR241 10K_04
PQ72
MDV1526
4
52 5 53
1
5
PR147
0_06
PC205
4.7u_25V_X5R_08
U13
74LVC1G32GW
GND
3
B
2
A
1
Y
4
Vcc
5
PR23
5.1_06
PC203
*0.01u_16V_X7R_04
PR245 0_04
PC206
1u_6.3V_X5R_04
PC7
220p_50V_NPO_04
PQ79
MTN7002ZHS3
G
DS
PR242 100K_04
+
PC209 390uF_2.5V_12m_6.6*6.6*4.2
PJ16
*OPEN-5mm
1 2
PC207
0.1u_50V_Y5V_06
PU10
G5602R41U
VOUT
1
EN_PSV
15
TON
16
VCC
2
VFB
3
PGOOD
4
AGND
6
BST
13
DH
12
LX
11
ILIM
10
VDD
9
DL
8
PGND
7
PGND
17
NC
5
NC
14
PC208
1u_6.3V_X5R_04
PR236
2.2_04
PQ80
MDU1512
ULTRASO-8
G
DS
PC204
4.7u_25V_X5R_08
PR243 80.6K_1%_04
