Disassembly
2 - 14 Removing the Keyboard
2.Disassembly
Removing the Keyboard
1. Turn off the computer, and turn it over and remove the battery (page 2 - 5), and component bay cover (page 2 -
10).
2. Use a screwdriver to carefully push out the speakers cover
at point .
3. Turn the computer over, unsnap the speaker cover upwards from the center of the computer (Figure 10b).
4. Remove screws - from the keyboard (Figure 10c).
5. Carefully lift the keyboard
up, being careful not to bend the keyboard ribbon cable . Disconnect the key-
board ribbon cable from the locking collar socket by using a flat-head screwdriver to pry the locking collar
pins away from the base (Figure 10d).
6. Carefully lift up the keyboard (Figure 10e) off the computer.

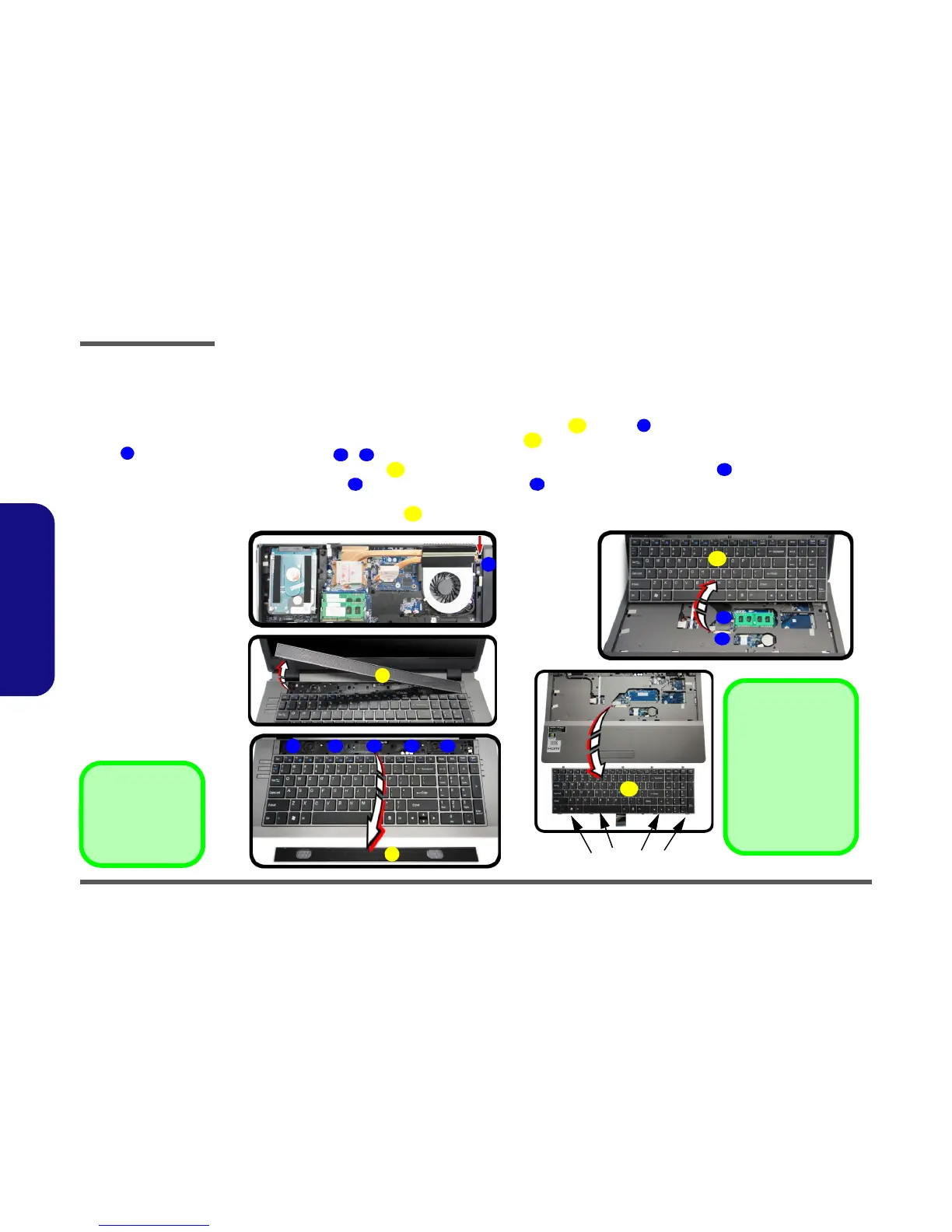

Figure 10
Keyboard Removal
a. Use a screwdriver to
carefully push out the
speakers cover at
point .
b. Turn the computer
over, unsnap the LED
cover module upwards
from the center of the
computer.
c. Remove screws from
the keyboard.
d. Carefully lift the key-
board up and discon-
nect the keyboard
ribbon cable from the
locking collar socket by
using a flat-head
screwdriver to pry the
locking collar pins
away from the base.
e. Remove the keyboard.
1
2. Speaker Cover
8. Keyboard
•5 Screws
2
1
2
3
7
8
9
9
10
8
1
a.
2
b.
2
d.
8
8
9
Keyboard Tabs
e.
10
Re-Inserting the
Keyboard
When re-inserting the
keyboard firstly align the
four keyboard tabs at
the bottom (Figure 10e)
at the bottom of the key-
board with the slots in
the case.
c.
3
4 5 6 7
