Clevo W370ST User Manual

Disassembly
Removing and Installing the Processor 2 - 13
2.Disassembly
Processor Installation Procedure
1. Insert the CPU (Figure 9a), pay careful attention to the pin alignment, it will fit only one way (DO NOT FORCE
IT!), and turn the release latch towards the lock symbol (Figure 9b).
2. Insert the heat sink
at an angle of around 30° as indicated in Figure 9c.
3. Tighten the CPU heat sink screws in the order
, , , , , & (the order as indicated on the label
and Figure 9d).
4. Replace the component bay cover.
A
B
C
1
2
3
4
5
6
7
45°
b.
B
a.
c
Note:
Tighten the screws in the order
as indicated on the label.
A
c.
d.
2
1
3
4
6
5
7

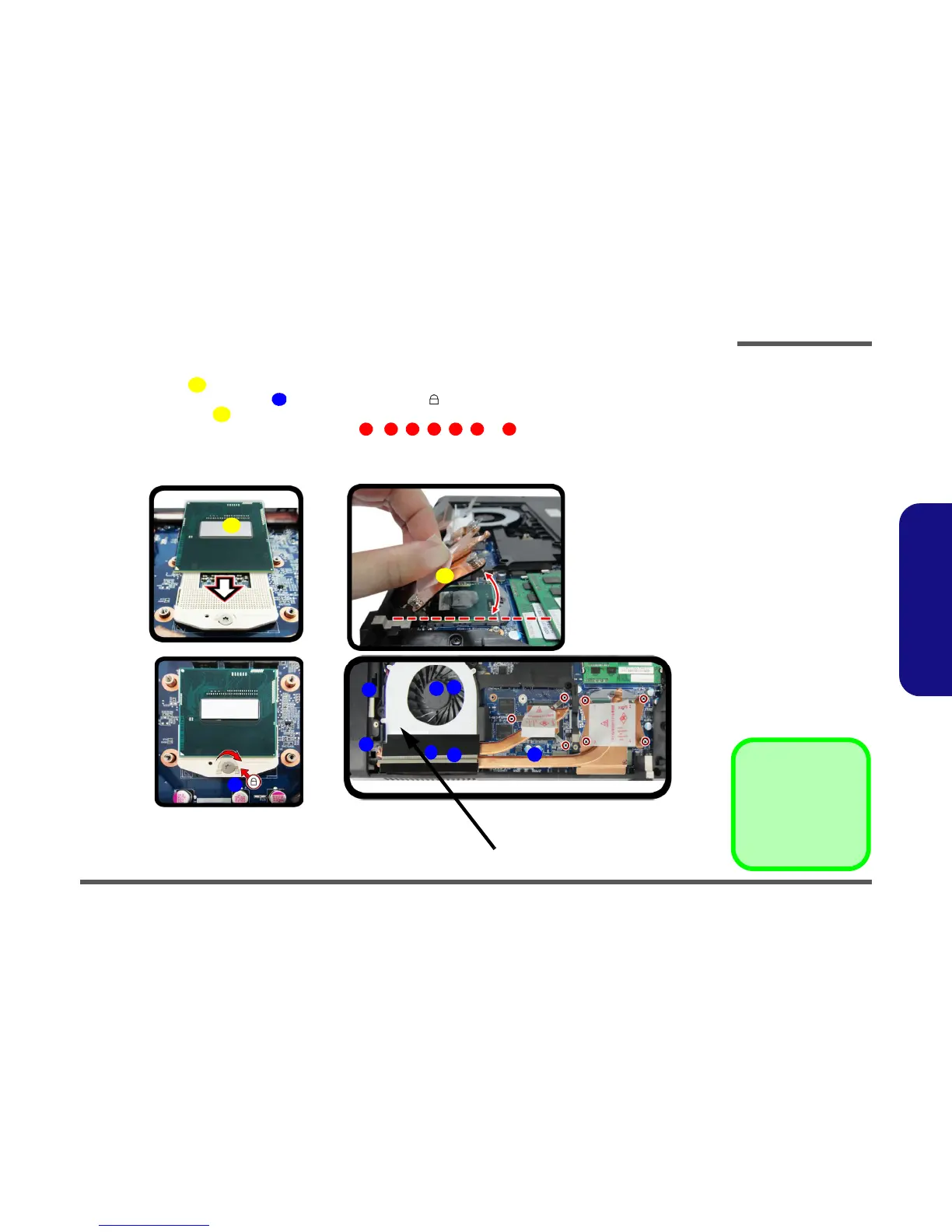

Figure 9
Processor
Installation
a. Insert the CPU.
b. Turn the release latch to-
wards the lock symbol.
c. Insert the heat sink.
d. Tighten the screws.

A. CPU
D. Heat Sink
•7 Screws
