Disassembly
2 - 8 Removing the Hard Disk Drive
2.Disassembly
5. Lift the hard disk assembly out of the computer (Figure 4c).
6. Remove screws
- .
7. Separate the hard disk and hard disk mylar
.
8. Reverse the process to install a new hard disk(s).

7. Hard Disks
8. Hard Disk Mylar
•2 Screws

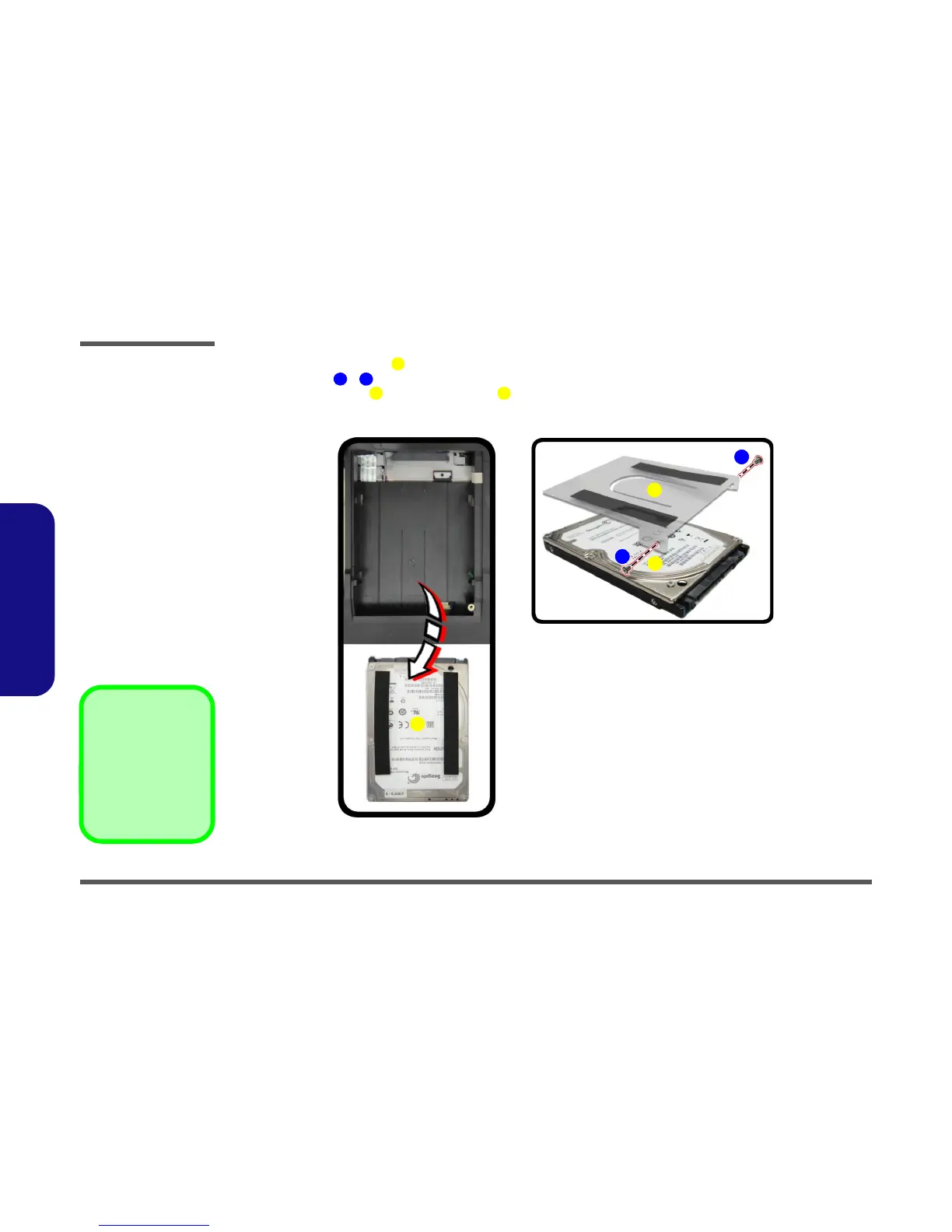

Figure 4
HDD Assembly
Removal (cont’d.)
c. Lift the hard disk assem-
bly out off the computer.
d. Remove the screws to
release the hard disk
from the mylar.
4
5
6
7
8
5
6
d.
c.
4
7
8
