2 - 6 Removing the Keyboard
2.Disassembly
Removing the Keyboard
1. Turn off the computer, turn it over, remove the battery (page 2 - 5).
2. Remove screw and carefully press at point , from the bottom of the computer to unsnap the center cover
module (use the eject pin tool to do this - Figure 2a)
3. Turn the computer over, remove the unsnap center cover module from the computer (Figure 2b).
4. Remove screws - from the keyboard (Figure 2c).
5. Lift the keyboard up, being careful not to bend the keyboard ribbon cable . Disconnect the keyboard ribbon
cable from the locking collar socket and the keyboard LED cable from its locking collar (Figure 2d).
6. Carefully lift the keyboard off the computer (Figure 2e).
1
2
6
3
4
8
9
10
11
12
13
b.
d.
a.
1
e.
13
8
3
7
c.
56 4
10
9
11
2
12
10

3. Center Cover Module
13. Keyboard
•6 Screws

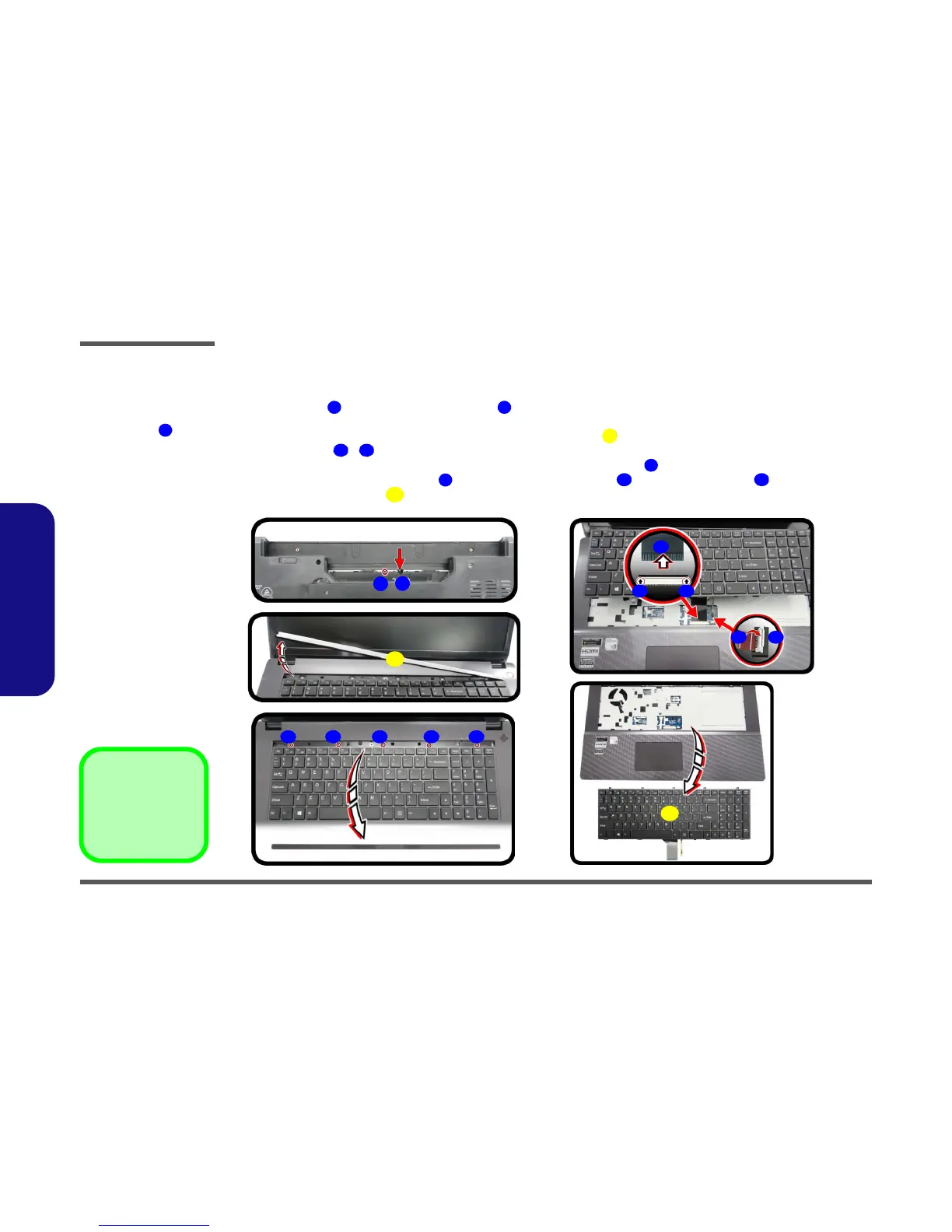

Figure 2
Keyboard Removal
a. Remove screw and
press at point to un-
snap the center cover
module.
b. Remove the center cov-
er module.
c. Remove the screws.
d. Carefully lift the key-
board up and disconnect
the ribbon cables from
its locking collar.
e. Remove the keyboard.
2
