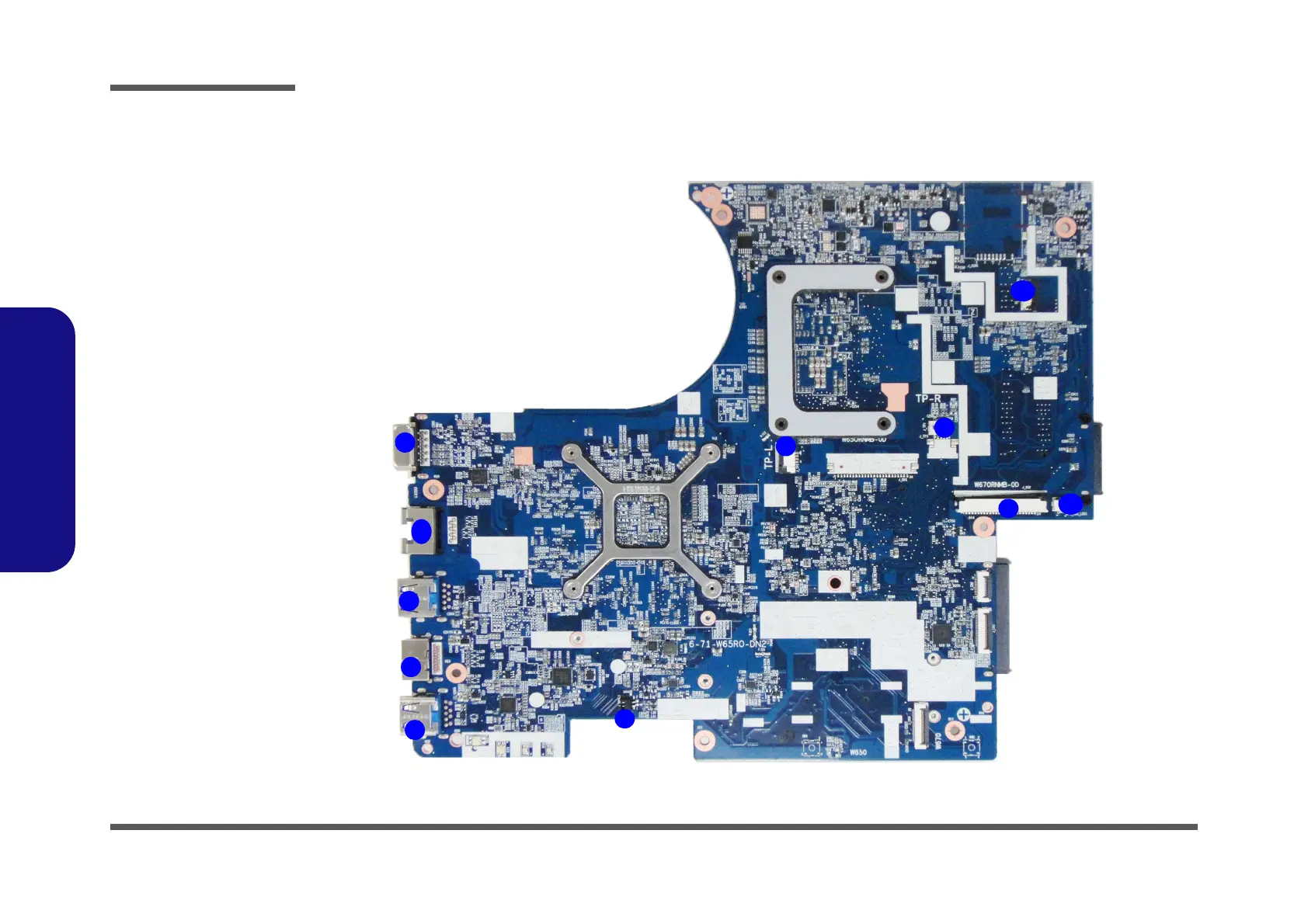

Mainboard Overview - Top (Connectors)
Figure 9
Mainboard Top
Connectors
1. External Monitor
Port
2. RJ-45 LAN Jack
3. Combo eSATA/
USB Port 3.0
4. HDMI-Out Port
5. USB Port 3.0
Connector
6. Speaker Cable
Connector
7. Keyboard Cable
Connector
8. Touchpad FPC
Connector
9. Touchpad FPC
Connector
10. Keyboard FPC
Connector
11. Power Board
Connector
10
9
7
8
6
5
1
2
3
4
11
