10
INSTALLATION
Mount Wallplate and Thermostat
■

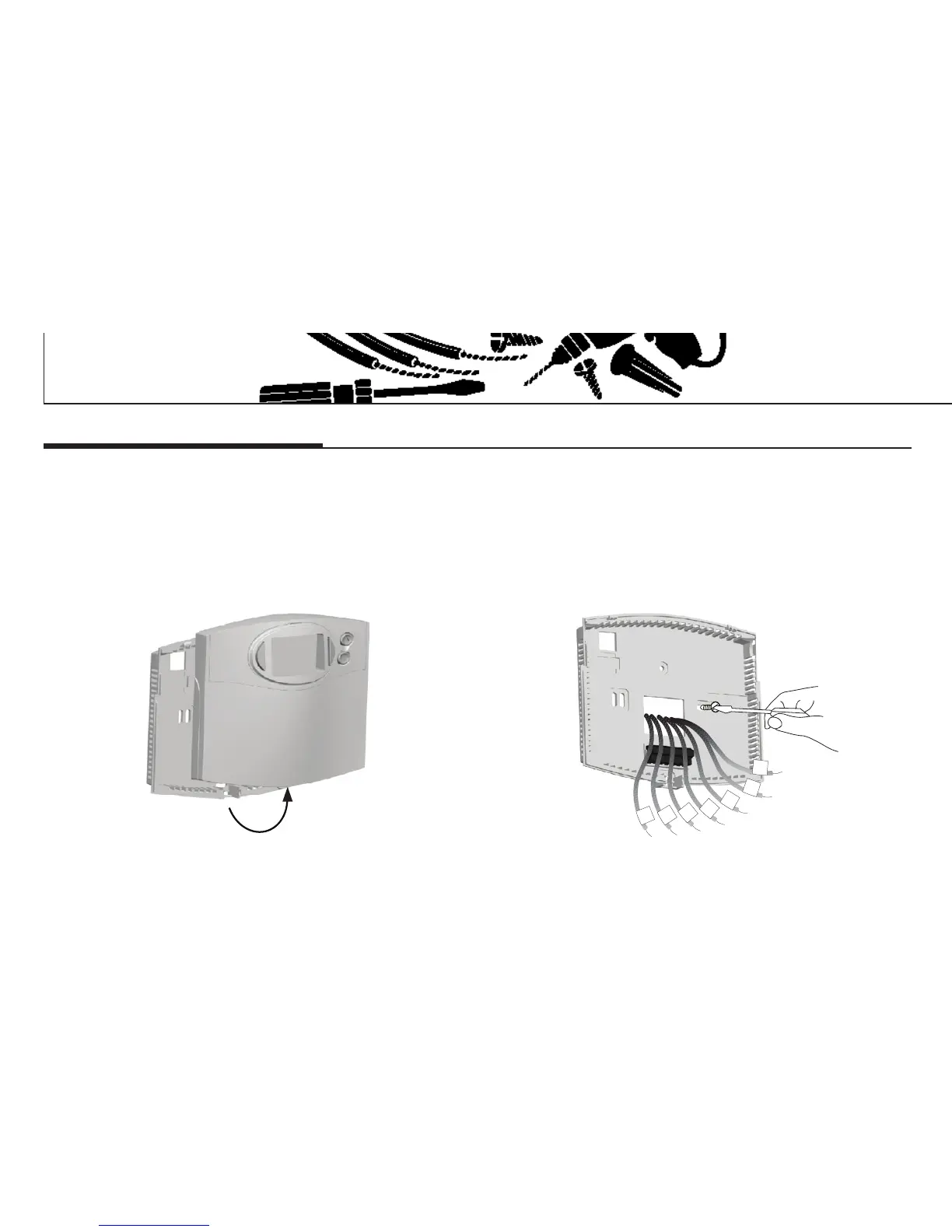

Remove the wallplate from your thermostat by pressing
the release tab on the bottom of the thermostat. (See
Figure 2.)
■
Position wallplate on wall and pull existing wires
through large opening. Then level for appearance. Mark
holes for plastic anchors provided if your existing holes
do not line up with those on the Hunter wallplate.
■
Drill holes with 3/16" bit and gently tap anchors into
the opening. Insert mounting screws provided into wall
anchor and tighten. (See Figure 3.) holes until ush with
wall.
■
Reposition wallplate to wall, pulling wires through large
opening. Insert provided mounting screws into wall an-
chors and tighten.
