Climbing Technology ALPINE UP - Self-Locking Belaying: 1 or 2 Seconds; Self-Locking Belaying Setup and Testing; Self-Locking Belaying Operations and Warnings

Climbing Technology by Aludesign S.p.A. via Torchio 22
24034 Cisano B.sco BG ITALY www.climbingtechnology.com
6/24
IST12-2D651CT_rev.8 10-21
1
2
OK!
STOP!
NO!
quickdraw karabiner

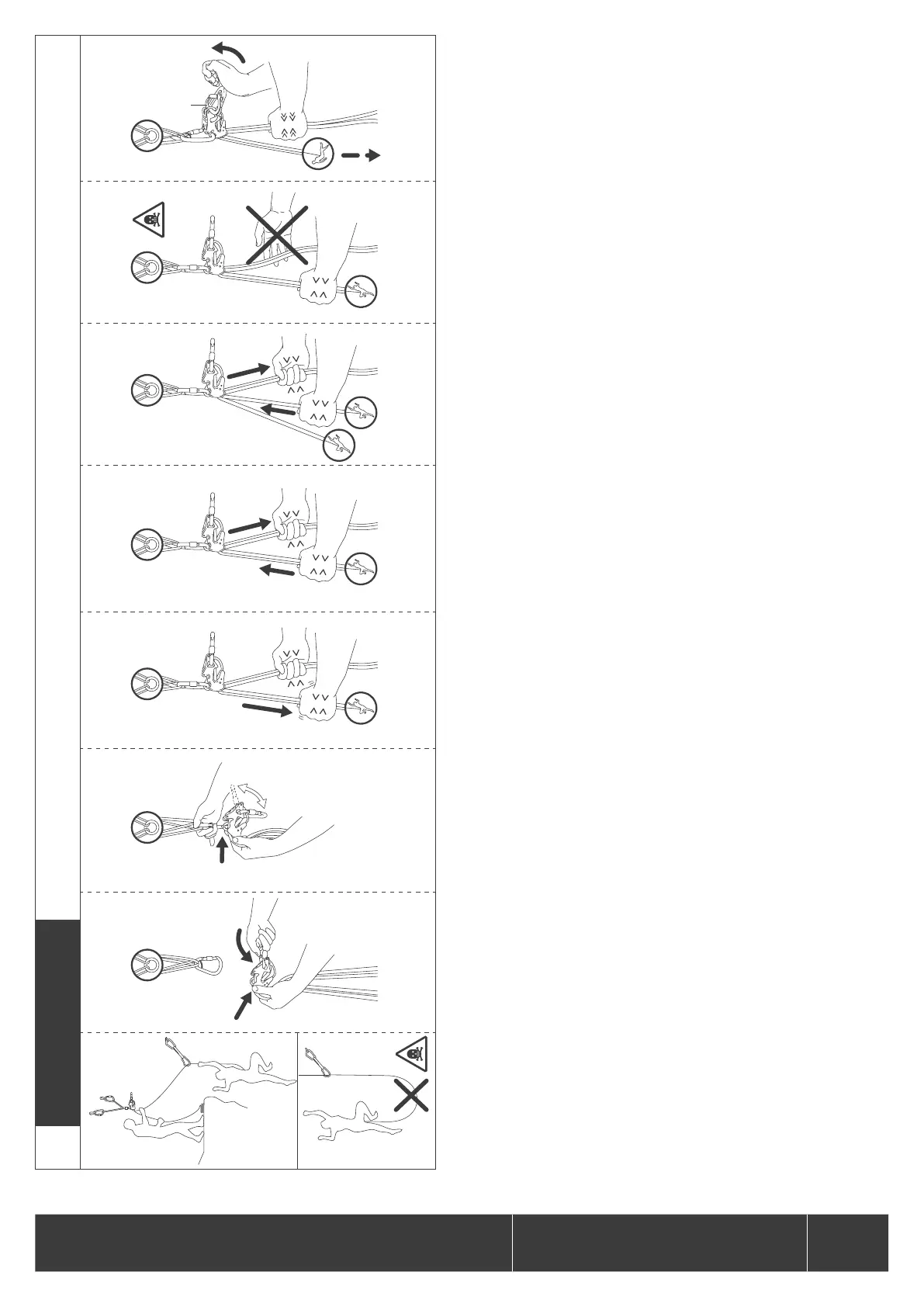

This mode allows the belaying of one or two seconds simultaneously and independently. After the setup and before the belaying you must test the system: pull on the rope on the climber’s side to verify that the self-locking function stops the rope on the climber’s side.
OK!
11.1 SETUP
11.2 SETUP
11.3 TESTING
11.4 BELAYING 1 SECOND
11.5 BELAYING 2 SECONDS
11.6 WARNING!
11.7 GRADUALLY RELEASING
NO!
Insert the rope in slots B ref. to symbols 15-16 (1). Insert a wi- de-base HMS karabiner in the hole G with the rope inside (2).
Connect the Concept karabiner at the center of the belay station and connect it in the hole I, so that the ropes remain below it.
Pull on the rope on the clim- ber’s side to verify that the self-locking function stops the rope on the climber’s side.
Use both hands to take up slack at the climber end through the device. Hold the free end of the rope taut in both hands.
When using half or twin ropes, always hold both free ends of the ropes fi rmly in your hands and taut!
Always hold both free ends of the ropes fi rmly in your hands and taut!
Insert a quickdraw karabiner in the hole L, hold both free ends of the rope fi rmly in your hand and push your palm up.
11
BELAYING OF 1 OR 2 SECONDS IN A SELF-LOCKING WAY
