4.2 Table of the K-values of CleanMaster® hoods
4.3 Calibration of the air flow sensor
Before you start calibrating the air flow sensor, check that
• the CCM control unit is installed
• ventilation has been adjusted and functions normally
1. Switch on the CCM control unit.
2. The air flow sensor measures the air flow for 60 seconds, during which both of the signal lights
are illuminated. When measuring is completed, one of the lights goes o.
a) If a red light is illuminated:
Turn the adjusting screw slowly to the right, until the red light goes o and the green led is illu-
minated. Then turn the adjusting screw a further 1/2 round to the right.
b) If a green light is illuminated:
Turn the adjusting screw slowly to the left, until the green light goes o and the red light is
illuminated. Then turn the adjusting screw a further 1/2 round to the right, until the green light
is illuminated.
When the air flows change in the system, repeat the calibration of the air flow sensor.
Adjusting screw

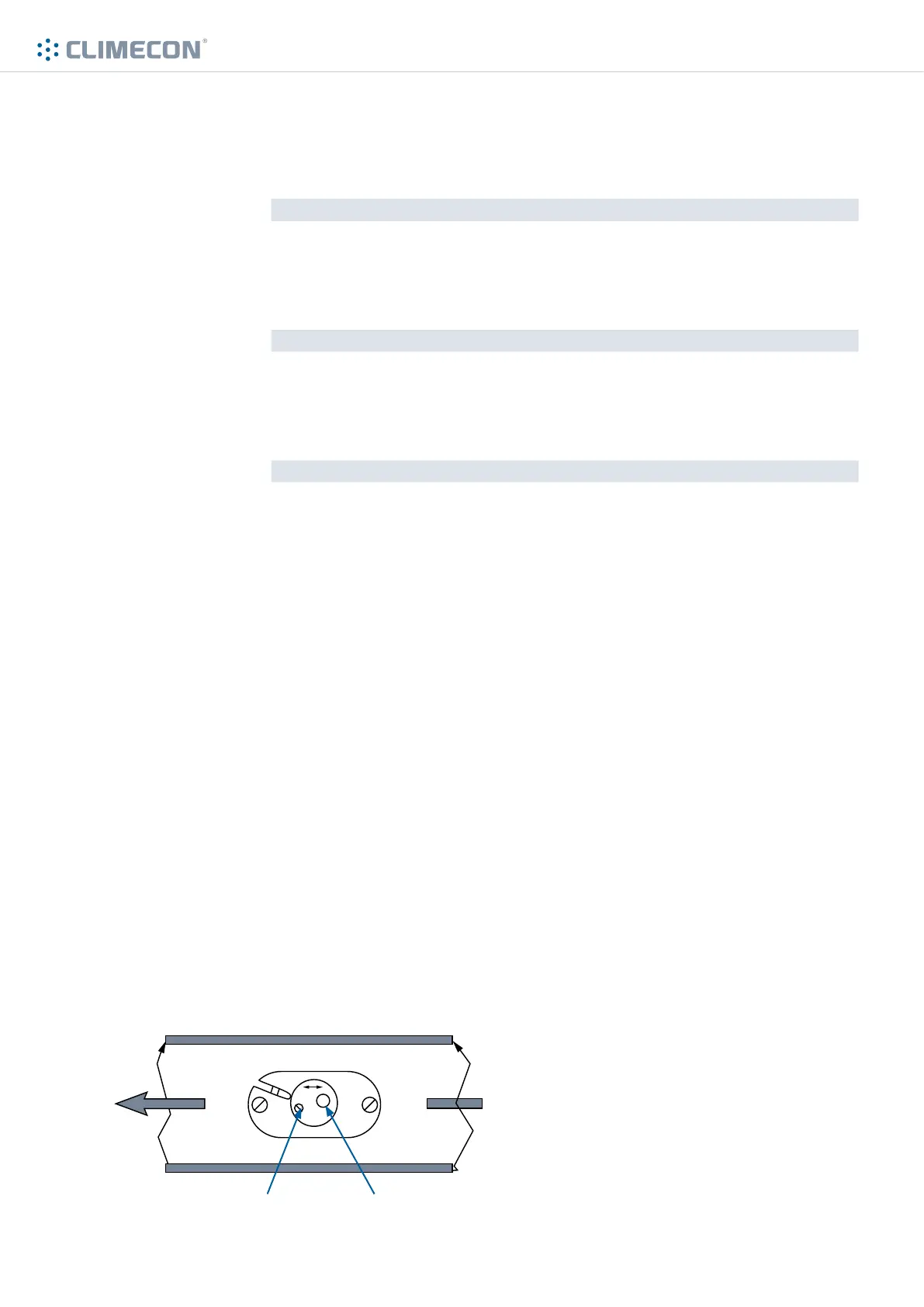

Figure 1. Calibration of the air flow sensor
Signal lights (red/green)
Exhaust air / Amount of grease filters (pcs)
Hood model 1 2 3 4 5 6 7 8 9 10 11 12
CleanMaster® 18,5 37 55,5 74 92,5 111 129,5 148 166,5 185 203,5 222
StandardPlus, grease 21,6 43,2 64,8 86,4 108 129,6 151,2 172,8 194,4 216 237,6 259,2
StandardPlus, condensate 22,7 45,4 68,1 90,8 113,5 136,2 158,9 181,6 204,3 227 249,7 272,4
Supply air / Width of the hood (mm)
Height of the hood 800 1000 1500 2000 2500 3000
H=560 mm 28 45 67 90 112 135
H=400 mm 22 42 64 85 106 127
H=300 mm 22 33 49 66 82 99
Capture air / Width of the hood (mm)
Adjustment position 800 1000 1500 2000 2500 3000
Maksimi (Fully open) 1,4 2,8 4,2 5,6 7,0 8,4
Minimi (Fully open)* 0,6 1,2 1,8 2,4 3,0 3,6
*Is only recommended if the pressure of the supply air is over 15Pa.
