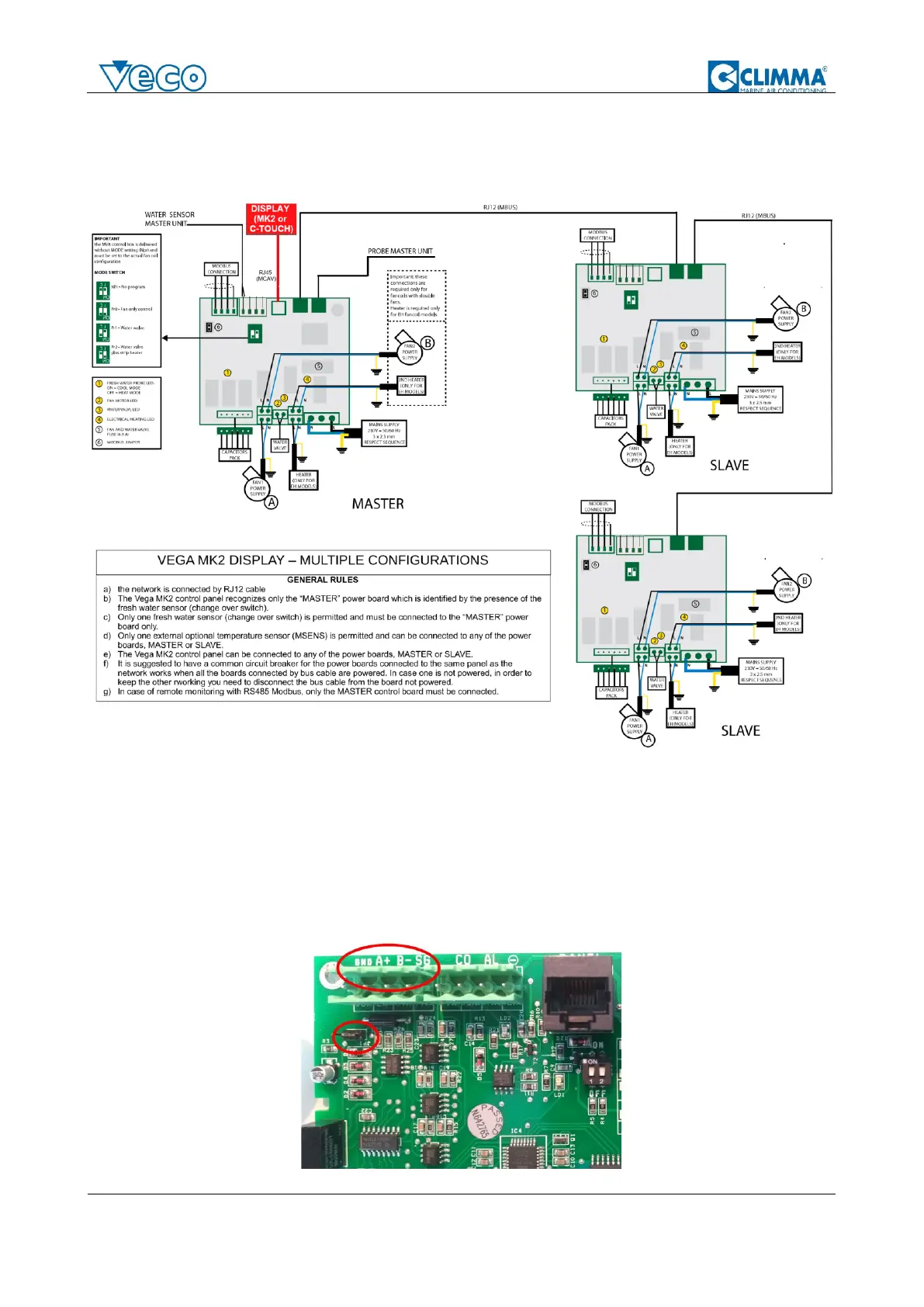

installed. The presence of the CO sensor, in fact, identifies the "master" card and the panel will refer only to
that card, regardless of whether the panel is connected to this card or to another card in the network. The
communication connection between the MV8 boards takes place with an RJ12 cable (MBUS) available in
different lengths.
The presence of other CO sensors in the multiple configurations prevents their operation.
4.1.8. Modbus communication
The MV8 board is ready to communicate with an automation system via Modbus protocol.
For this purpose, there are the gnd | A + | terminals B- | SG and also a jp1 jumper to be inserted as a line
terminator. Our customer service can provide instructions and a list of specific functions for the control panel
installed.
