8. TECHNICAL CHARACTERISTICS
8.1. Fan speed capacitors
The MV8 board is an evolution of the Fan Coil Quattro MCON board. Using the combination of the 3 relays
you get 7 speeds plus the maximum speed at full voltage. The values of the capacitors and the presence of a
resistor are extremely important for the good operation and duration of the control. Each fan coil model requires
specific capacitor values, and it is essential to respect these specifications. The capacitor pack for MV8 is NOT
compatible with the Quattro version. The MV8 control is therefore standard, and the capacitor pack identifies
it for compatibility with the Fan coil model.

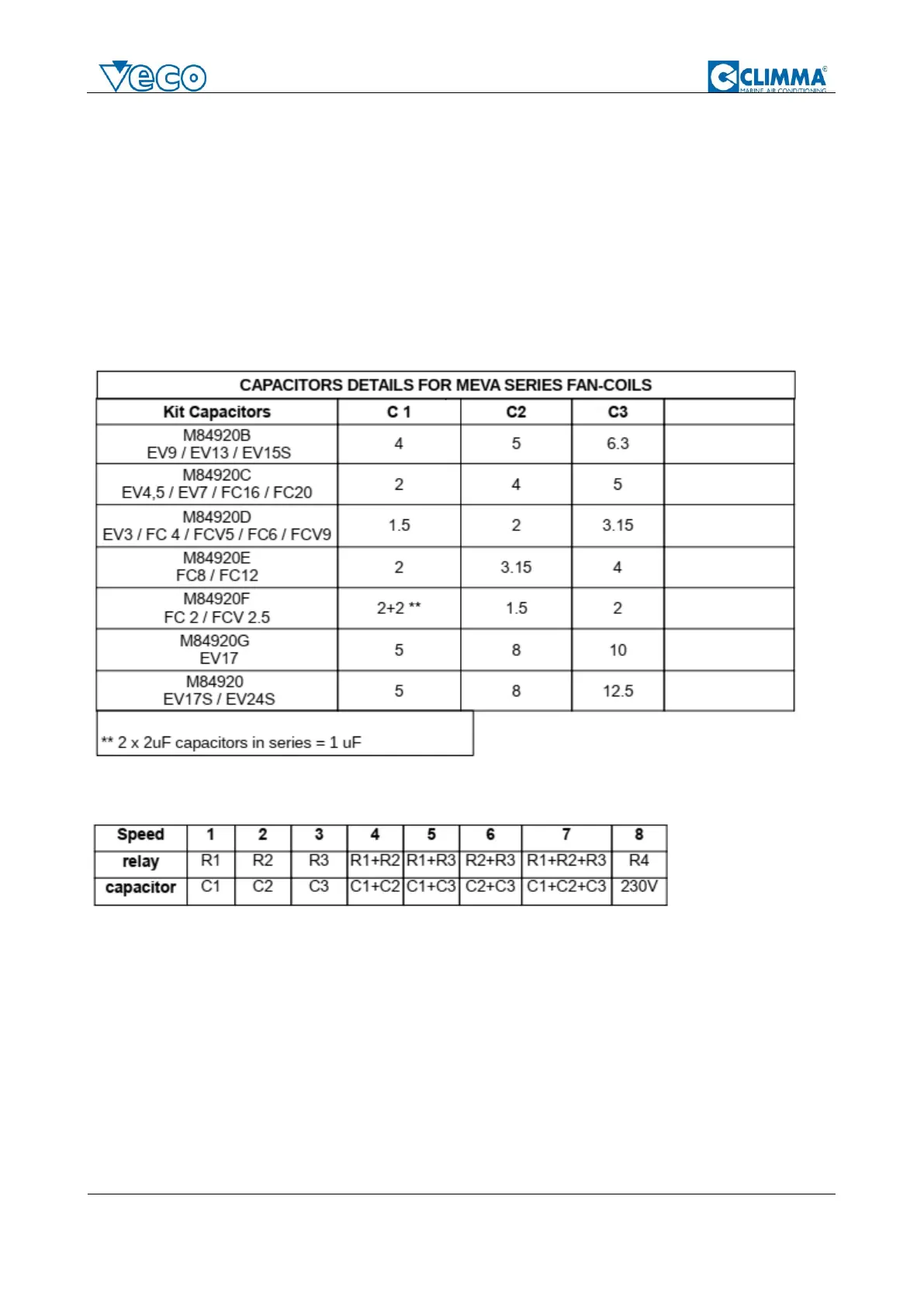

8.2. Capacitor values for Climma Fan coils
8.3. Relays combination on MV8 board
8.4. Part numbers of standard spares for MV8 control
Power board MV8 code M84846
Fresh water temperature probe code M72090
Remote room temperature probe (optional) code MSENS (specify the length)
Control panel connecting cable code MCAV (specify the length)
Communication cable code MBUS (specify the length).
