M06K40A18-00 CKN-XHE2i 7.1-14.2 5
10.5 Gas heating module with 2-stage control
System maintenance booklet
•
It must be kept in the place of installation of the unit
•
It must be lled-in upon commissioning
•
It must be updated with the results of the periodical checks, of the routine and extraordinary maintenance interventions.
Gas connection
•
Read the gas heating module manual.
•
Connection must be carried out by qualied personnel.
•
use certied components and comply with the local standards in force
•
install on the gas connection: tap, large section lter and anti-vibration joint
•
check the supply pressure is correct and stable, in particular where more uses are inserted on the same line.
The heating module includes:
•
hot air generator with condensation and integrated modulating adjustment, power with methane gas
•
kit for transformation of power with liqueed petroleum gas (LPG)
•
kit of steel chimney for exhaust fumes
•
All the control and safety devices

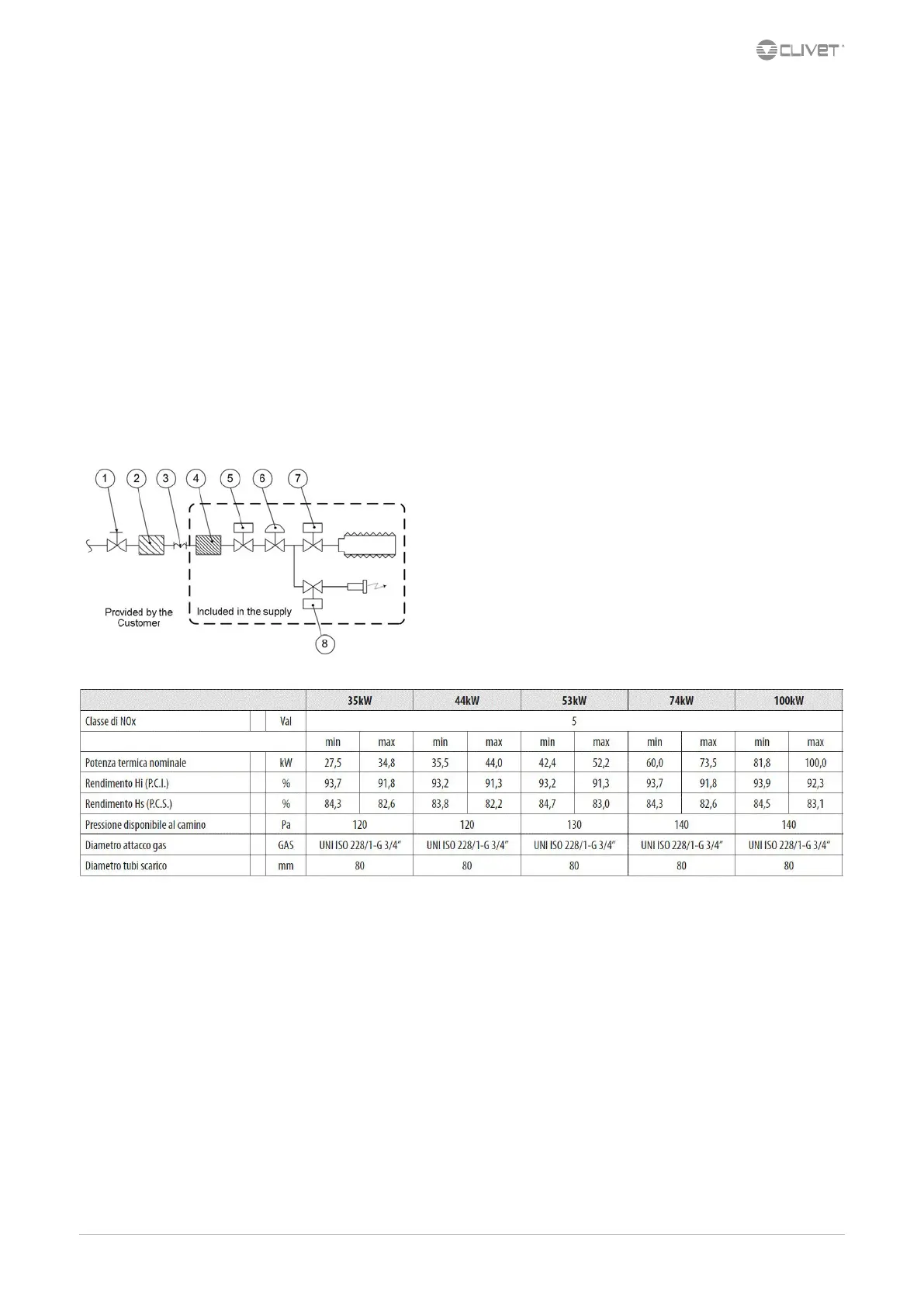

1. GAS COCK
2. GAS FILTER (LARGE SECTION)
3. ANTI-VIBRATION JOINT
4. GAS FILTER (SMALL SECTION)
5. SAFET GAS SOLENOID VLAVE
6. PRESSURE STABILISER
7. MAIN GAS BURNER SOLENOID VALVE
8. PILOT BURNER GAS SOLENOID VALVE
