M06K40A18-00 CKN-XHE2i 7.1-14.2 17

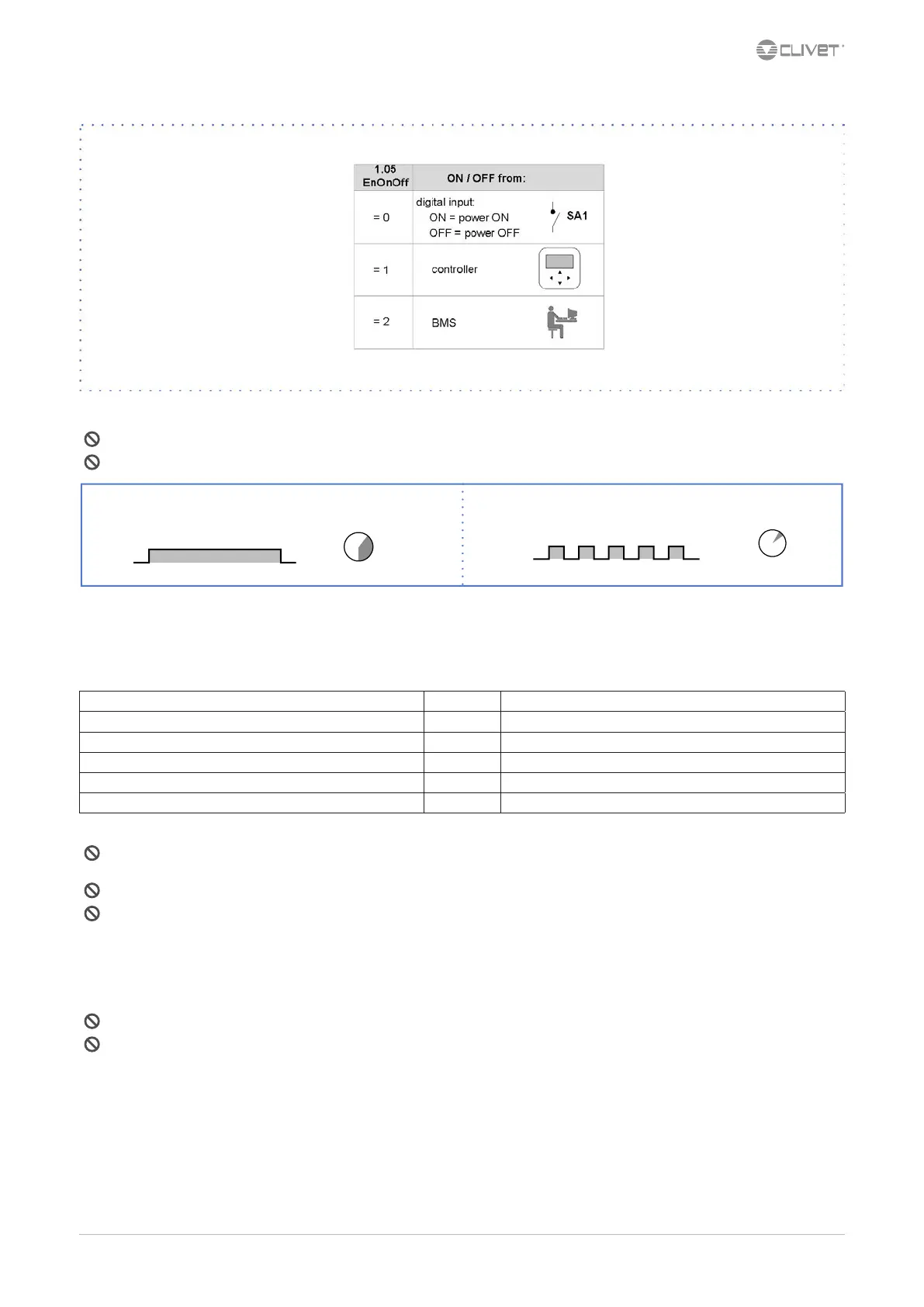

6.6 Remote ON-OFF
Do not perform short On O cycles
Do not use the remote On O with thermoregulation function.
A B
A B
YES NO !
B
A
B
6.7 Wall mounted electronic room control
Before proceeding, make sure you have:
Name Quantity Notes
Controller 1 KJRH-120H/BMKO-E
Half-round Phillips head mounting screw 3 GB950-86 M4X20 For mounting on wall
Half-round Phillips head mounting screw 2 M4X25 GB823-88 For mounting on electrical junction box
Plastic bolt 2 To install the controller inside the switch box
Plastic expansion plug 3 For mounting on wall
Do not install in a place subject to ammable gas leaks. Once the ammable gases have leaked and spread around the controller, they could
trigger a re.
Do not place the controller near lamps, in order to prevent potential interferences with the controller signal
Do not install the unit in a place subject to excessive amounts of oil, vapour, sulphide gases. Exposure to these substances may cause the
product to deform and stop working.
The wiring must be suited to the controller’s current rating. If not, electrical dispersions or overheating may occur, which could trigger a re.
The controller operates with a low-voltage circuit. Never connect it to a standard 220 V/380 V circuit or insert it through the same cable
grommet of the circuit.
The shielded cable must be stably grounded, or the transmission might fail.
After making the connections, do not use the insulation tester to check the signal cable’s insulation.
Do not apply any external force on the terminal. This may cause the wires to break or overheating, which could trigger a re.
