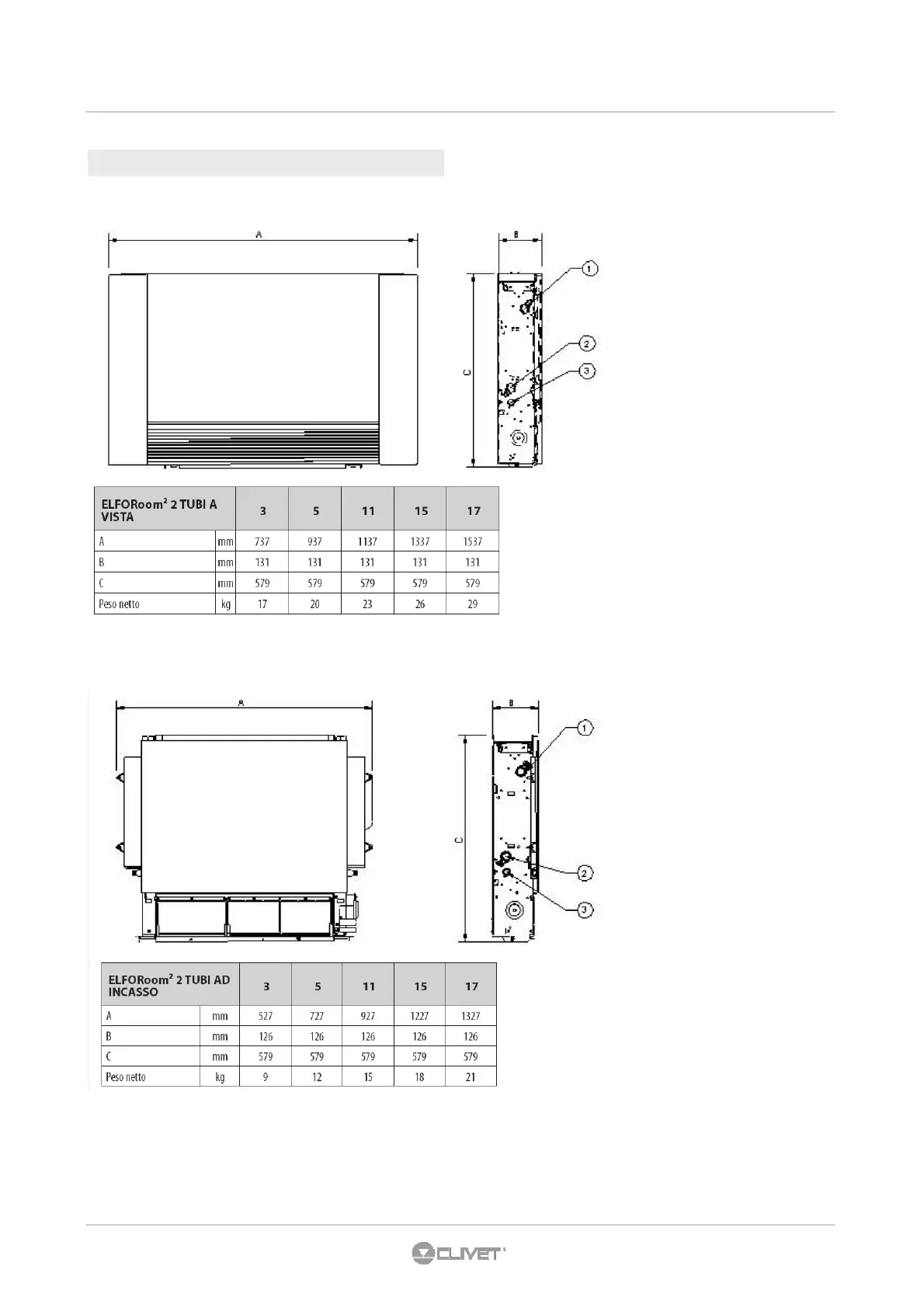

9.1 DIMENSIONALI
9 - INFORMAZIONI TECNICHE
(1) INGRESSO ACQUA SC
AMBIATORE EURO
KONUS 3/4
(2) USCITA ACQUA S
CAMBIATORE EUROKON
US 3/4
(3) TUBO SCARICO C
ONDENSA Ø 14 MM
Versione ad incasso - 2 tubi
Versione a vista - 2 tubi
38
37
39
