CLIVET WSAN-EE 21 - Page 44

M02R40C8-00 29/07/08 page 44
Size 41-51
"G"
W2
W4
W1
W3
(12)
150
(12)
100
(12)
500
M N
PO
157 510 133
336
300
335.5
800
1244
98
159
209
75
1
1
2
3
3
4
5
6
7
7
8
8
9
10
11

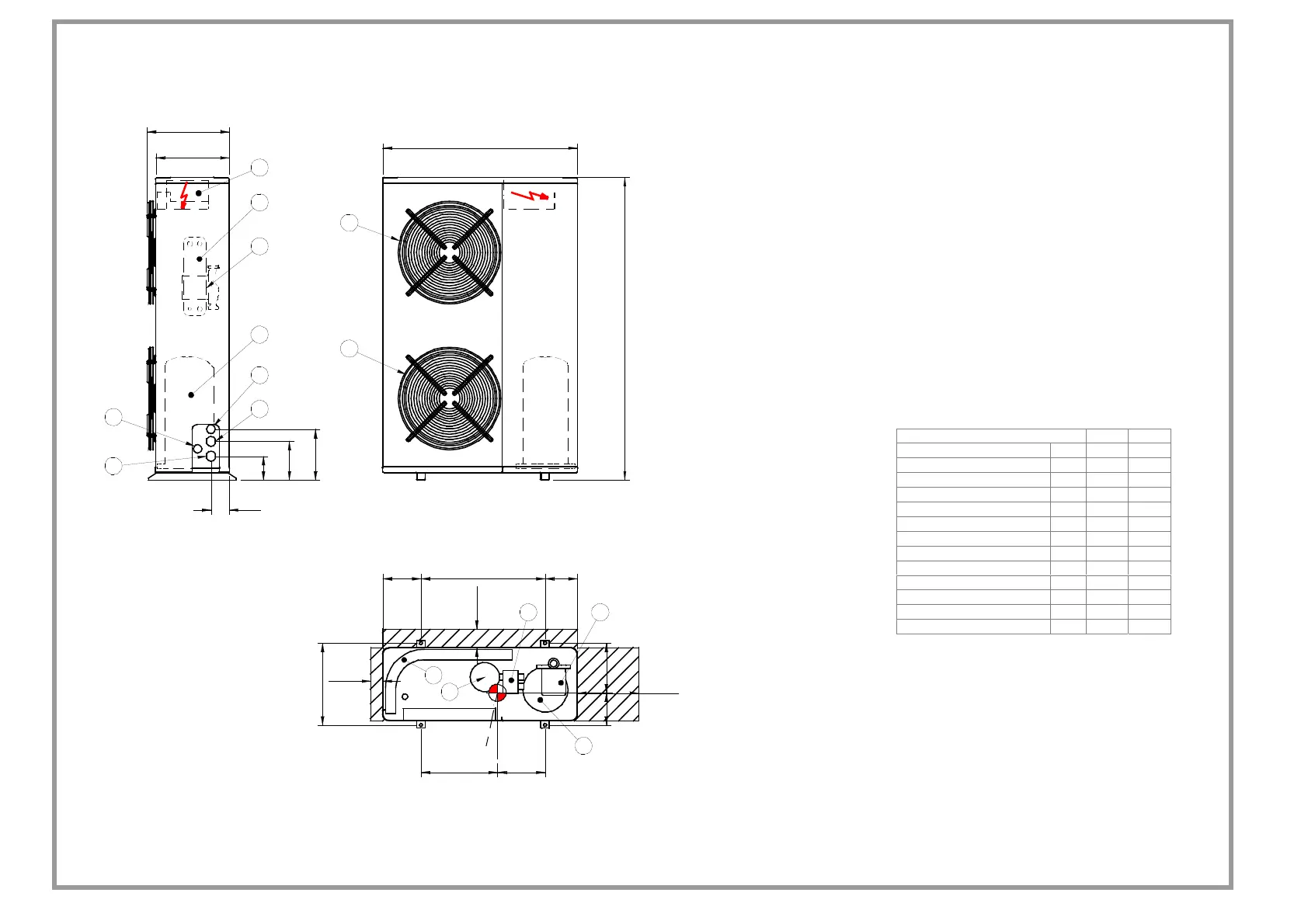

The units require minimum clearances for operation and maintenance. The following sketch describes the minimum clearances to be considered. In the event of multiple units, the functional clearances
must be doubled.
(1) COMPRESSOR
(2) EXTERNAL EXCHANGER
(3) INTERNAL EXCHANGER
(4) ELECTRICAL PANEL
(5) WATER INLET 1" GAS
(6) WATER OUTLET 1" GAS
(7) HELICAL FANS
(8) PUMP
(9) WATER SIDE SAFETY VALVE
(10) POWER INPUT
(11) EXPANSION VESSEL
(12) CONDENSATE DISCHARGE
(13) CLEARANCE ACCESS RECOMMENDED
("G") BARYCENTRE
SIZE
41 51
M mm 344 359
N mm 166 151
O mm 148 147
P mm 188 189
Length mm 800 800
Depth mm 300 300
Height mm 1244 1244
W1 kg 33 37
W2 kg 16 16
W3 kg 42 47
W4 kg 20 20
Operating weight kg 111 120
Shipping weight kg 113 122
