M02R40C8-00 29/07/08 page 45
Size 61-71
411
1174
1040
80
344
15 1057 15
"G"
117 823 148
80
150
100
148
365
2020
2
3
4
5
6
7
488
5
5
8
9
10
3
6
(12)
(12)
500
(12)
11
11
1
P
0
MN
W1
W4
W2
W3
116
13
13

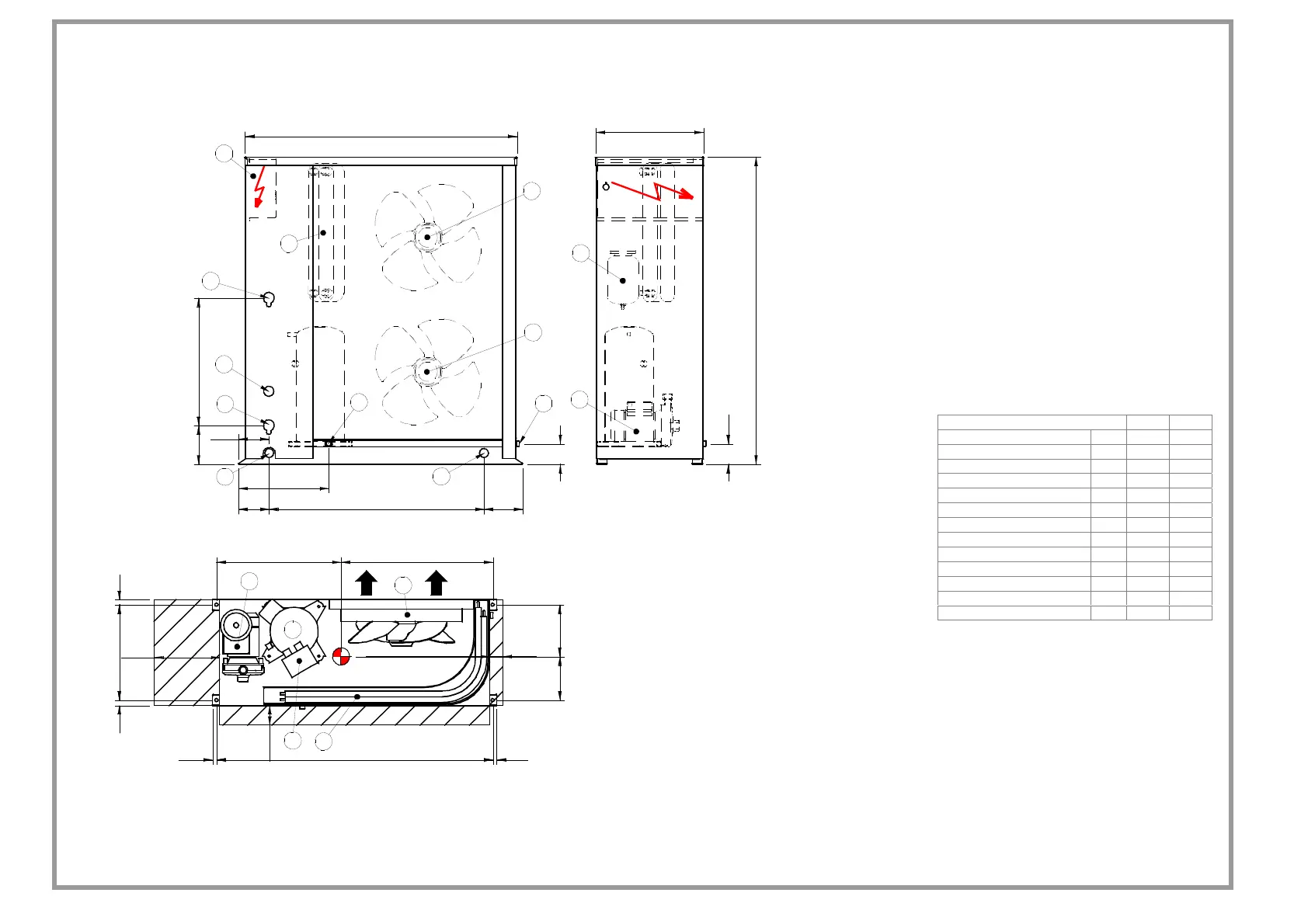

The units require minimum clearances for operation and maintenance. The following sketch describes the minimum clearances to be considered. In the event of multiple units, the functional clearances
must be doubled.
(1) COMPRESSOR
(2) ELECTRICAL PANEL
(3) INTERNAL EXCHANGER
(4) EXTERNAL EXCHANGER
(5) HELICAL FANS
(6) PUMP
(7) EXPANSION VESSEL
(8) WATER OUTLET (STANDARD UNIT)
(9) WATER INLET (STANDARD UNIT)
(10) POWER INPUT
(11) CONDENSATE DISCHARGE
(12) CLEARANCE ACCESS RECOMMENDED
(13) LIFTING HOLES
("G") BARYCENTRE
SIZE 61 71
M mm 630 632
N mm 427 425
O mm 149 149
P mm 216 216
Length mm 1087 1087
Depth mm 411 411
Height mm 1175 1175
W1 kg 44 46
W2 kg 30 31
W3 kg 31 32
W4 kg 21 21
Operating weight kg 126 129
Shipping weight kg 132 135
