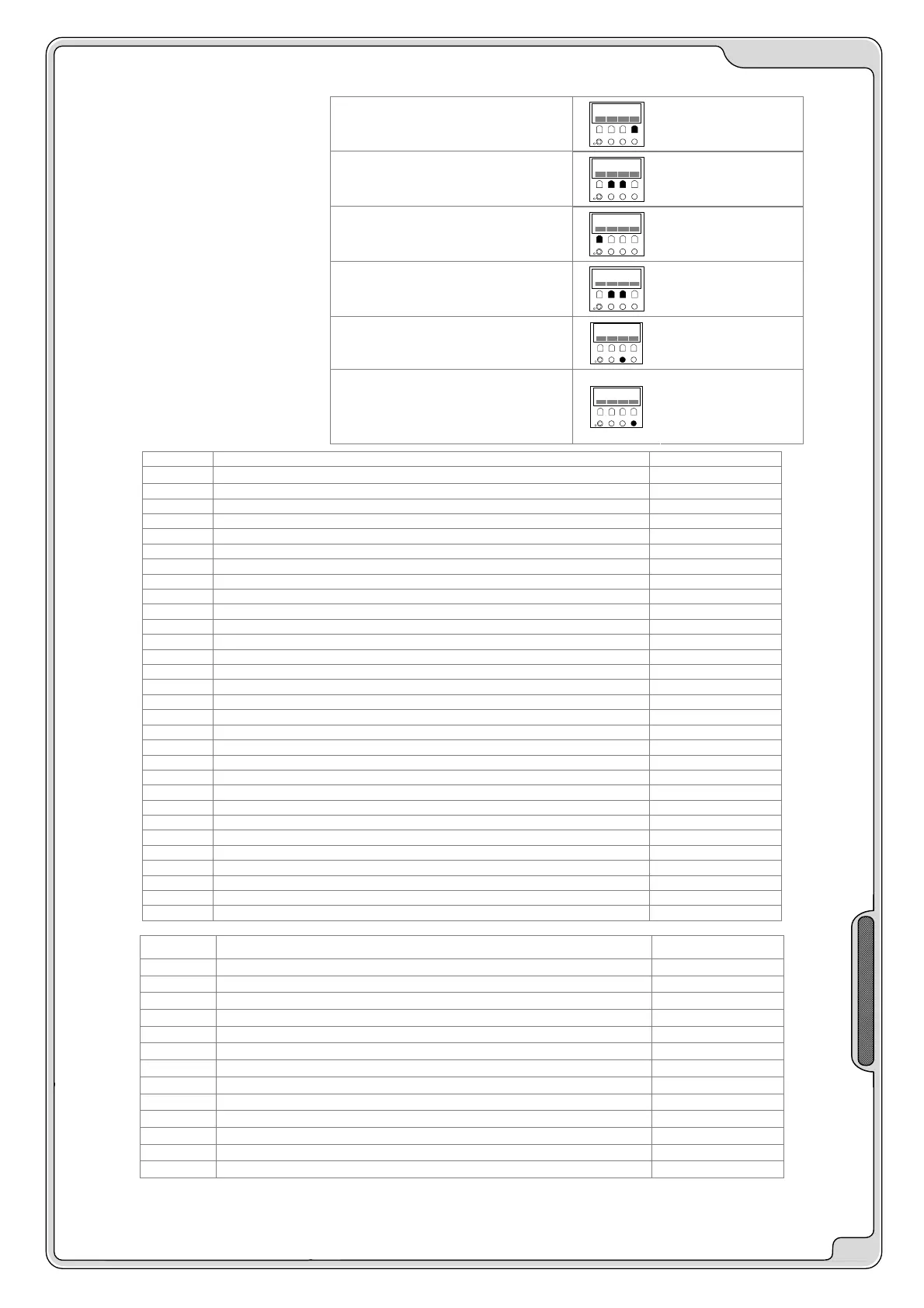

To enter in the STATA menu
?
ESC
I
HOME
button F4 STATE
To select the module
?
ESC
I
HOME
buttons ▲▼ F2 – F3
To access
?
ESC
I
HOME
button F1 ENTER
To scroll the stata
?
ESC
I
HOME
buttons ▲▼ F2 - F3
To go back a level of the menu
?
ESC
I
HOME
button ESC
submenu:
GENERALS
UNIT 1
mod_comp1
mod_comp2
mod_comp3
mod_evap
UNIT 2
mod_comp1
mod_comp2
mod_comp3
mod_evap
To go back to the main menu
?
ESC
I
HOME
button HOME
Index GENERAL stata UM
0
Machine status
1=ON / 0=OFF
1 Machine mode 0=Cool, 1= Heat
2 Actual set point °C ( tenths )
3 Inlet temperature °C (tenths)
4 Outlet temperature °C (tenths)
5 Number of steps activated
6 Current step value (compensations) °C (tenths)
7 Step activation timer sec
8 Step activation dynamic TimeScan sec
9 CompExt °C (tenths)
10 CompWR °C (tenths)
11 CompCar °C (tenths)
12 CompSpunti °C (tenths)
13 CompDuty °C (tenths)
14 Ambient temperature °C (tenths)
15 Ambient humidity %
16 Free Cooling valve percentage %
17 Free Cooling flow percentage %
18 Free Cooling valve control 1=ON / 0=OFF
19 Pump 1 status 1=ON / 0=OFF
20 Pump 2 status 1=ON / 0=OFF
21 Water Reset %
22 Demand Limit %
60 Digital input bit map of a byte
68 Water flow analogic out
69 Pump module digital out bit map of a byte
71 BitMap connected nodes MS bit map of a byte
72 Hours pump 1 PMP
73 Hours pump 2 PMP
74 Hours pump 3 PMP
Index UNIT_1 – MOD COMP_1 Stata UM
29 Compressor 1 1=ON / 0=OFF
30 Compressor 2 1=ON / 0=OFF
31 Compressor 3 1=ON / 0=OFF
32 Cp 1 timer status 1=ON / 0=OFF
33 Cp 2 timer status 1=ON / 0=OFF
34 Cp 3 timer status 1=ON / 0=OFF
35 Valve 1 c1 status 1=ON / 0=OFF
36 Valve 2 c1 status 1=ON / 0=OFF
37 Valve 3 c1 status 1=ON / 0=OFF
38 Valve 1 c2 status 1=ON / 0=OFF
39 Valve 2 c2 status 1=ON / 0=OFF
40 Valve 3 c2 status 1=ON / 0=OFF
41 Valve 1 c3 status 1=ON / 0=OFF
To Next Page
