An alarm list is associated with the inputs of each electronic module of the unit.
According to the unit configuration, and then with electronic modules and options, some lists and/or ALARMS can not be
used.

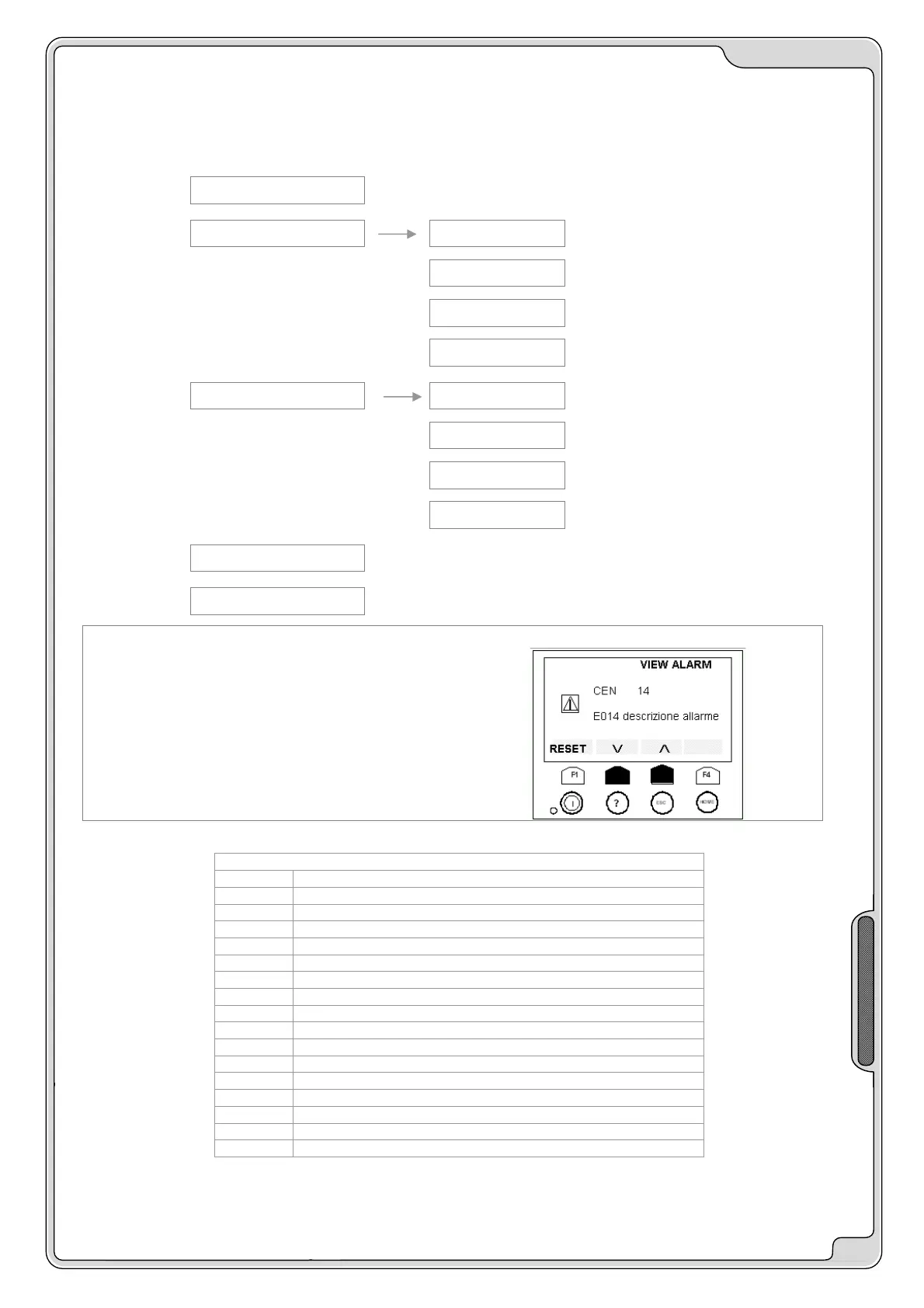

ALARM STRUCTURE
CENTRAL
Unit_1 Mod_comp1
Mod_comp2
Mod_comp3
Mod_Evap
Unit_2 Mod_comp1
Mod_comp2
Mod_comp3
Mod_Evap
PUPMS – PMP
RECOVERY – REC1
example
CEN : central module alarm
14 : alarm identificative string
E014 : alarm description
CENTRAL MODULE
Str Name
1 E001 H2O IN temp. probe fault on control module
2 E002 H2O OUT temp. probe fault on control module
3 E003 Outside air temp. probe fault
4 E004 Water Reset input fault
5 E005 Outside RH% probe fault
6 E006 Thermal cut-out alarm pump 1 on control module
7 E007 Thermal cut-out alarm pump 2 on control module
8 E008 Flow switch alarm on control module
9 E009 System pressure alarm
10 E010 Phase monitor alarm
11 E011 Antifreeze alarm on control module
12 E012 Antifreeze pre-alarm on control module
13 E013 Change CENTRAL pump
14 E014 Unit configuration alarm
15 E015 Demand Limit input fault
16 E016 Can net disconnectedness on control module
