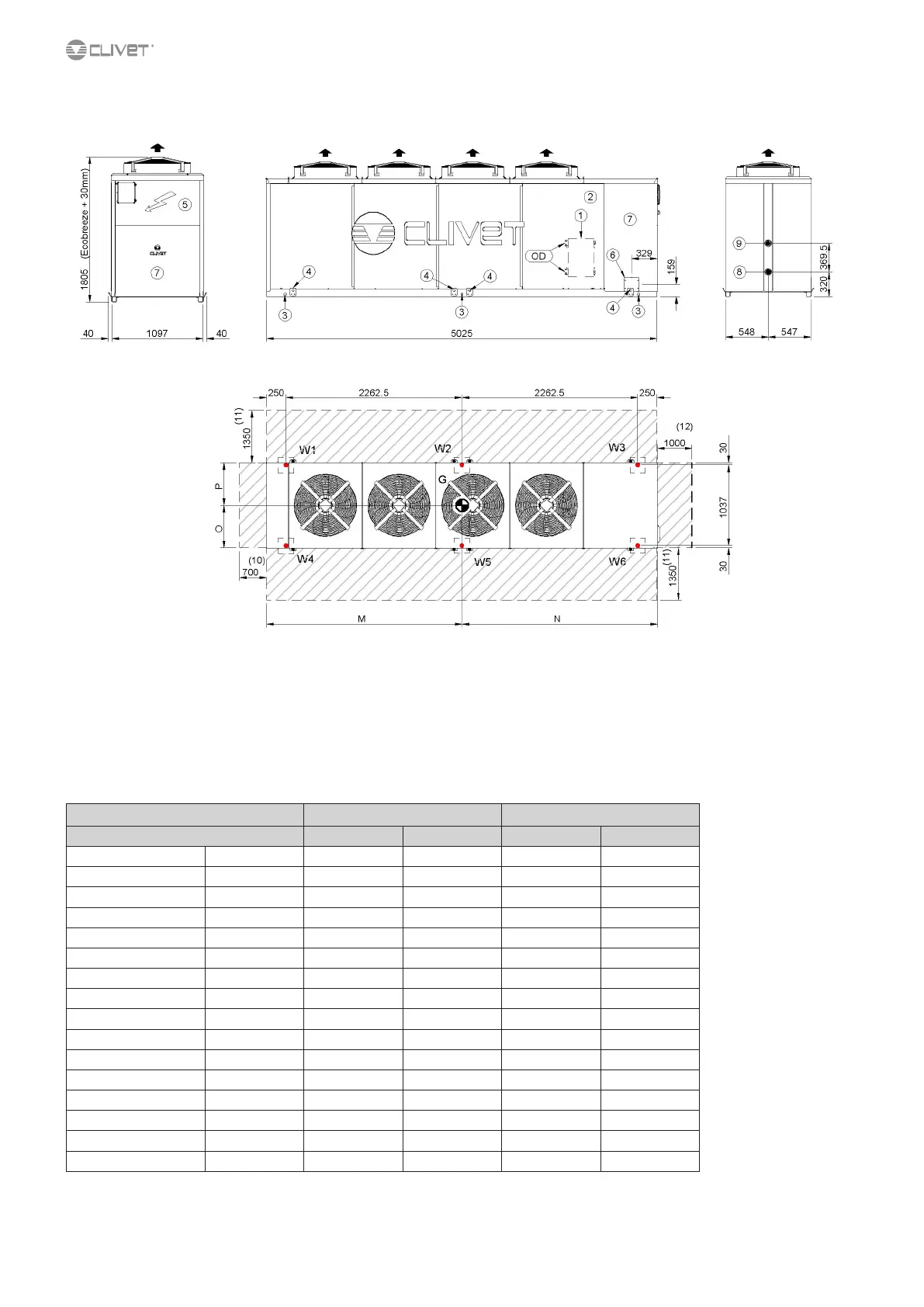

WSAT-XEE 702-802
1. Internal exchanger (evaporator)
2. External exchanger (condenser)
3. Unit xing holes
4. Lifting brackets (removable, if required, after positioning the unit)
5. Electrical panel
6. Power input
7. Soundproofed cabin
8. Internal exchanger water outlet. The heights of the connections may change if
there are optional components: pump, storage tank, free-cooling, partial or total
recovery.
9. Internal exchanger water inlet. The heights of the connections may change if
there are optional components: pump, storage tank, free-cooling, partial or total
recovery.
10. Minimum Safe Clearance
11. Minimum Clearance for a Proper Air ow to the Condenser
12. Minimum Clearance Electrical Panel Side
(G) Centre of gravity
SC-EXC EN-EXC
Size 702 802 702 802
M mm 3216 3227 3216 3227
N mm 1809 1798 1809 1798
O mm 564 565 564 565
P mm 533 532 533 532
OD mm 76 76 76 76
Length mm 5025 5025 5025 5025
Depth mm 1097 1097 1097 1097
Height mm 1805 1805 1805 1805
W1 Supporting Point kg 114 115 114 115
W2 Supporting Point kg 284 292 284 292
W3 Supporting Point kg 374 389 374 389
W4 Supporting Point kg 108 109 108 109
W5 Supporting Point kg 306 315 306 315
W6 Supporting Point kg 312 323 312 323
Shipping weight kg 1483 1527 1483 1527
Operating weight kg 1497 1544 1497 1544
The presence of optional accessories may result in a substantial variation of the weights shown in the table.
