Operations sequence
Before starting the unit pump :
1 close all vents in the high points of the unit’s water circuit.
2 close all drain shut-off valves in the low points of the unit’s
water circuit:
Heat exchangers
Pumps
collectors
storage tank
3 Wash the system thoroughly with clean water:
use the bypass to exclude the exchanger from the flow
(diagram on the previous page)
fill and empty the system multiple times.
4 Apply additives to prevent corrosion, fouling, formation of mud
and algae.
5 Fill the system
Do not use the unti pump.
6 Conduct a leak test.
7 Isolate the pipes to avoid heat dispersions and formation of
condensate.
8 Leave various service points free (wells, vents, etc).
Note
Neglecting to wash will lead to the filter having to be cleaned
many times and at worst may damage the exchangers and
other parts

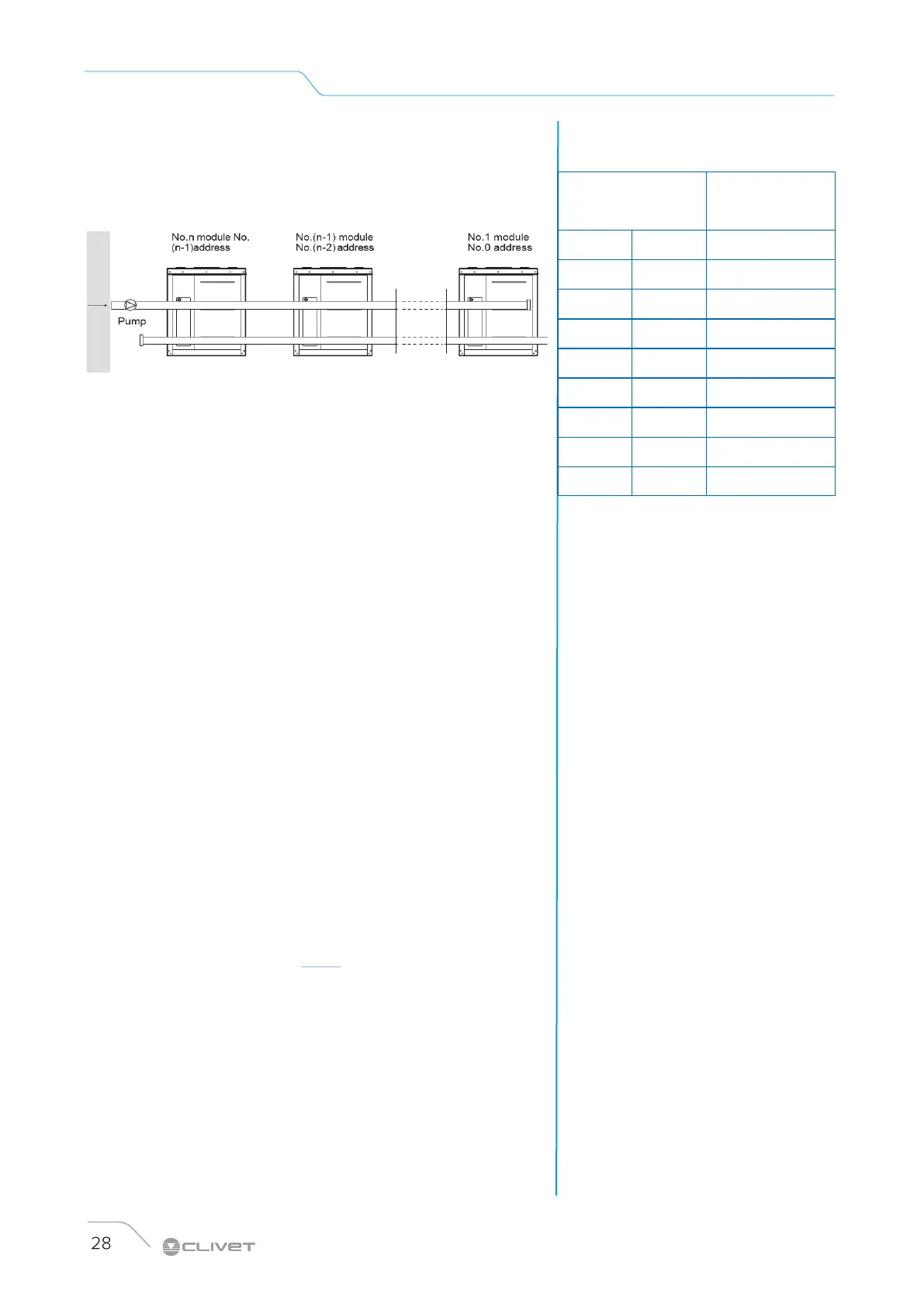

Input and output manifolds
Cooling (Kw)
Min Max
Piping water
IN-OUT
15 30 DN40
30 90 DN50
90 130 DN65
130 210 DN80
210 325 DN100
325 510 DN125
510 740 DN150
740 1300 DN200
1300 2080 DN250
