CLIVET WSH-EE Series User Manual

Size 61-121

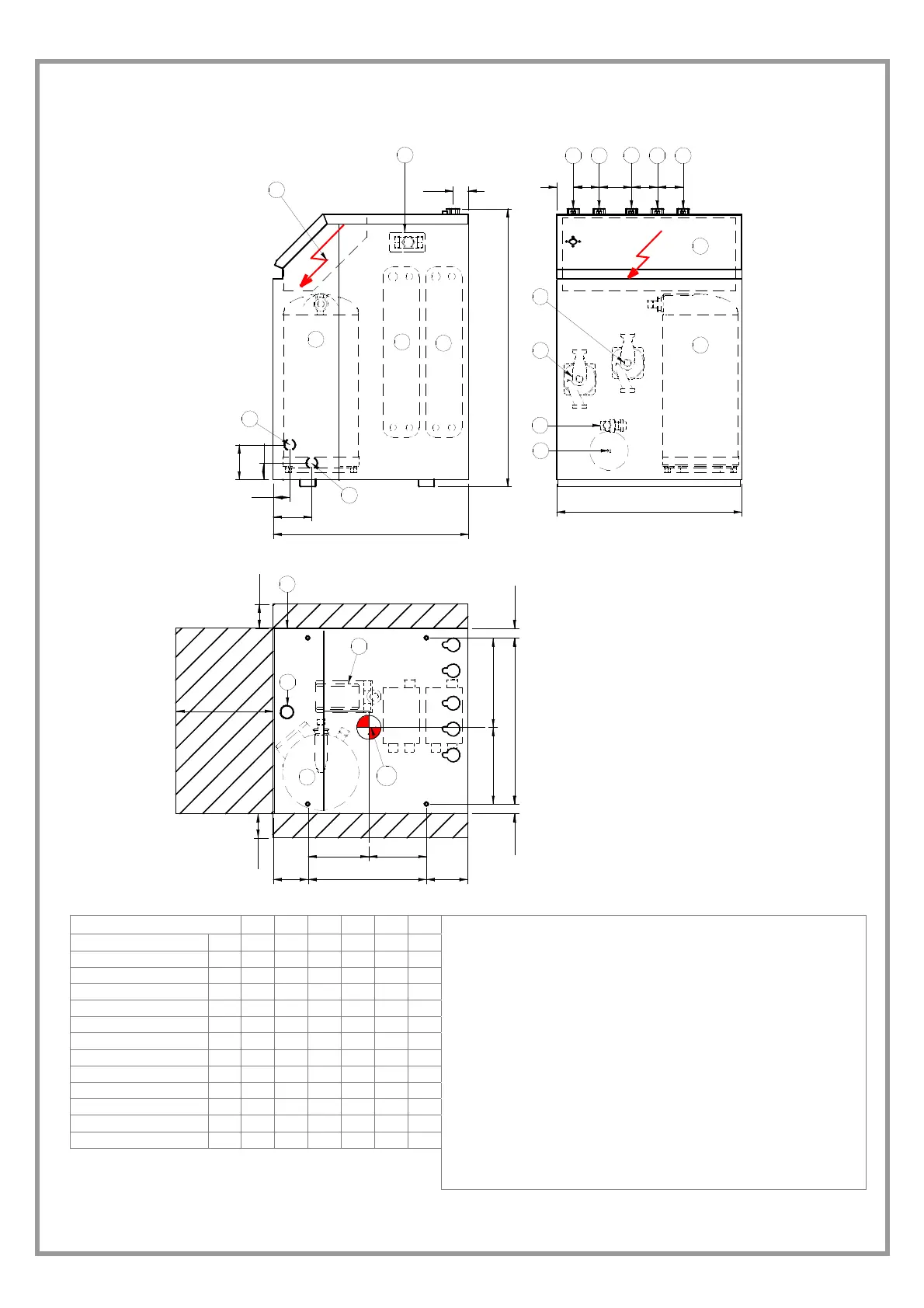

W1
W2
W4
W3
573
604
80 100 80 8050
M N
46
1
1
1
3
2
4
4
5 6 78 9
13
10
11
29.551329.5
(15)
600
(15)
150
14
10
(15)
150
OP
858
107.5 367 127.5
16
"G"
12
17
18
52
120
51
108
19
SIZE 61 71 81 91 101 121
M mm
152 165 173 174 175 182
N mm
215 202 197 193 192 185
O mm
285 300 330 333 336 331
P mm
228 213 186 180 177 182
Length mm
573 573 573 573 573 573
Depth mm
604 604 604 604 604 604
Height mm
858 858 858 858 858 858
W1 kg
19 29 41 46 48 53
W2 kg
45 47 55 59 59 56
W3 kg
15 20 21 23 23 27
W4 kg
35 32 26 29 29 28
Operating weight kg
114 128 143 157 159 164
Shipping weight kg
111 125 140 153 155 160
(1) COMPRESSOR
(2) INTERNAL EXCHANGER = UTILITY SIDE EXCHANGER
(3) EXTERNAL EXCHANGER = SOURCE SIDE EXCHANGER
(4) ELECTRICAL PANEL
(5) INTERNAL EXCHANGER WATER INLET
(6) INTERNAL EXCHANGER WATER OUTLET
(7) EXTERNAL EXCHANGER WATER INLET
(8) EXTERNAL EXCHANGER WATER OUTLET
(9) SANITARY WATER OUTLET 1"F GAS (OPTIONAL)
(10) UTILITY SIDE PUMP (STANDARD)
(11) EXPANSION VESSEL
(12) WATER SIDE SAFETY VALVE
(13) SOURCE SIDE PUMP (OPTIONAL)
(14) 3 WAYS-VALVE (OPTIONAL)
(15) CLEARANCE ACCESS RECOMMENDED
(16) POWER INPUT
(17-19) 1/2" GAS CHARGE FITTINE (SIZES 61-71-81-91)
(18-19) 1/2" GAS CHARGE FITTINE (SIZES 101-121)
(G) BARYCENTRE
