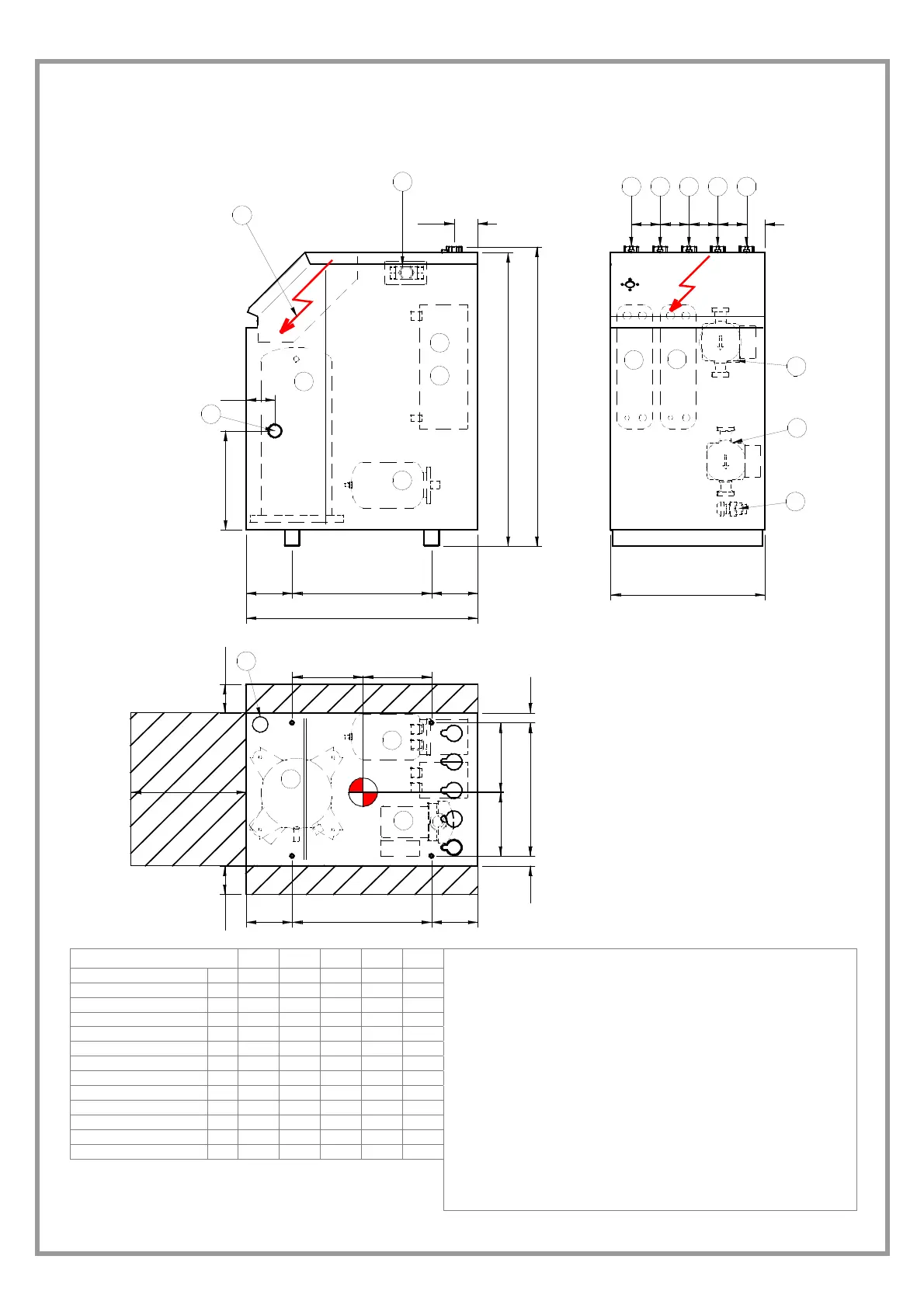

DIMENSIONS
Size 17-51
602
402
119.5 363 119.5
770
785
61
4875757575
W1
W4
W2
W3
119.5 363 119.5
M N
"G"
1
2
3
785 6
11
4
11
10
2
3
9
13
10
14
1
(15)
150
(15)
150
(15)
600
2635026
OP
16
17
260
75
12
SIZE 17 21 31 41 51
M mm 180 176 181 193 175
N mm 186 187 186 170 188
O mm 170 170 168 168 170
P mm 180 180 182 182 180
Length mm 402 402 402 402 402
Depth mm 602 602 602 602 602
Height mm 785 785 785 785 785
W1 kg 18 18 20 20 22
W2 kg 20 21 21 22 27
W3 kg 20 19 21 22 24
W4 kg 22 23 23 24 29
Operating weight kg 80 81 85 88 102
Shipping weight kg 78 79 83 85 99
(1) COMPRESSOR
(2) INTERNAL EXCHANGER = UTILITY SIDE EXCHANGER
(3) EXTERNAL EXCHANGER = SOURCE SIDE EXCHANGER
(4) ELECTRICAL PANEL
(5) INTERNAL EXCHANGER WATER INLET
(6) INTERNAL EXCHANGER WATER OUTLET
(7) EXTERNAL EXCHANGER WATER INLET
(8) EXTERNAL EXCHANGER WATER OUTLET
(9) SANITARY WATER OUTLET 1"F GAS (OPTIONAL)
(10) UTILITY SIDE PUMP (STANDARD)
(11) EXPANSION VESSEL
(12) WATER SIDE SAFETY VALVE
(13) SOURCE SIDE PUMP (OPTIONAL)
(14) 3 WAYS-VALVE (OPTIONAL)
(15) CLEARANCE ACCESS RECOMMENDED
(16) POWER INPUT
(17) 1/2" GAS CHARGE FITTING
(G) BARYCENTRE
