9. Connectors Definition
CDC6 multi-functional LCD display equip with connection cable, the connector that connected to
the button is BM-JHBM-04M, the connector that connected to the controller is BM-JHBM-06G, CDC6
display can widely match the battery of 24V/33V/36V/48V/52V voltage.

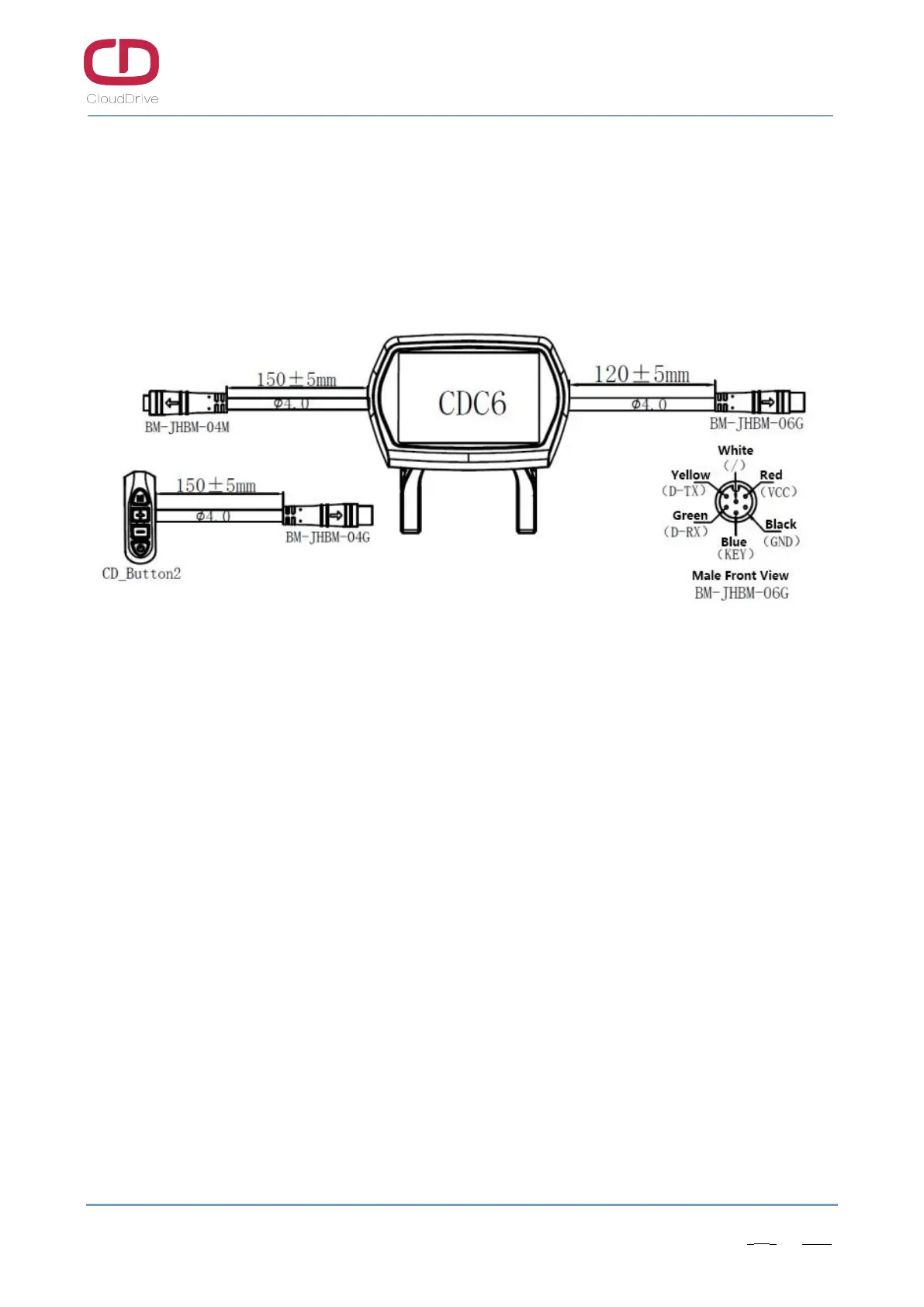

Figure9-1 Connector definition
