Z4II & Z8II Installation and User Manual v1.06
control of zone music level and source. The music ducking
facility is also provided for the mic input. See page 12
(Connecting an LM-1 remote input plate) and page 18 (LM-1
and DM-1 active input plates) for more information.
RL-1 Remote Music Level Control
MUSIC LEVEL
0
1
2
3
4
5
6
7
8
9
10
RL-1
g.3: RL-1
The RL-1 is a small plate with a single control for locally
adjusting the music level in a zone. It is connected to one of
the mixer’s Music Control Ports. See page 14 (Connecting an
RL-1 remote control plate) and page 19 (RL-1 and RSL-6 Remote
control plates) for more information.
RSL-6 Remote Music Level/Source Control
0
2
3
4
5
6
1
2
3
4
5
6
7
8
9
10
SOURCE SELECT
MUSIC LEVEL
RSL- 6
1
g.4: RSL-6
The RSL-6 is the same size as the RL-1 and connects in a
similar way; it allows local music source selection as well as
music level control. See page 15 (Connecting an RSL-6 remote
control plate) and page 19 (RL-1 and RSL-6 Remote control
plates) for more information.

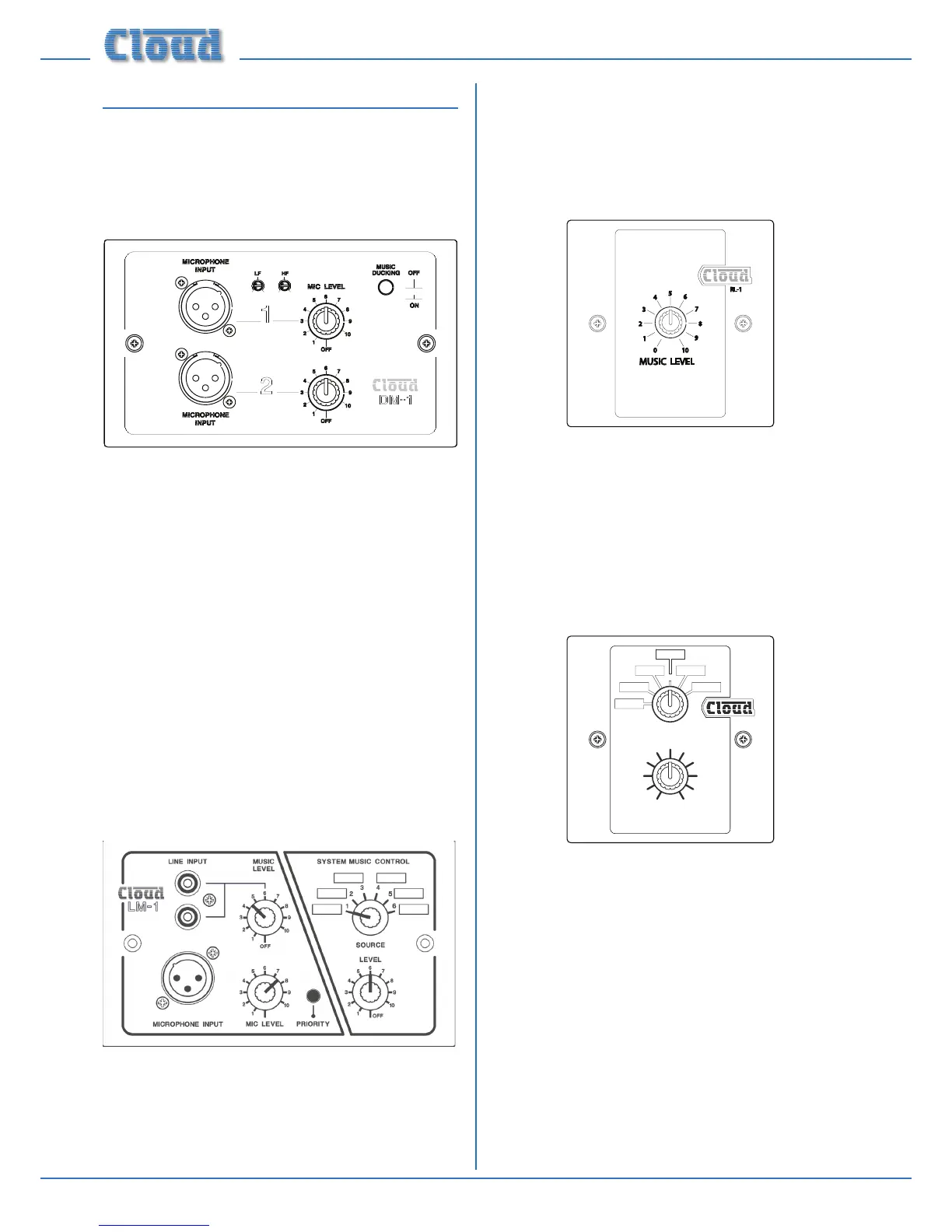

Optional System Components
The following components may form part of the audio
system and may be ordered separately if required. They may
also be retrotted to a system at a later time.
DM-1 Dual Microphone Input Module
g.1: DM-1
The DM-1 is an active input plate which allows one or two
microphones to be connected to the Zone Mixers in a
remote location. Each microphone has its own level control,
and overall preset HF/LF EQ controls are also provided. A
Music Ducking button activates the Zone Mixer’s priority
circuitry; when enabled, a microphone signal from the DM-1
will reduce the music level in the zone where it is installed.
The DM-1 connects to one of the unit’s Facility Ports,
and the microphone signals are fed to that zone only. The
mixer’s Mic 1 and Mic 2 inputs remain available. Multiple
DM-1s (in the same zone) may be daisy-chained to provide
mic inputs in more than one position. The DM-1 ts a
standard UK-style dual-gang electrical back box. See page
12 (Connecting a DM-1 remote input plate) and page 18 (LM-1
and DM-1 active input plates) for more information.
LM-1 Mic/line input module with remote
music control
g.2: LM-1
The LM-1 resembles the DM-1, but has one microphone
and one stereo line input, which provides a convenient
access point for the connection of a DJ mixer, laptop, MP3
player or similar. The plate also includes the functions of
the RSL-6 Remote Control Plate (see below), permitting
