Cloud Z8II User Manual

Z4II & Z8II Installation and User Manual v1.0 7
PM Series Paging Microphones
g.5: PM16
Cloud PM paging microphones may be connected directly to
the Z8II and Z4II. Models are available which can page to 4, 8,
12 or 16 zones. Clearly, not all zones on the ‘higher’ models
can be addressed with only one zone mixer. See page 13
(Connecting a PM4/8/12/16 paging mic) for more information.

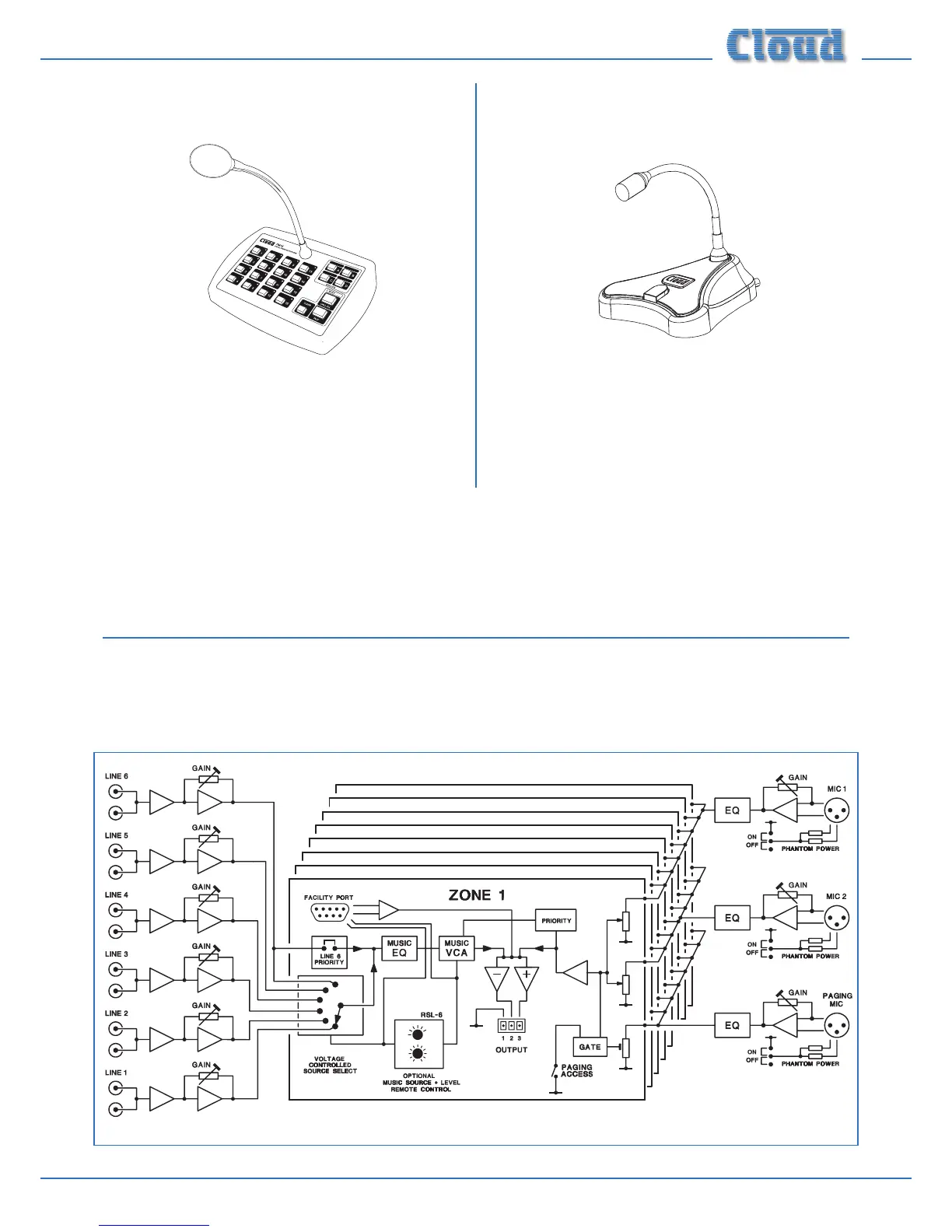

g.7: Z8II Block Diagram
Block Diagram
The simplied block diagram below illustrates the basic signal architecture of the Z8II. Only the routing and logic for one zone
output is shown. The architecture of the Z4II is identical, the only difference being the number of zone outputs.
PM1 Paging Microphone
g.6: PM1
The Cloud PM1 paging microphone is also compatible with
the Z8II and Z4II. It is a much simpler unit which addresses
only one zone. See page 14 (Connecting a PM1 paging mic) for
more information.
