Cloudray 3DM580S - Drive installation dimensions; Drive installation requirements

3DM580S USER MANUAL
www.cloudraymotor.com
2
Vibration
0.5G
（
4.9m/s
2
）
Max
Operating temperature/humidity
0℃ ~ 45℃ / 90% RH or less (no condensation)
Storage and transportation temperature:
-10℃ ~ 70℃
Cooling
Natural cooling / away from the heat source
Waterproof grade
IP54

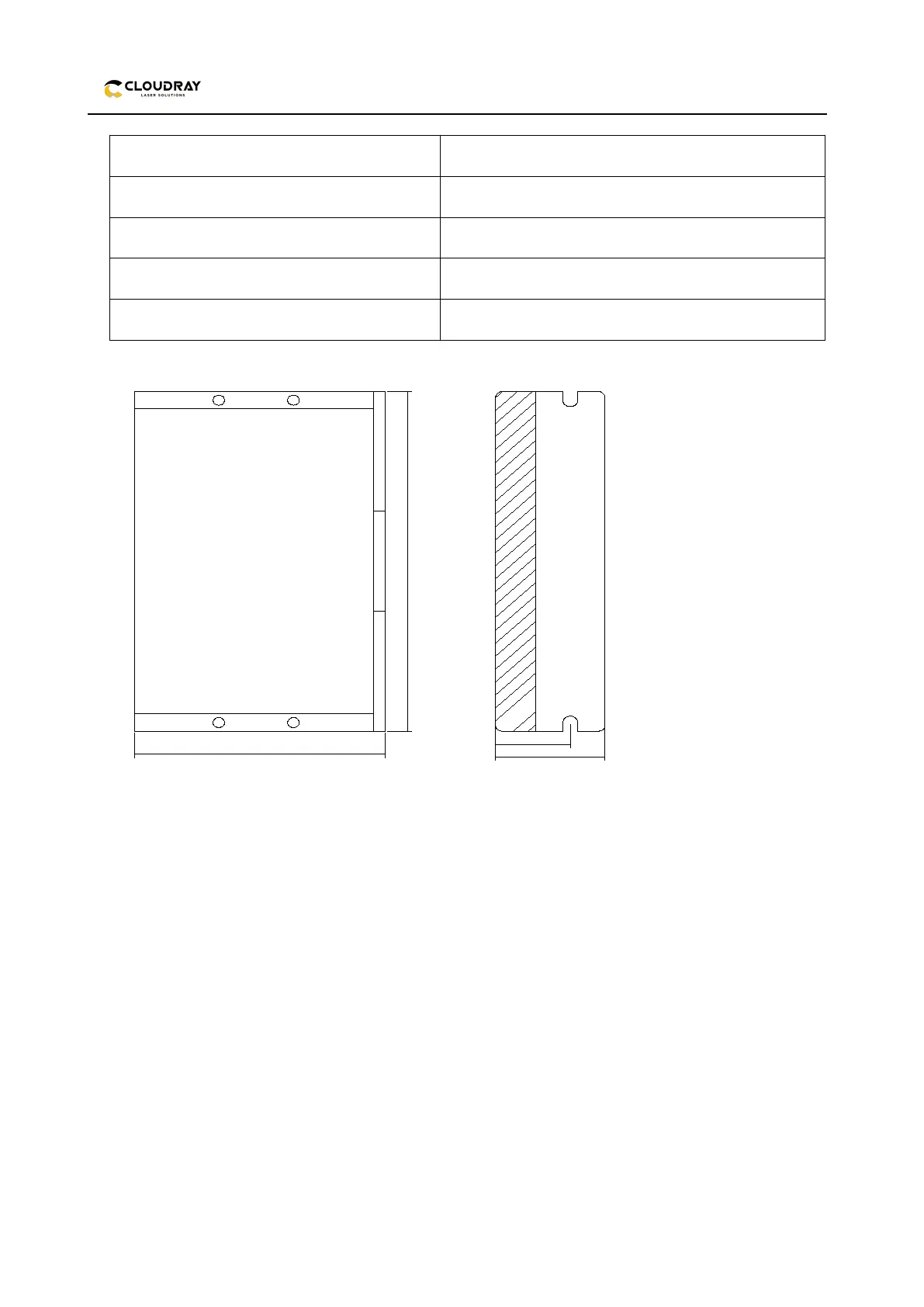

2.2 Drive installation dimensions
75.5
33
22.5
118
2.3 Drive installation requirements
Please install the drive vertically or horizontally, with its front facing forward, top facing upward to facilitate
cooling.
During assembly, avoid drillings and other foreign matters falling inside the drive.
During assembly, please use M3 screw to fix.
When there is vibration source (such as a driller) close to the installation position, please use a vibrating
absorber or a vibration resistant rubber gasket.
When multiple drives are installed in the control cabinet, please pay attention to reserve enough space for
sufficient heat dissipation. If necessary, you can configure cooling fans to ensure good heat dissipation
conditions in the control cabinet.
