Cloudray DM422S - Drive Installation Dimensions; Drive Installation Requirements

DM422S USER MANUAL
www.cloudratmotor.com
2
Installation environment
Avoid dust, oil and corrosive environment
Vibration
0.5G（4.9m/s
2
） Max
Operating temperature/humidity
0
℃
~ 45
℃
/ 90% RH or less (no condensation)
Storage and transportation temperature:
-10
℃
~ 70
℃
Cooling
Natural cooling / away from the heat source
Waterproof grade
IP54

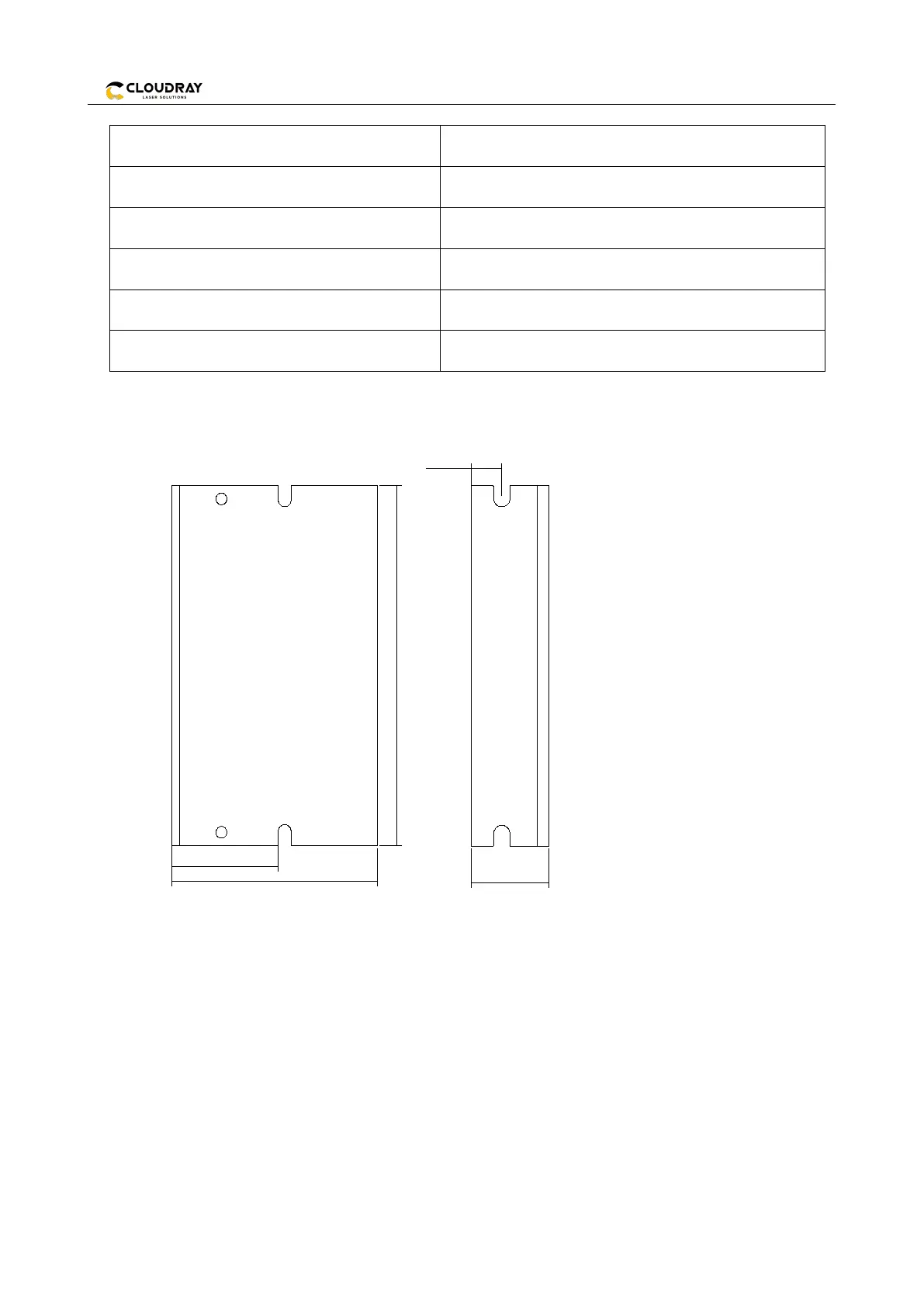

2.2 Drive installation dimensions
56
92.6
29
8.25
21
2.3 Drive installation requirements
Please install the drive vertically or horizontally, with its front facing forward, top facing upward to facilitate
cooling.
During assembly, avoid drillings and other foreign matters falling inside the drive.
During assembly, please use M3 screw to fix.
