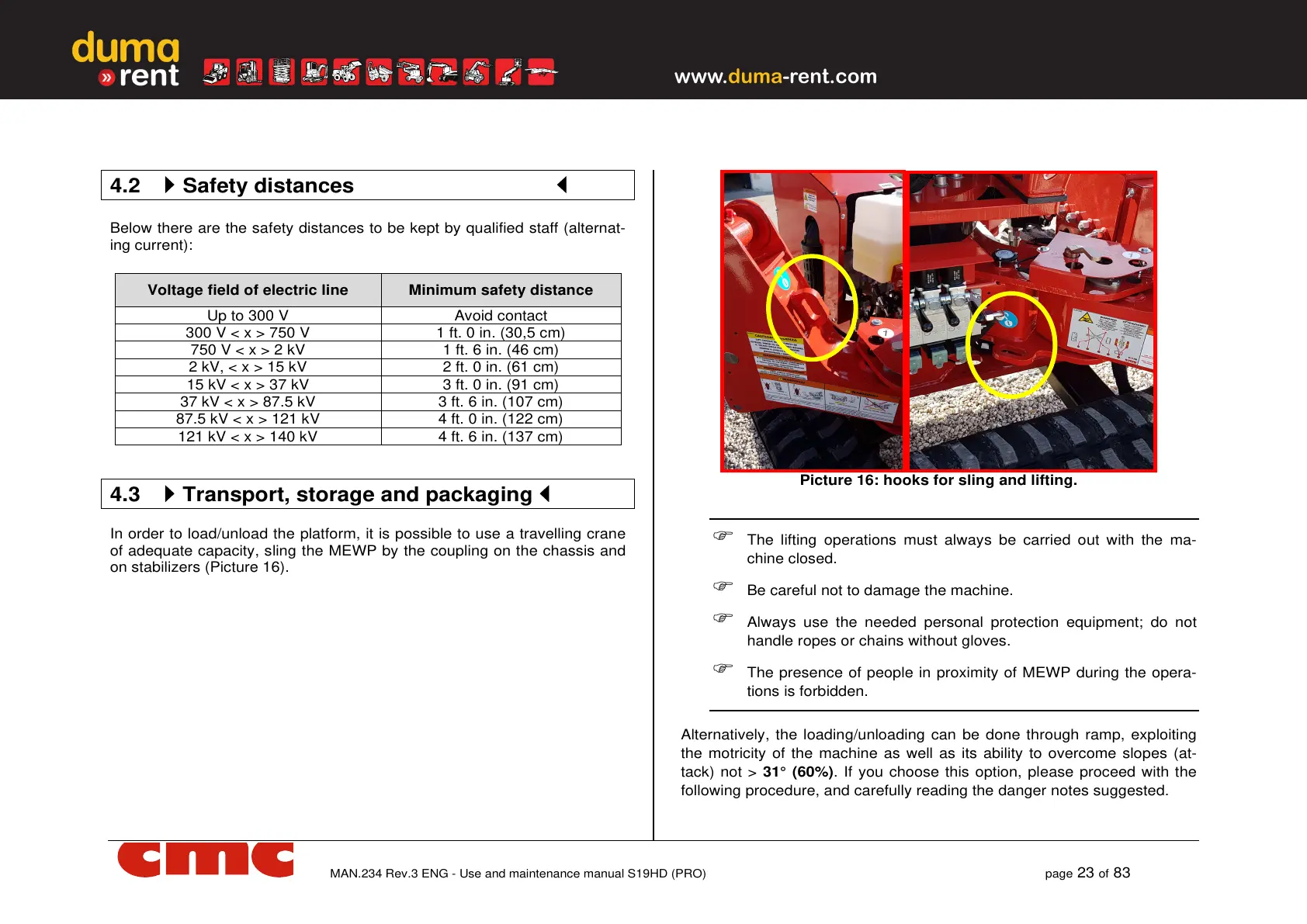

MAN.234 Rev.3 ENG - Use and maintenance manual S19HD (PRO) page 23 of 83
4.2

Safety distances

Below there are the safety distances to be kept by qualified staff (alternat-
ing current):
Voltage field of electric line Minimum safety distance
Up to 300 V
Avoid contact
300 V < x > 750 V
1 ft. 0 in. (30,5 cm)
750 V < x > 2 kV
1 ft. 6 in. (46 cm)
2 kV, < x > 15 kV
2 ft. 0 in. (61 cm)
15 kV < x > 37 kV
3 ft. 0 in. (91 cm)
37 kV < x > 87.5 kV
3 ft. 6 in. (107 cm)
87.5 kV < x > 121 kV
4 ft. 0 in. (122 cm)
121 kV < x > 140 kV
4 ft. 6 in. (137 cm)
4.3

Transport, storage and packaging

In order to load/unload the platform, it is possible to use a travelling crane
of adequate capacity, sling the MEWP by the coupling on the chassis and
on stabilizers (Picture 16).
Picture 16: hooks for sling and lifting.
 The lifting operations must always be carried out with the ma-
chine closed.
 Be careful not to damage the machine.
 Always use the needed personal protection equipment; do not
handle ropes or chains without gloves.
 The presence of people in proximity of MEWP during the opera-
tions is forbidden.
Alternatively, the loading/unloading can be done through ramp, exploiting
the motricity of the machine as well as its ability to overcome slopes (at-
tack) not > 31° (60%). If you choose this option, please proceed with the
following procedure, and carefully reading the danger notes suggested.
