8
Section 4 Maintenance & Service
4A-5.OzoneModuleFiltersandOrice
The air entering the Ozone Modules passes through individual Filters
and an Orice on each Module inlet. The Filters and Orices are
held in place by the rubber Filter Cap. (Refer to Figure 5 for a more
detailed view)
4A-6.InjectorTubeAdapter
This connects the Ozone Gas Line to the Injector Manifold. When
servicing this component, do not tighten past 10 in-lbs or the
component may be damaged.
OZONE
GENERATOR
ASSEMBLY
OZONE GAS
LINE
UV REACTOR
DEL CHECK VALVE
INJECTOR
MANIFOLD
FLOW SWITCH RELAY
NOTE: BALLAST LOCATED
ON ENCLOSURE CEILING
NOT SHOWN
FLOW SWITCH
INJECTOR TUBE
ADAPTER

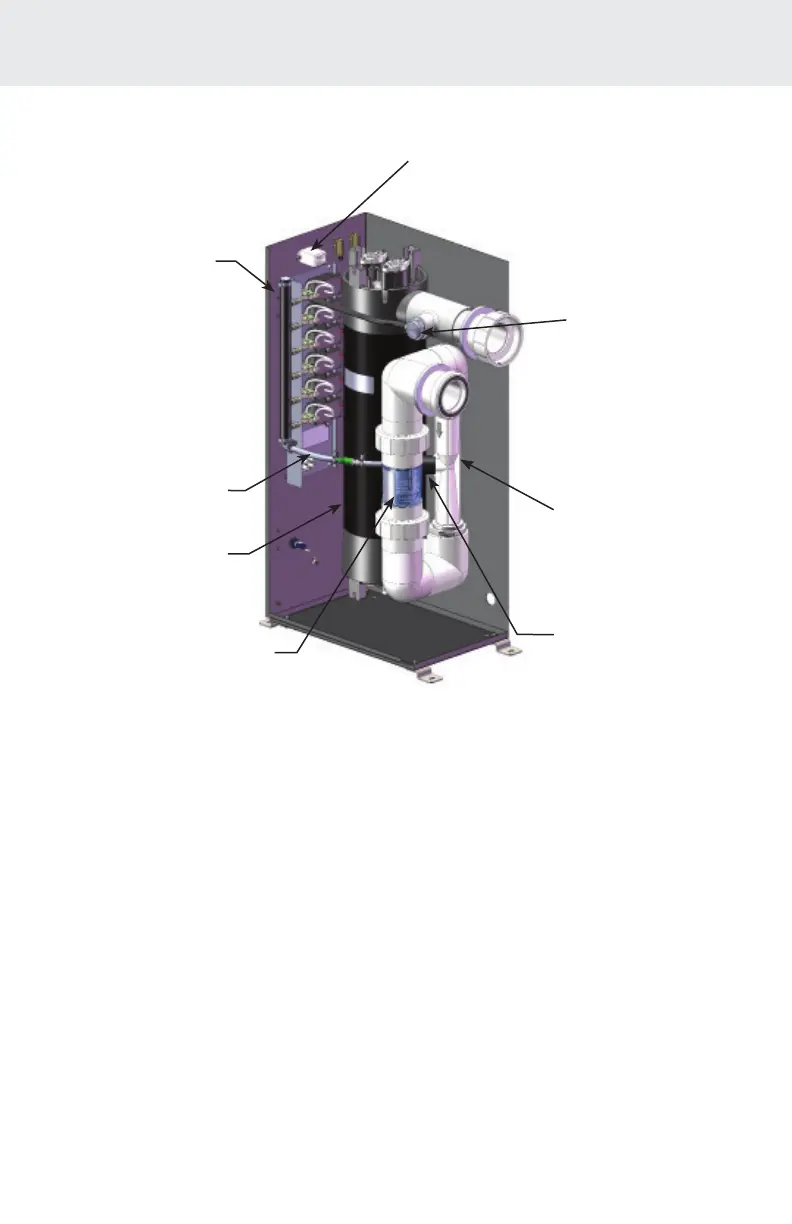

Figure4:DELAOP50Electro-MechanicalOverview
