Section 4 Maintenance & Service
4D.UVReactorServiceandMaintenance
The UV Lamps are housed in a Quartz Tube. If the Quartz Tube
becomes dirty, its ability to transmit UV rays from the Lamp will be
diminished. The Quartz Tube(s) should be removed from the UV
Reactor every six (6) months and cleaned if necessary.
4D-1LampRemoval
1. Locate the UV Lamp Access Panel on the top of the DEL AOP 50,
remove the 4 screws with a Phillips head screwdriver, and remove
the panel.
2. After allowing adequate time for the lamps to cool, disconnect
the Lamp Connectors from Ballast wires.
3. Grasp the UV Lamp wires and gently pull until the top of the UV
Lamp has pulled past the Lamp Retainer tabs.
4. By holding the UV Lamp’s white ceramic end, slowly pull the UV
Lamp until the bottom has pulled past the Lamp Retainer tabs. DO
NOT TOUCH THE UV LAMP GLASS WITH YOUR BARE HANDS.
Oils on your hands can cause hot spots on the UV Lamp and shorten
its life. Use a soft clean cotton cloth or clean cotton gloves to handle
the UV Lamp. Carefully place the UV Lamp in a clean, dry, and safe
location. Repeat this process for the other UV Lamp.

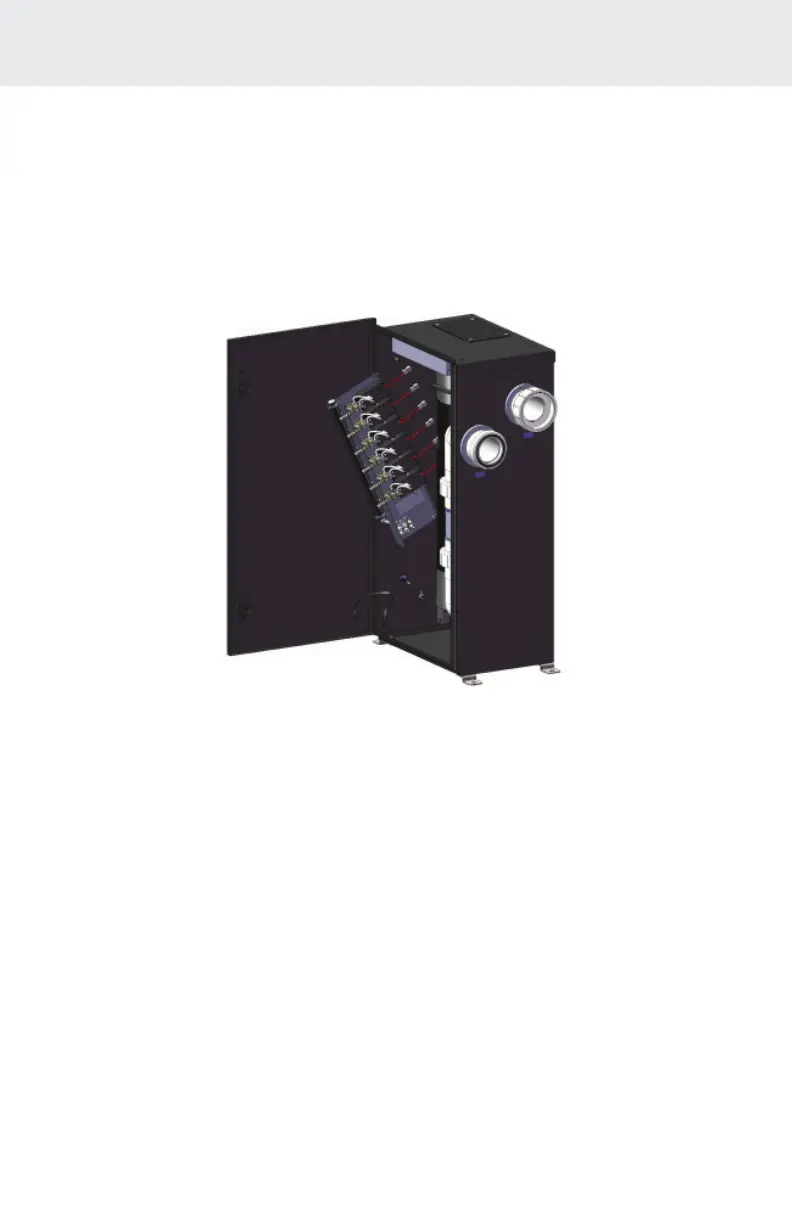

Figure6:OzoneBracketDuringOzoneModuleService
