Section 2 Installation
2E. Plumbing
The DEL AOP 50 can easily be added into the pool’s plumbing loop.
All the components are contained inside the enclosure so only the
water inlet and outlet need to be installed into the pool’s return line.
2E-1.PlumbingtheDELAOP50
The DEL AOP 50 must be installed in the pool’s main return line after
all other pool equipment (pump, lter, heater, and cleaner). The outlet
of the SEC (or MDV-100) must be at least 10 feet from the rst return
to the pool. Figure 3 shows the most basic installation. For installation
with additional sanitizers and pool cleaners, refer to Appendix A.
The DEL AOP 50 will come with one half of a union tting installed on
Inlet and Outlet, the other half of the ttings will be located in the DEL
AOP 50 parts bag. Use the union ttings provided to connect the DEL
AOP 50 inlet and outlet to your pool’s plumbing as shown in Figure 3.

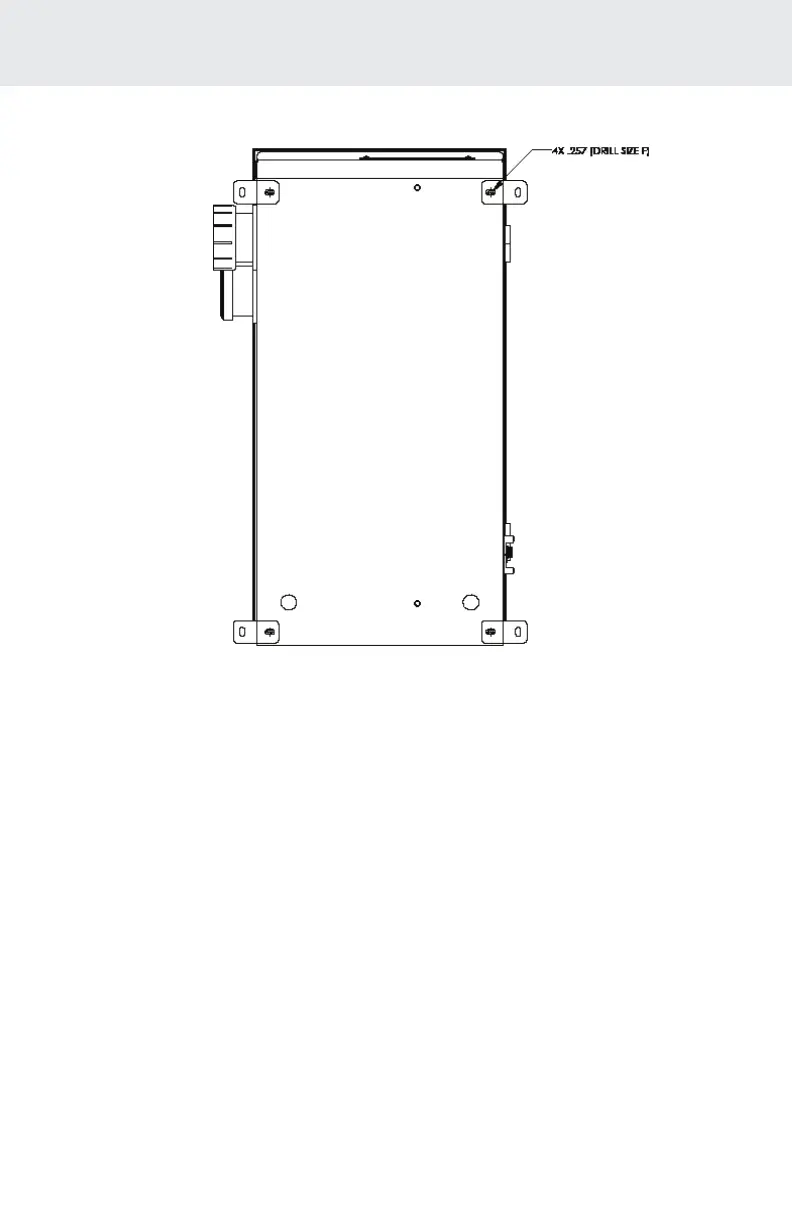

Figure2:WallMountingHolePattern
