Congratulations on your purchase of the Wireless TROLLMaster PRO3+. This
addition to the TROLLMaster lineup will allow you to control both your trolling
speed and direction from anywhere in the boat.

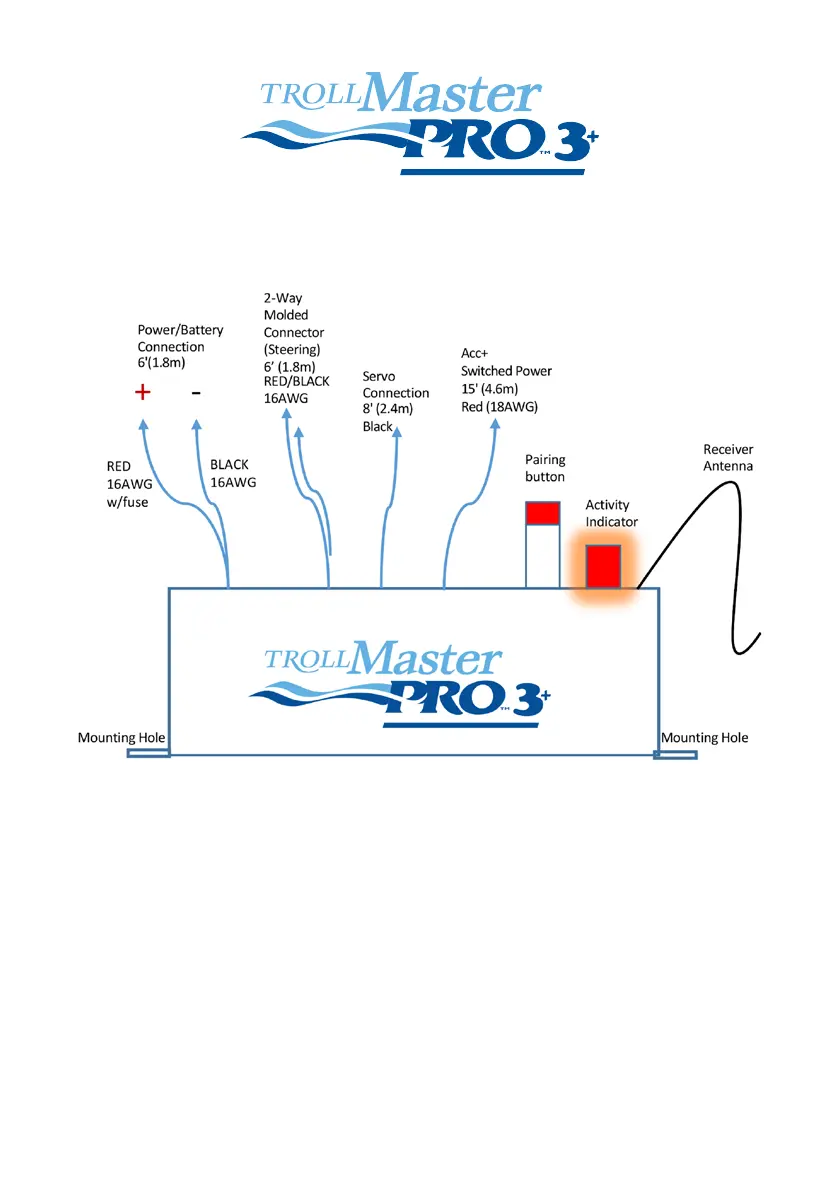

CONNECTIONS
Power/Battery Connection 6’ (1.8m) Red, 6’ (1.8m) Black
Connect the red 16AWG to positive 12V battery terminal. Connect the black
16AWG to negative 12V battery terminal.
ACC+ Switched Power 15’ (4.6m) Red
Connect red 18AWG wire to switched accessory power at helm station.
2 Way Molded Connector 6’ (1.8m)
This connection is used to attach a Panther Electro Steer unit. Push the molded
connector to the corresponding connector on the Electro Steer unit until it is
snug and both ends of the connector meet.
